Component Locations and Identification

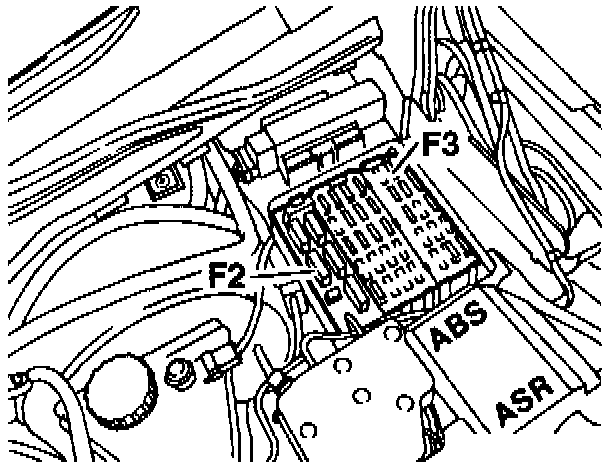

Figure 1:

F3 Fuse box (35-fuse, in fuse and relay box F1)

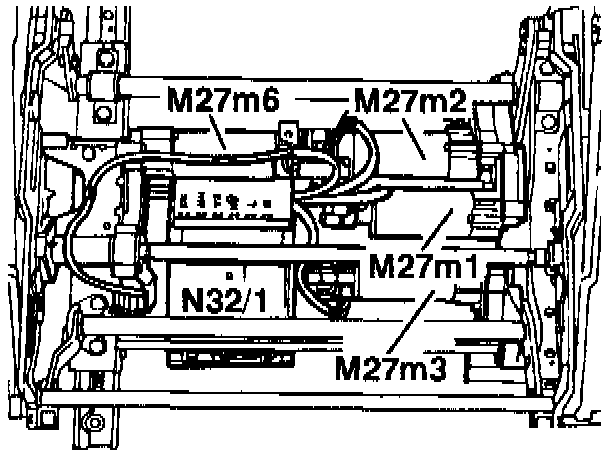

Figure 2:

M27m1 Fore/aft motor
M27m2 Rear raise/lower motor
M27m3 Front raise/lower motor
M27m6 Seat cushion fore/aft motor
N32/1 Left front power seat control module (with memory)

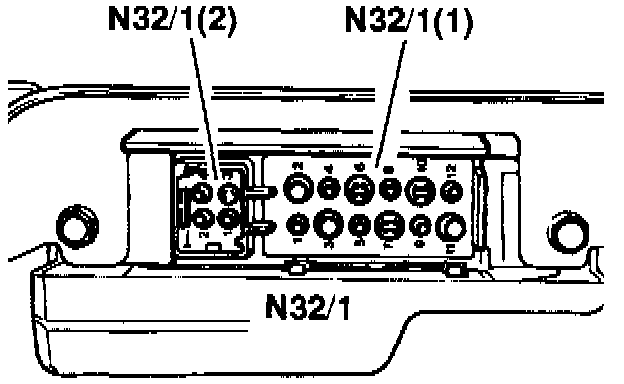

Figure 3:

N32/1 Left front power seat control module (with memory)
1 Connector
2 Connector

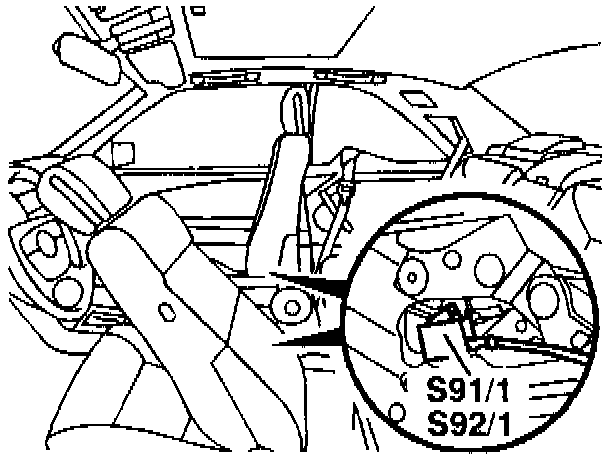

Figure 4 (Coupe Only, If Applicable):

Coupe only (if applicable)
S91/1 Left front seat back microswitch
S92/1 Right front seat back microswitch
