Replacement of Folding Arm Rest For Rear Seat System

Preliminary work:
Rear seat and rear backrests removed. Rear Seat and Rear Backrest

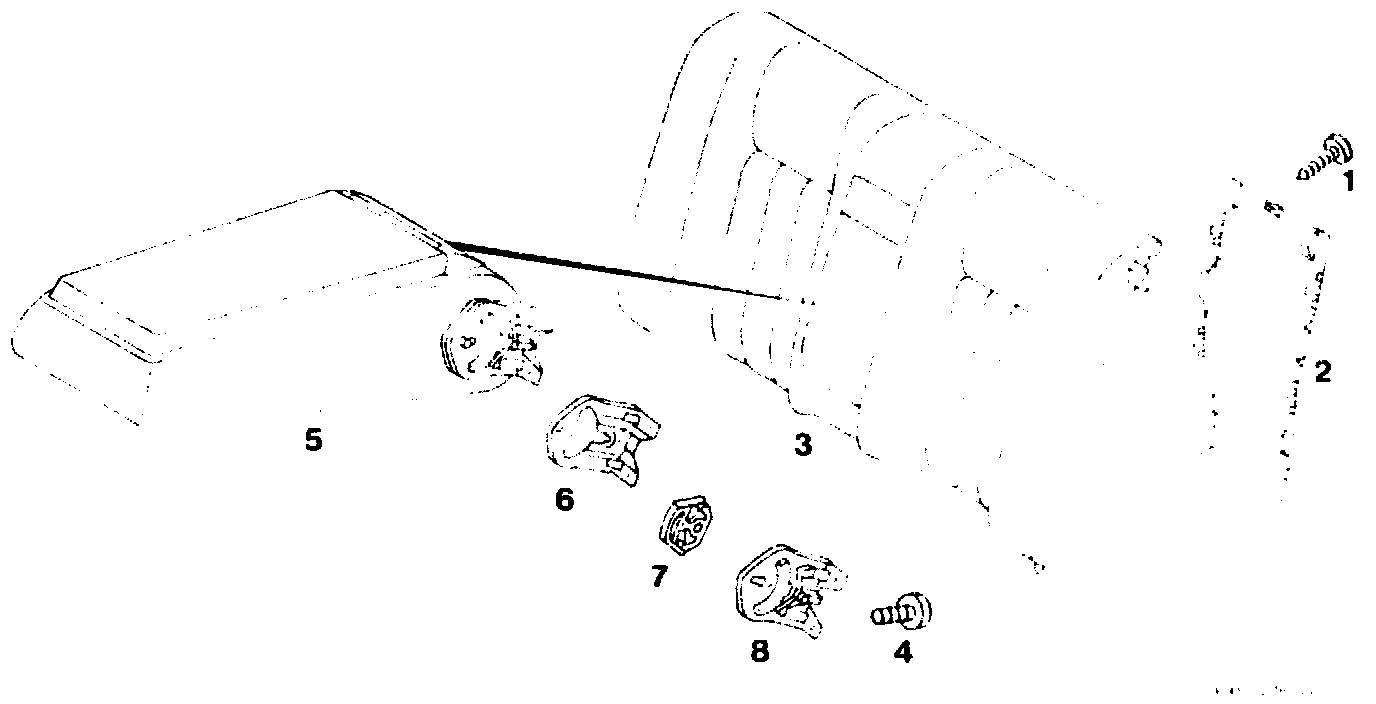

Rear backrest (3)
lay down with front side on a suitable clean surface.

Screws (1) on the cover (2)
screw out (5 each).

Cover (2) on backrest frame
unclip and remove.

Screws (4) on backrest frame (3)
screw out (4 each), 10 Nm.

Arm rest (5)
remove from backrest frame (3) to the rear.

Reinstall
in opposite order
