Rear Individual Seat System (Buckets)

Both front seats
move forward.

Front seat backrest
place in the completely flat position and front rear seat cushions upwards.

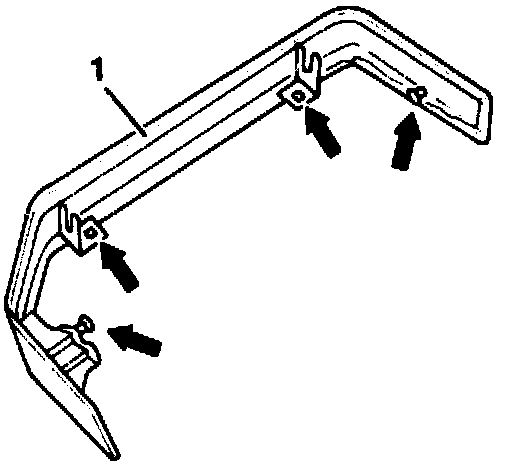

Screws (arrows)
unscrew from the lining (1) (2 pieces, WAF 8).

Front lining (1)
tilt downwards and remove forwards.

Screws (arrows)
unscrew from front seat cushion (2 pieces, WAF 10).

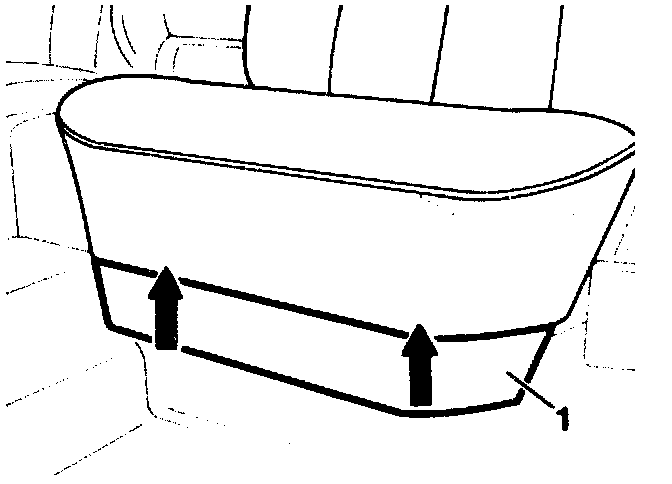

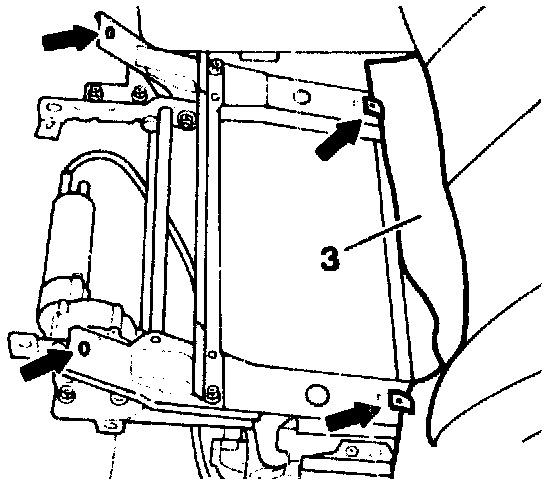

Seat cushions
remove forwards from seat frame whilst driving out to the rear with the two brackets.

Screws (arrows)
unscrew from the rear seat backrest (4) (4 pieces, WAF 10).

Rear seat backrest (4)
place in the upright position using operating switch.

Cover (2)
press out upwards from the lock on the head restraint clip and remove forwards.

Electric connector
separate from head restraint drive

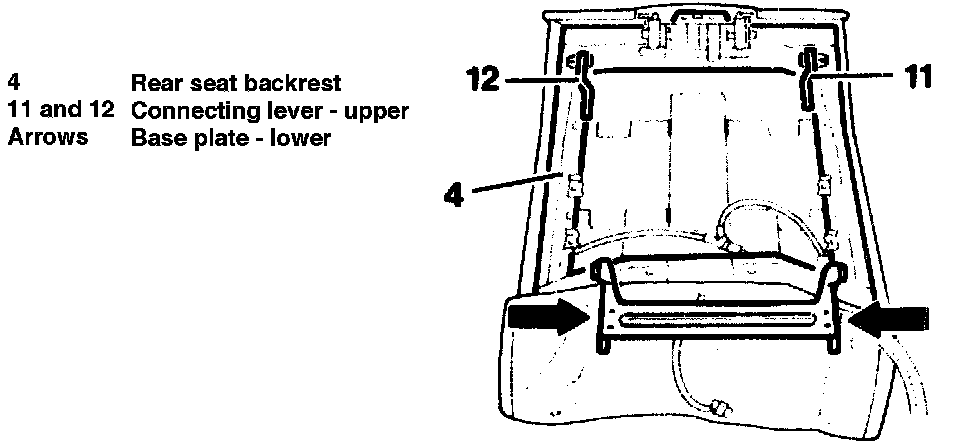

Nuts (6 and 7)
unscrew from the connecting linkage (10) of the upper backrest adjusting gear (14) (2 pieces), then press out threaded bolt (8 and 9) and remove.

Cable strap (arrow, for item 17)
open.

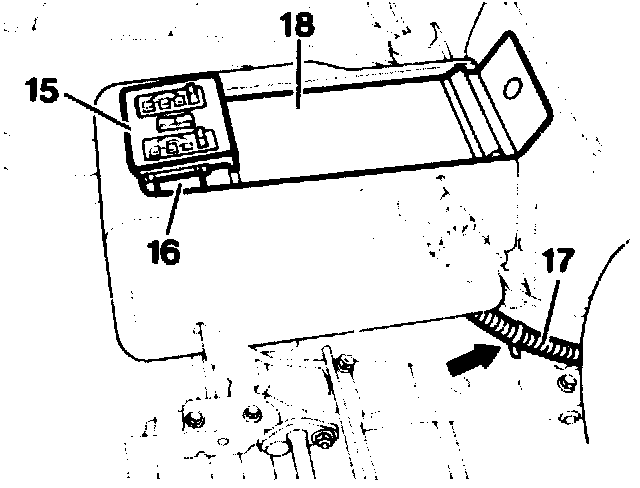

Wooden surround (15) on storage box (18)
push rearwards approx. 6 mm and then lift out upwards.

Plug connector (16)
detach from operating switch.

Cable (17) for multi-contour backrest
remove from storage box (18).

Rear seat backrest (4)
remove.

Install in opposite order
follow installation note!

Installation note

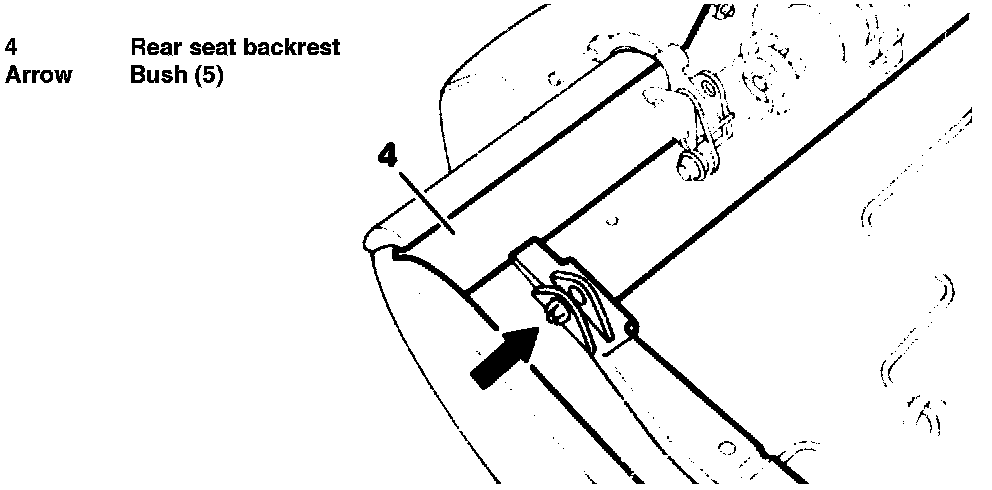

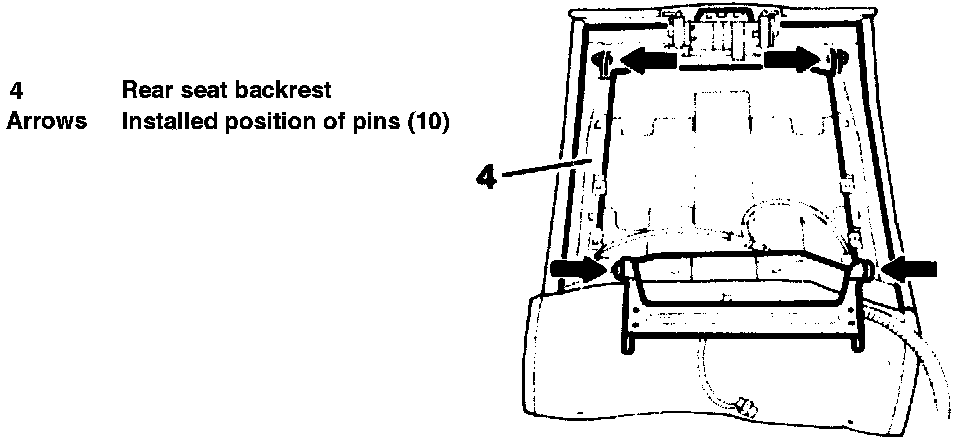

It is essential to replace bush (5) after dismantling pin (10)
