Power Mirror Control Module: Locations

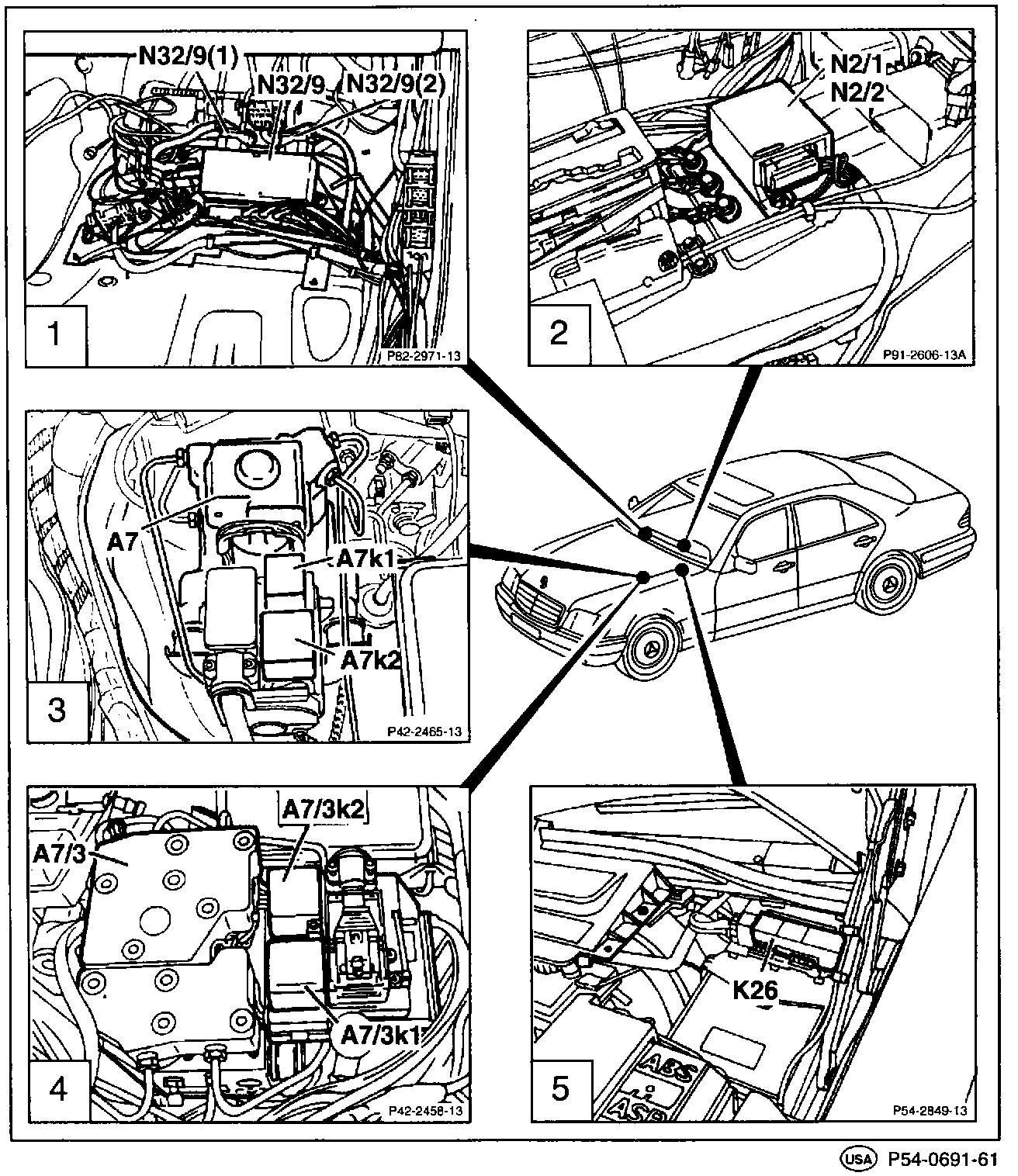

Figures 1 thru 5:

Figure 1
Component Name MSC control module (with memory)
Component ID N32/9

Component ID Component Name

A7 ABS hydraulic unit
A7k1 Solenoid valve relay
A7k2 Return pump/pressure pump relay
A7/3 ASR/ETS/ESP hydraulic unit
A7/3k1 Solenoid valve relay
A7/3k2 High-pressure/return pump relay
K26 Wiper system relay module
N2/1 ETR control module
N2/2 SRS control module
N32/9 MSC control module (with memory)
