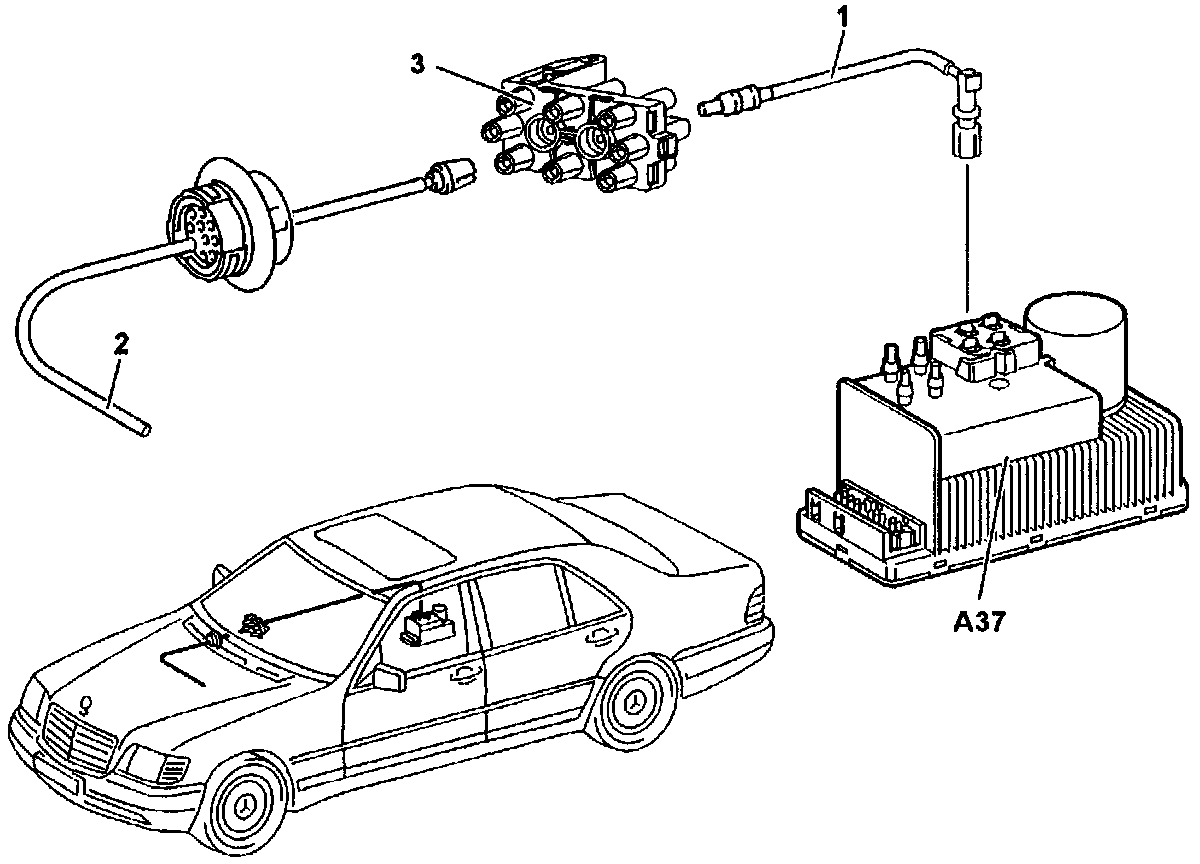

Component Locations - Section 31



Sedan Shown





A37 PSE control module, combined functions
1 Pneumatic line, MVA, frame floor
2 Pneumatic line, MVA, engine compartment
3 Pneumatic distributor connector
