Replacing Clip For Holding Rear Make-Up Mirror

Make-up mirror
fold open, fold closed.

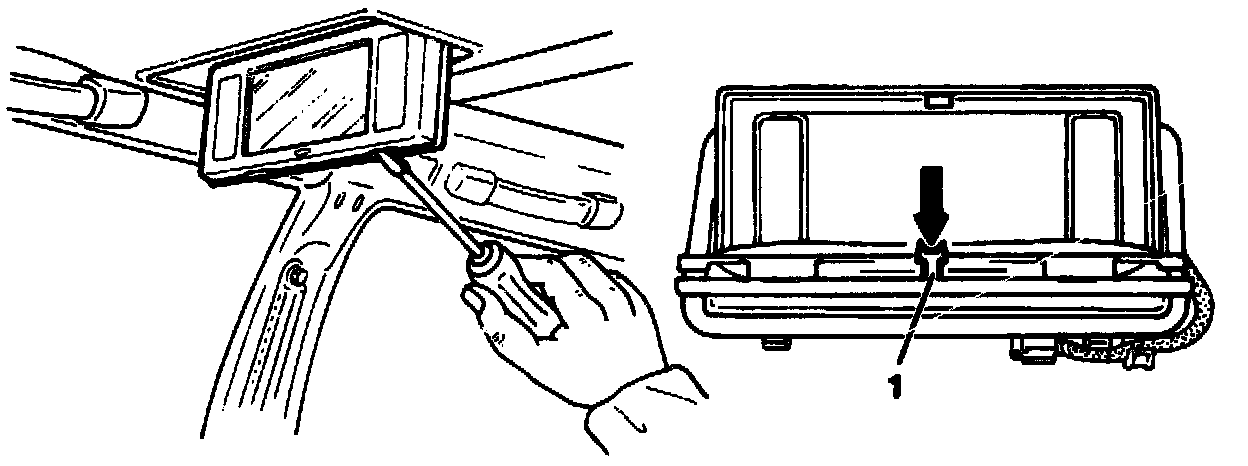

Mirror housing
open with screwdriver, close.
Retaining clip (1)
unclip downward, clip into place.


NOTE: The catches of the retaining clip (1) may be bent! For this reason, lock the retaining clip (1) before closing the mirror housing (arrow). After closing, release the clip again so that it is not damaged when the make-up mirror is folded up. To do this, press clip in the middle with a small screwdriver or pin.
