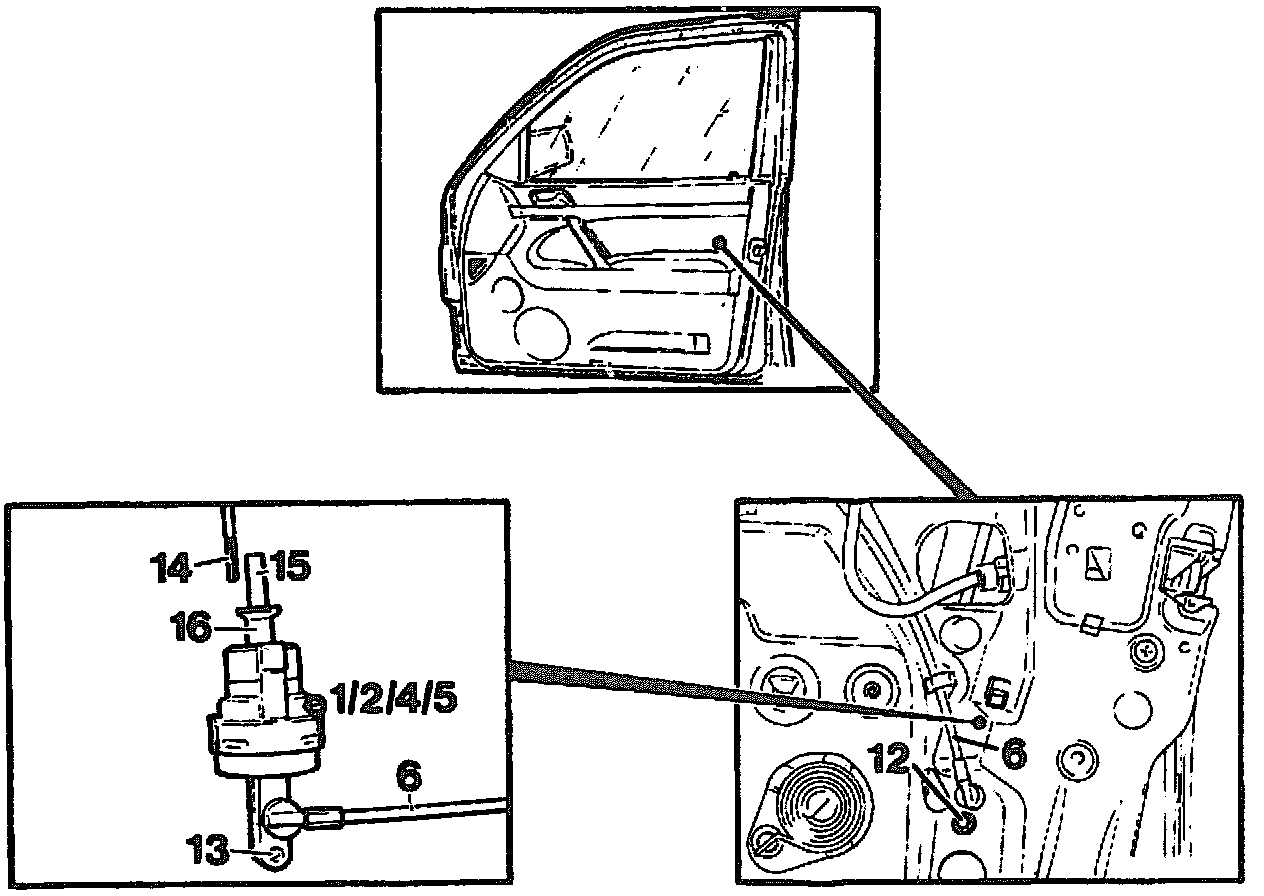

Remove/Install Actuator in Front Door

Door trim panel
Remove. Removal and Replacement

Pneumatic line (6)
Lever off.

Sliding sleeve (16)
Push back.

Shift rod (14)
Press out.

Bolt (12)
Unscrew and remove.

Actuator
Unhook.

Actuator
Check pneumatic function. Testing and Inspection

Actuator
Move to installation position.
Push sliding sleeve (16) fully back and pull out shift rod retainer (15) until it locks.

Actuator
Install in the reverse sequence.
