Automatic Transmission

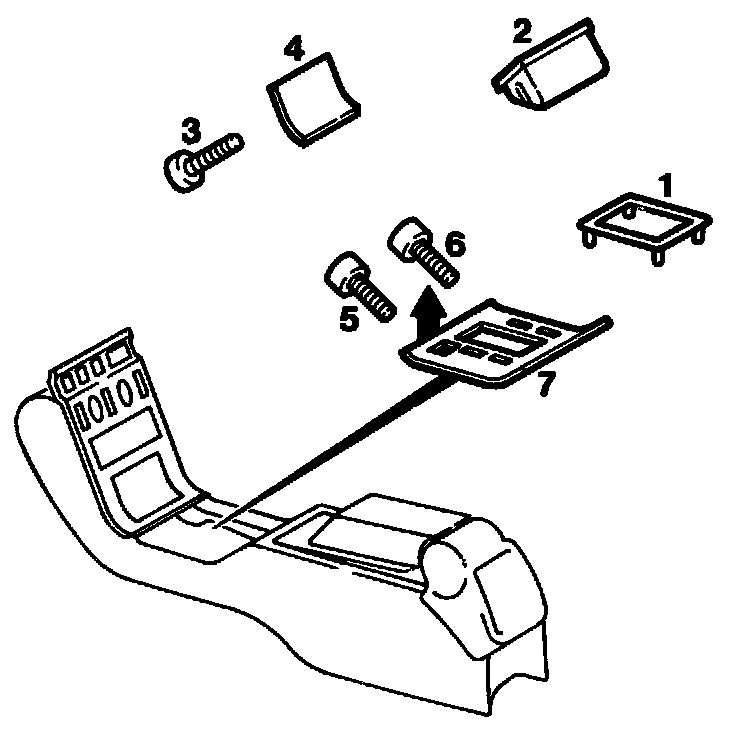

Frame (1) on selector lever console
press up and out with plastic wedge.
Ashtray housing
open.
Ashtray insert (2)
remove.
Screw (3) in ashtray housing
loosen with offset screwdriver.
Wood cover (4)
remove upward.
Screws (5 and 6)
screw out (Allen wrench WAF 4 mm, 2.5 Nm).
Cover (7)
press toward rear and lift at front. Then pry out cover toward front and up.


NOTE: Danger of damage, do not use sharp tools!


Plug connector on switch
disconnect.
Cover (7)
lay down.
Reinstall
in opposite order.

Removal and Installation

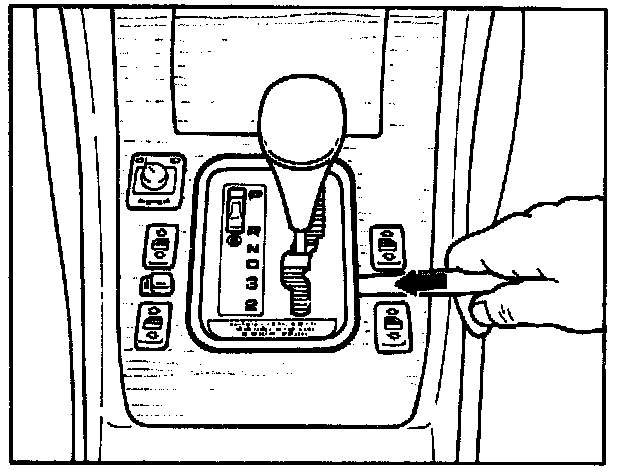

1 Press frame on selector lever console upward and out with plastic wedge
2 Open ashtray housing and remove ashtray insert.

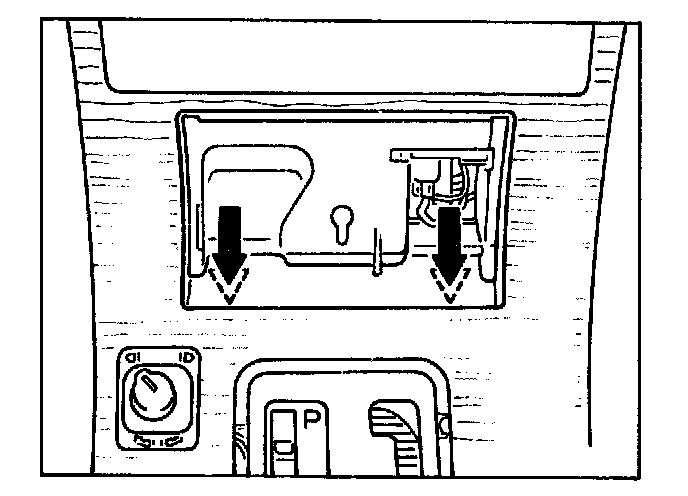

3 Loosen screws (arrow) in ashtray housing with offset screwdriver.

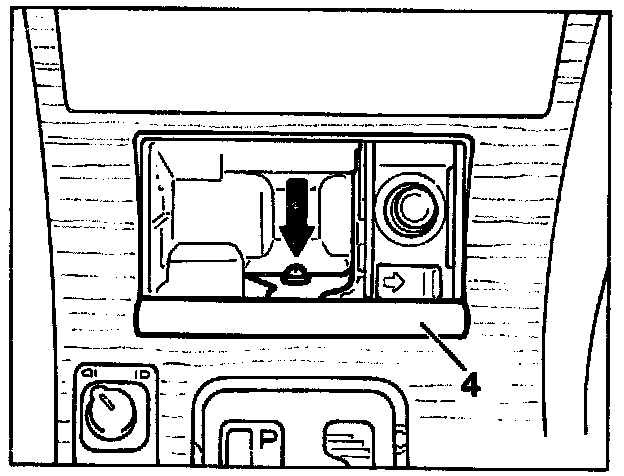

4 Remove wooden cover (4) upward.







5 Screw out screws (arrows), (Allen wrench WAF 4 mm, 2.5 Nm).







6 Press cover toward rear and lift at front. Then pry Out cover toward front and up.


NOTE: Danger of damage, do not use sharp tools!


7 Disconnect plug connector on switch.
8 Reinstall in opposite order.

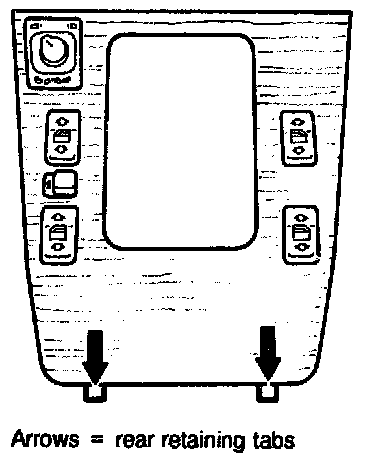

Cover-rear
