Remove/Install Switches In Cover of Center Console

Preliminary work:
Radio removed.
A/C pushbutton control panel removed.






Quiescent current retention unit
disconnect, connect.

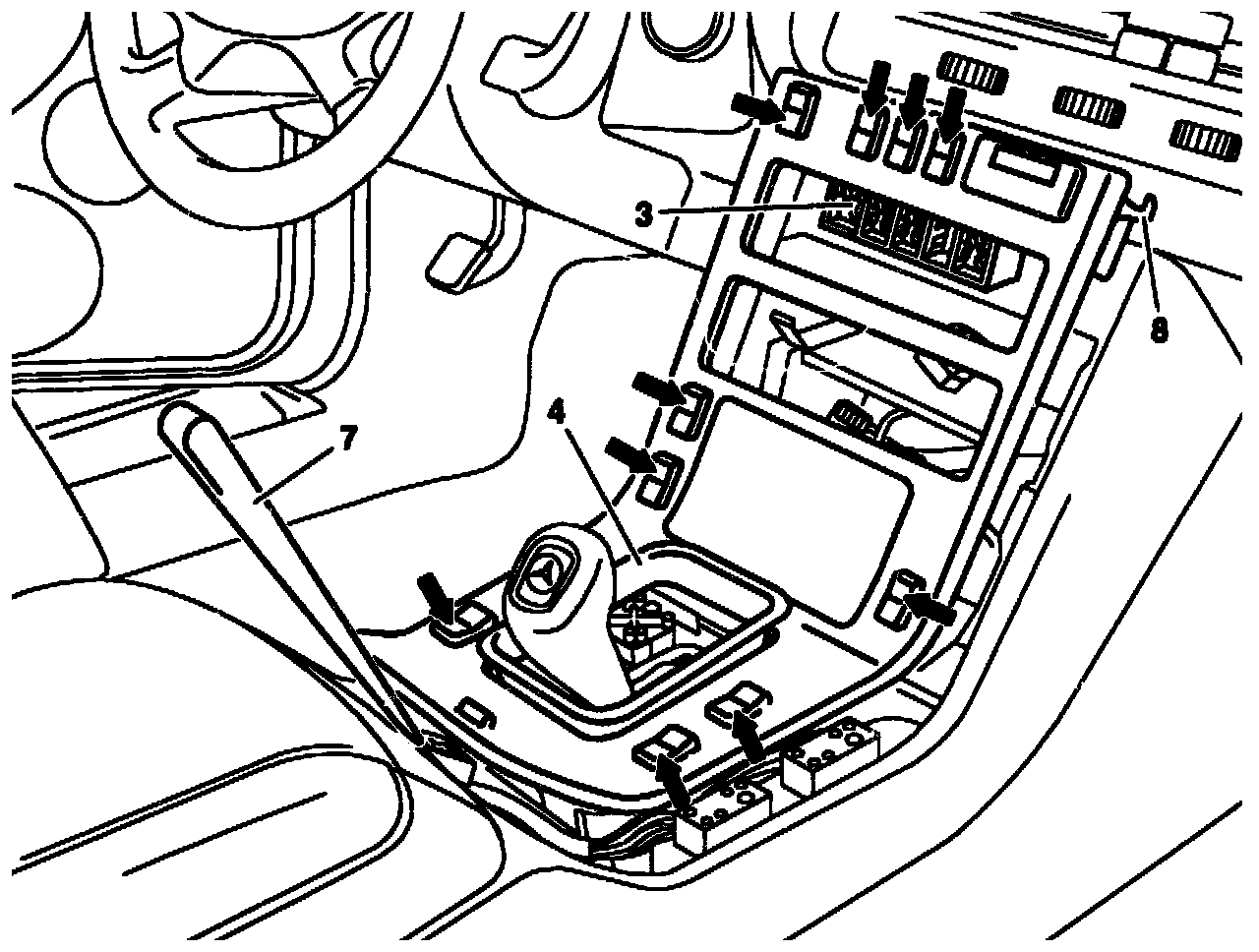

Frame (4) at selector lever
remove, install.

Cover panel (6)
unclip at bottom with plastic wedge (7).

Cover panel
remove from guide lugs (8).

Electrical connections
unplug, plug in.

Switches (arrows)
pull off, plug in.

Switch bracket
unplug, plug in.

Switches (arrows)
pull off, plug in.


Commercially available tester
Quiescent current retention unit e.g. Hans Zeheter CMP 12.2
