Remove/Install Front Floor Covering (Right)

Passenger seat
move all the way back.

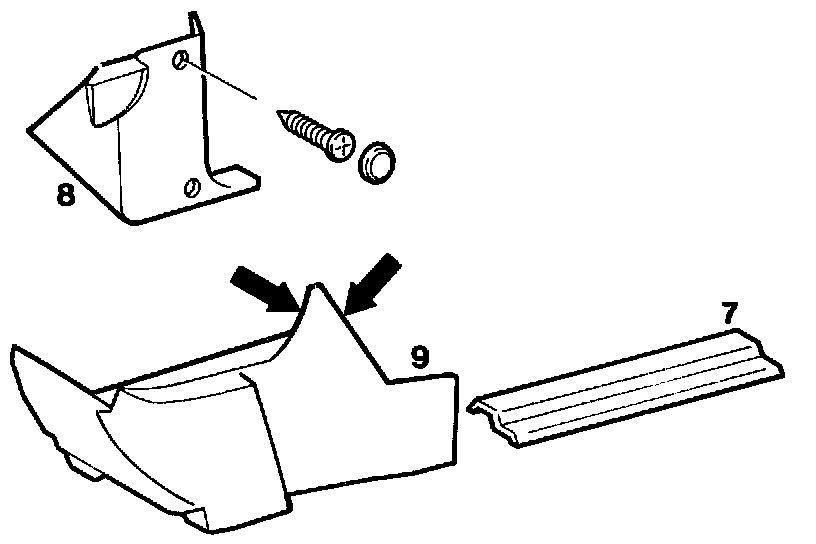

Cover (7) over main frame member
remove.

Panelling (8) in footwell, outside
remove.

Front section of floor covering
fold back.

Floor covering (9) on center console
pull out (arrows) and remove floor covering.

Reinstall
in opposite order.
