Replace Striker Eye on Trunk Lid Power Locking



Preliminary work:
Trunk lid power locking removed. Service and Repair

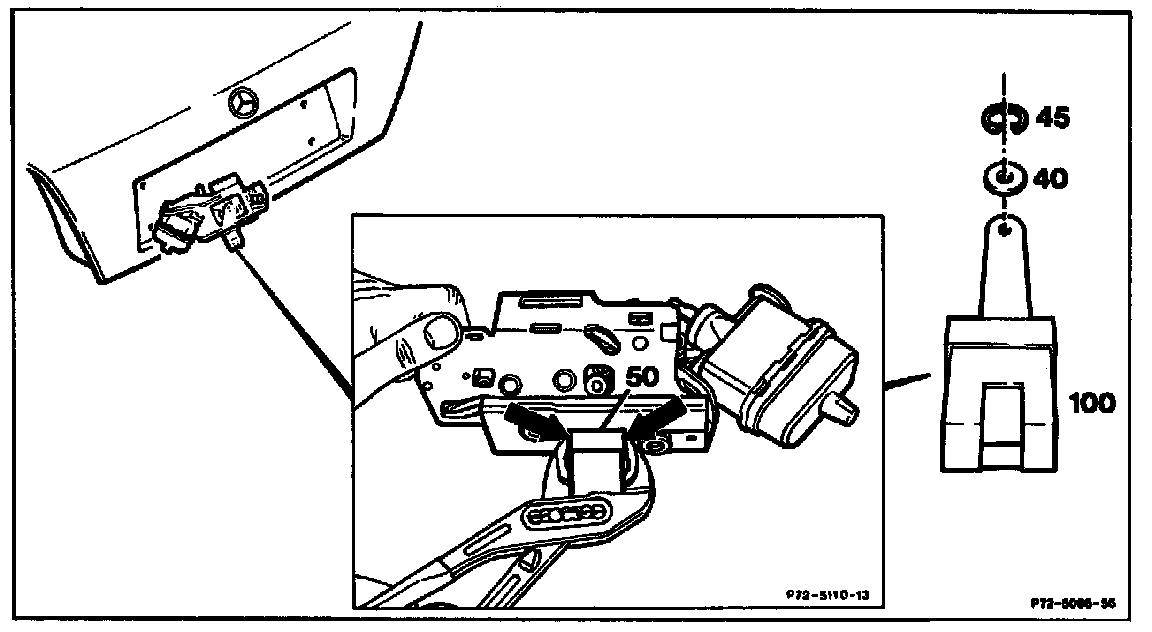

Component Identification:






Snap ring (45)
Remove together with washer (40).
Catch on guide part (50)
Press together (arrows) with water pump pliers and push out toward top.
Striker eye (100)
Unhook and remove downward.
Reinstall in opposite order.
Perform function check.
