Replacing Trunk Lid Remote Control Actuator

A. Sedan

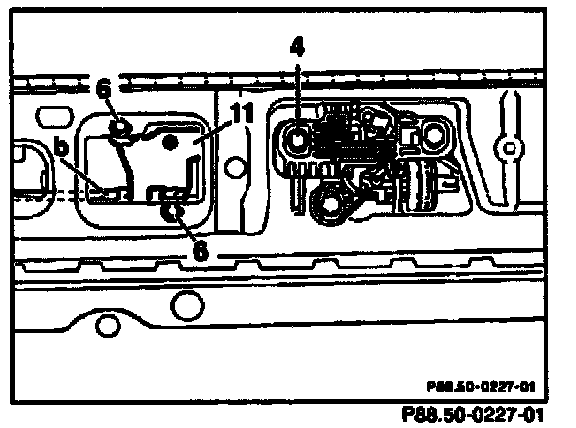

Component Identification, Part 1:

Covering on rear center piece
Remove, install.
Right light strip
Remove, install.
Trunk lid lock
Remove, install.
Screws (6)
Unscrew, screw in.
Pneumatic line (b)
Disconnect, reconnect.
Lock control with mounting plate (11)
Remove from rear center piece, install.
Reinstall
In opposite order.
Check function
Of trunk lid remote control.



B. Coupe

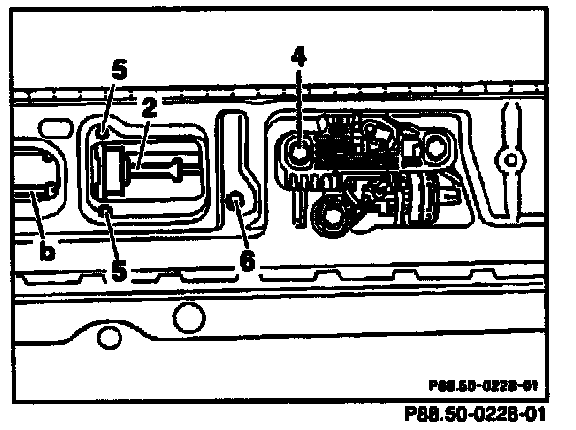

Component Identification, Part 2:

Covering on rear center piece
Remove, install.
Trunk lid lock
Remove, install.
Screw (6) and screws (5)
Unscrew, screw in.
Pneumatic line (b)
Disconnect, reconnect.
Lock control with actuator (2)
Remove from rear center piece, install.
Reinstall
In opposite order.
Check function
Of trunk lid remote control.
