Replacing Pneumatic Actuating Element

Replacing Pneumatic Actuating Element on Trunk Lid Power Locking

Preliminary work:
Trunk lid power locking removed. Service and Repair

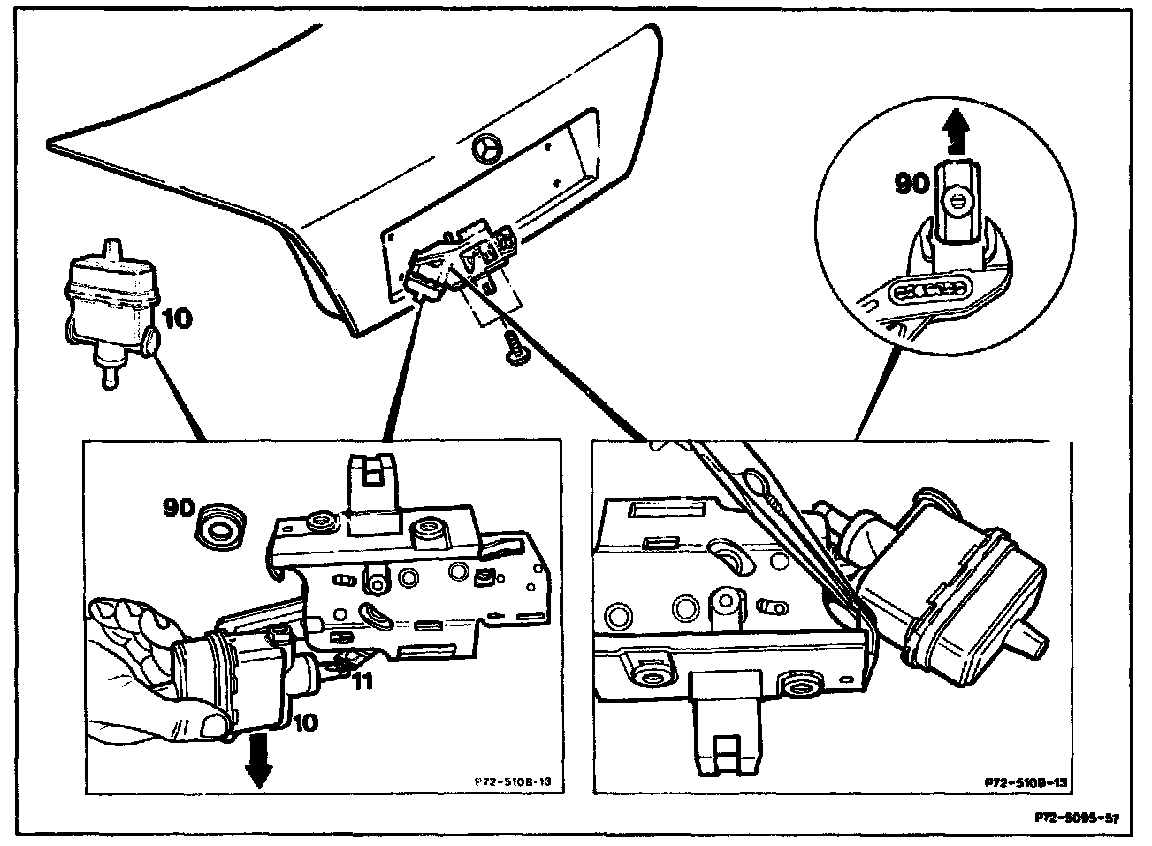

Component Identification:

Locking part (90)
Turn with pliers until cut sections are vertical.
Actuating element (10)
Move out upward on one side and remove from mount on opposite side.
Actuating element (10)
Press off on ball head (11).
Reinstall in opposite order.
Perform function check.
