Remove/Install Trunk Lid Actuator

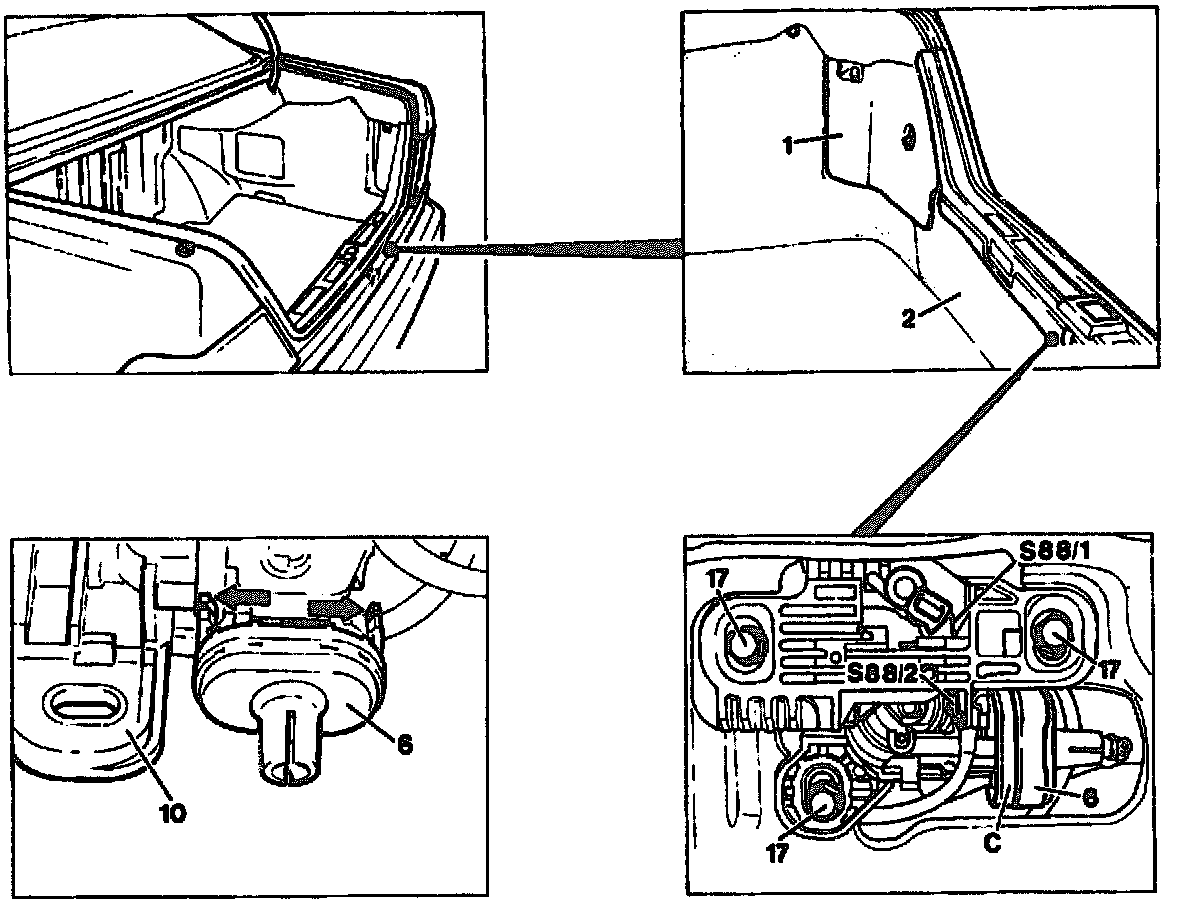

Cover (1) of right and left tail lamps
Open, close.

Covering of rear center assembly (2)
Remove, install.

Electric cables
Disconnect, connect.

Retaining bolts (17) of trunk lid lock
Unscrew, screw on.

Lock (10)
Remove.

Pneumatic line
Lever off with open-end wrench (width across flats 7), press on.

Expand locking clip (arrows) and
Detach, attach pneumatic actuator (6) with control rod.

Actuator (6)
Check pneumatic function. Testing and Inspection

Actuator (6)
Install in reverse sequence.
