Front Door Window Glass: Service and Repair

Preliminary work:
Door liner removed. Removal and Replacement
Exterior mirror removed.
Exterior molding with sealing bar on belt line removed.

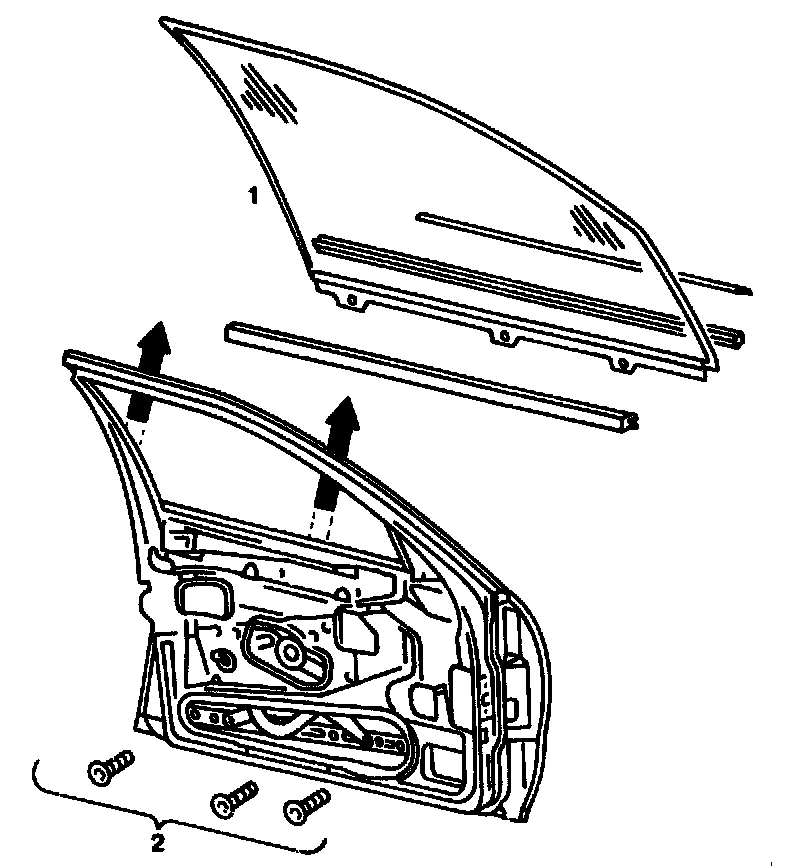

Crank window (1)
open until screws (2) on window lift bar are accessible through installation opening at bottom.

Screws (2) on window lift bar
screw out (3 each), use Torx wrench attachment T30.

Crank window (1)
remove upward out of door shaft while tipping window toward front.

Crank window (1)
insert into door shaft from outside while tipping window toward front, guide into window guide channels at front and rear and insert into mounting hooks on window lift bar.

Screw (2)
on window lift bar, screw in and tighten hand-tight.

Sealing channels and molding on door shaft
install.

Crank window (1)
close.

Crank window adjustment
check, readjust if required.

Screw (2)
tighten.

Exterior mirror
install.

Form piece
glue onto interior door panel.

Door liner
install.
