Electric Mirror, Steering Column Adj., Heated Mirrors (EMSC)
>>
FT - Function Test
FT - Function Test
Component Locations

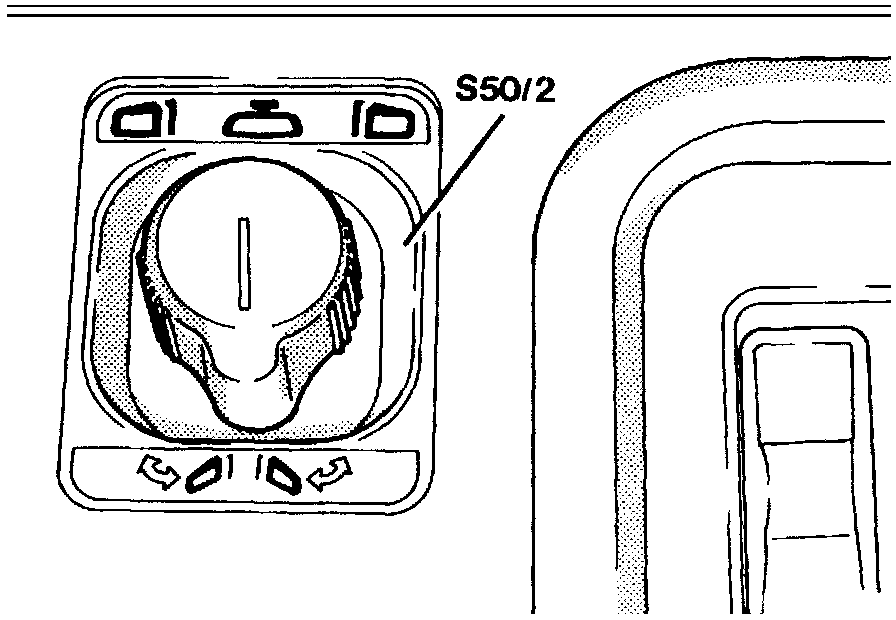

S50/2
Outside rearview mirror switch

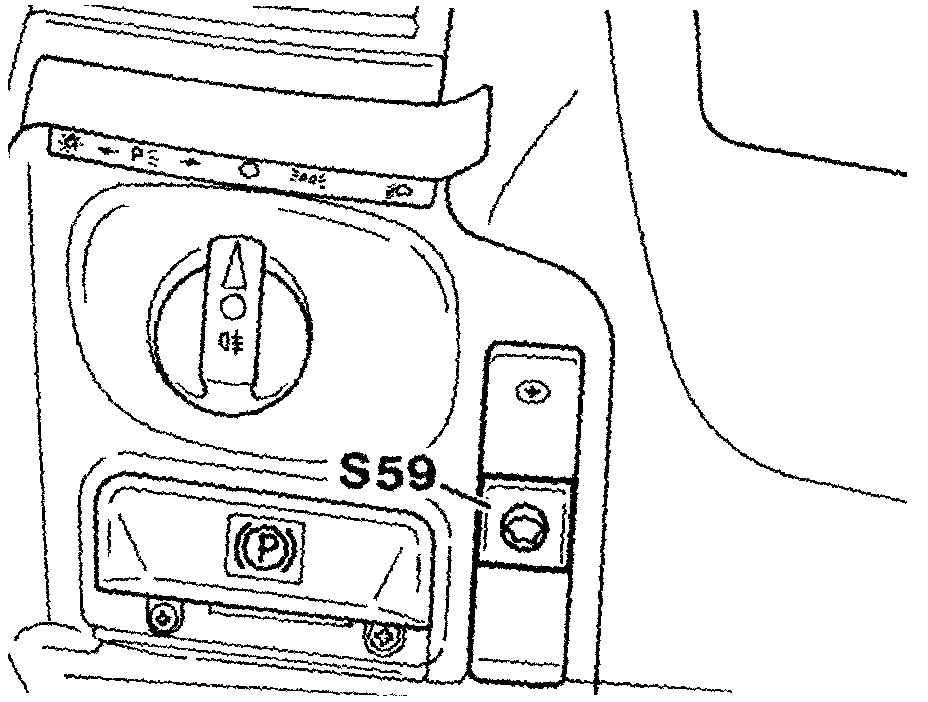

S59
Adjustable steering column switch

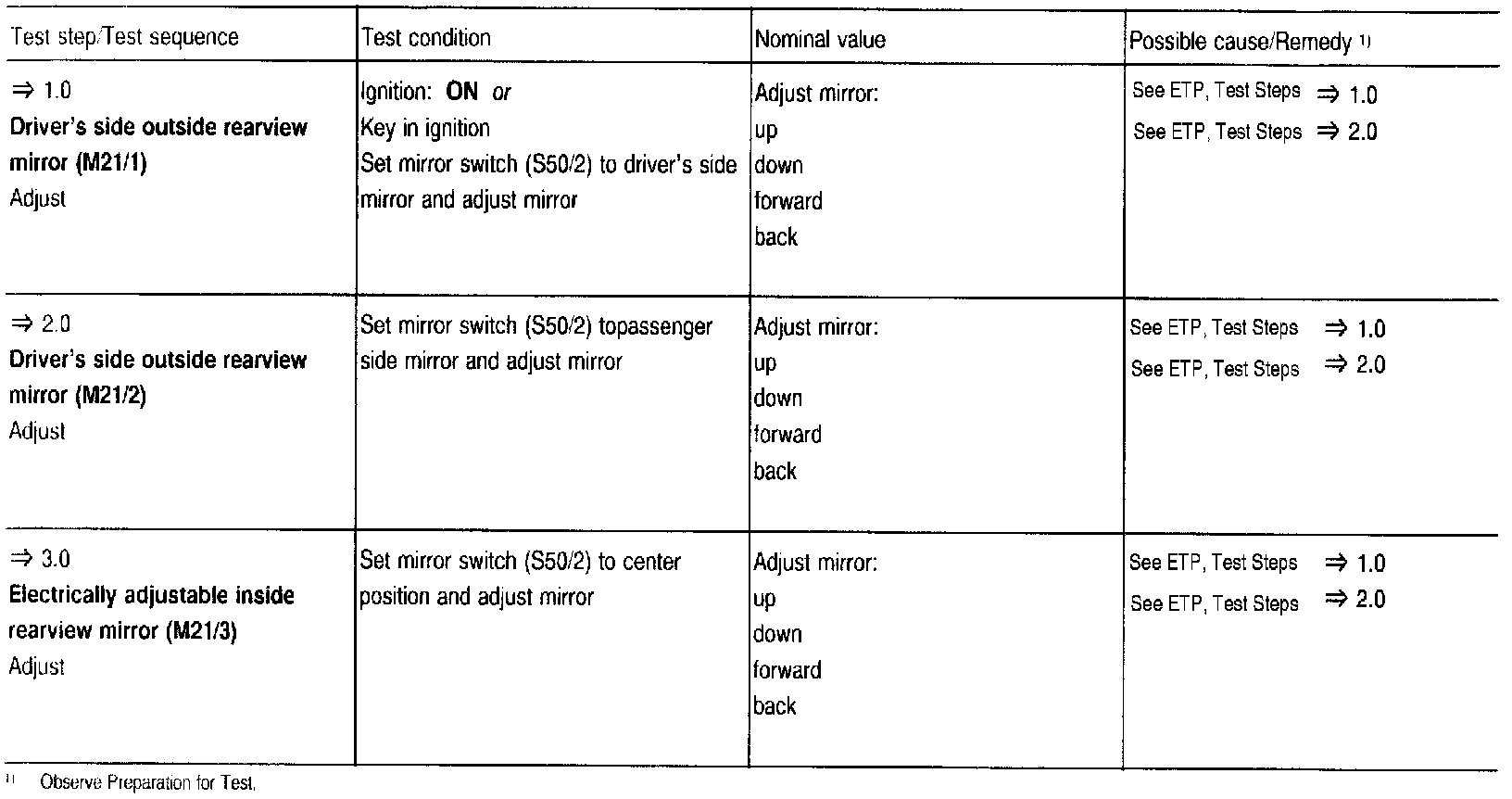

Test Steps 1.0 - 3.0:

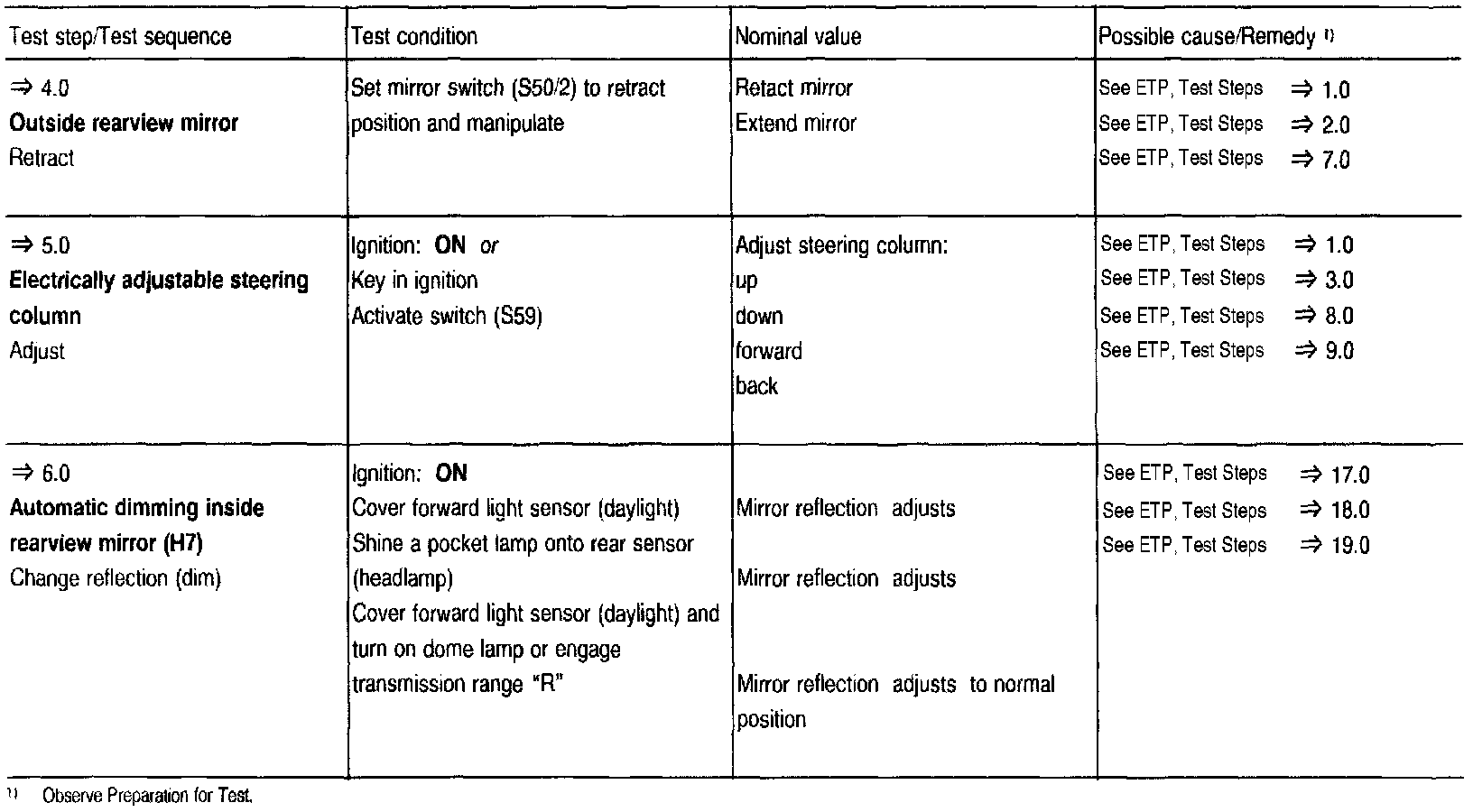

Test Steps 4.0 - 6.0:
