Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Electric Mirror, Steering Column Adj., Heated Mirrors (EMSC) >> CRDC - Complaint Related Diagnostic Chart

CRDC - Complaint Related Diagnostic Chart

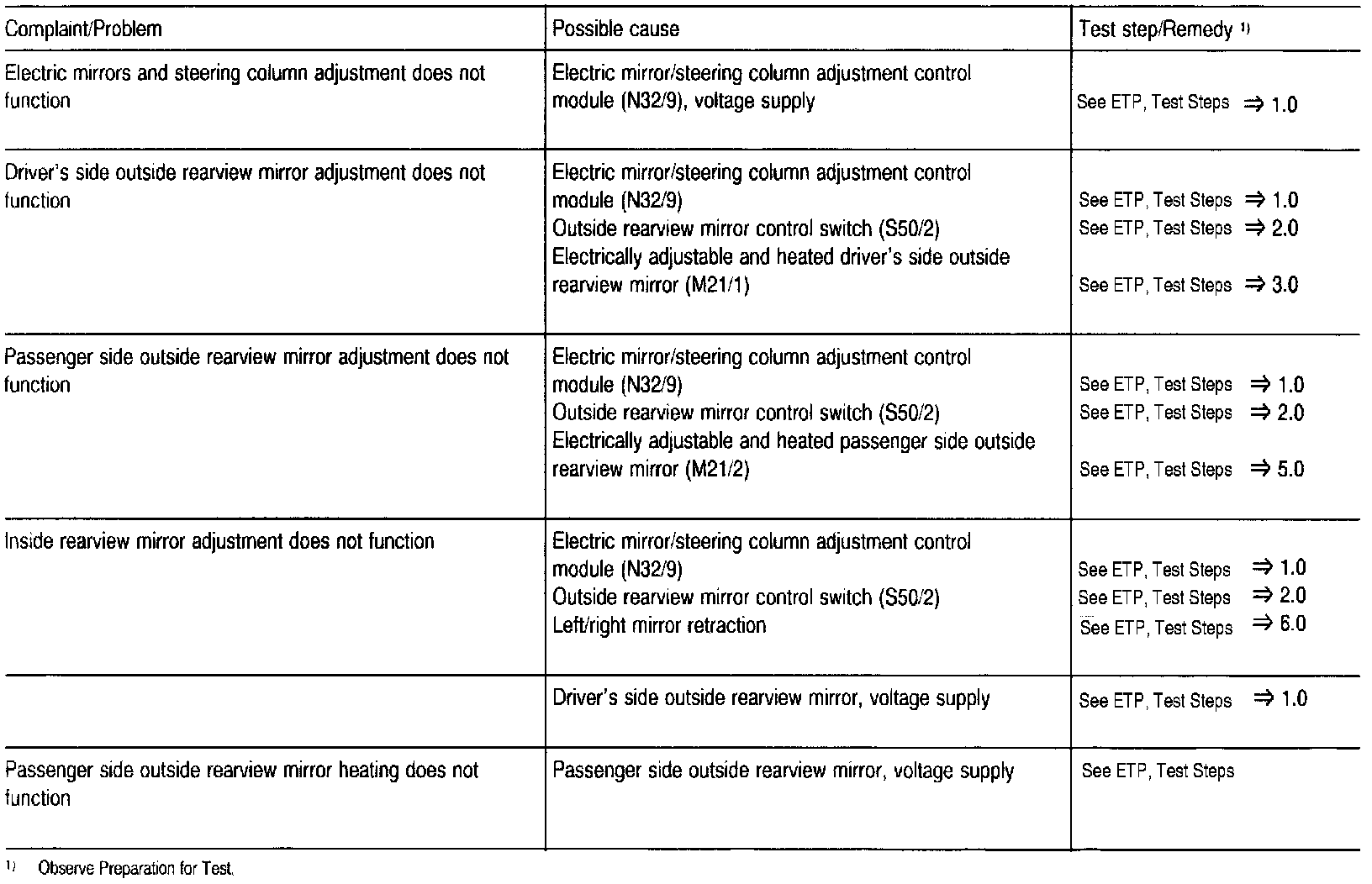

Part 1 of 2:

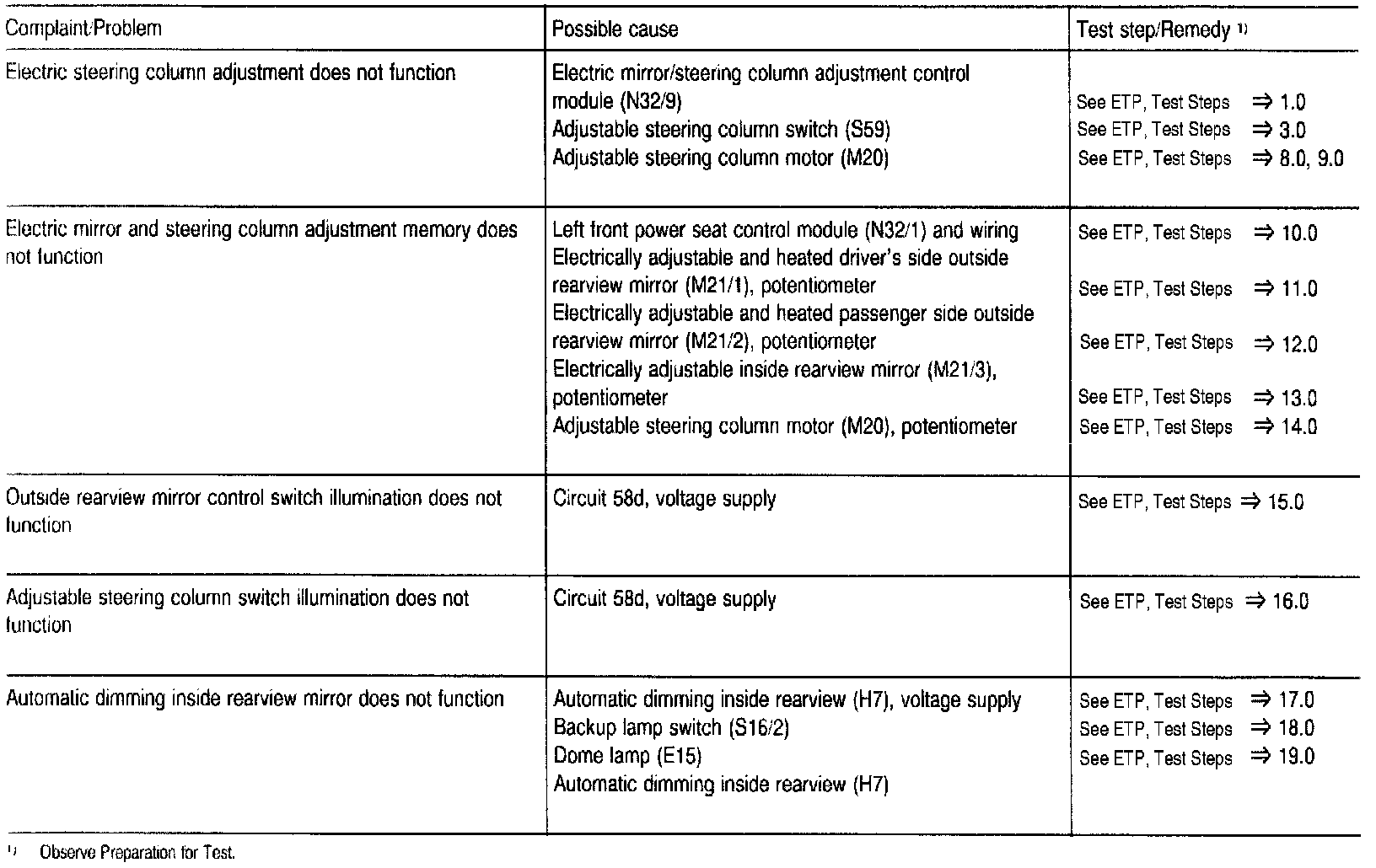

Part 2 of 2:
