Preparation For Test

Preliminary Work:
- Perform Diagnosis, check Diagnostic Trouble Code (DTC) Memory. Diagnostic Trouble Code (DTC) Memory (CF) - Section 12

Preparation for Test:
1. Battery voltage 11-14 V.
2. Check fuse F3-35.
3. Check fuses F4-5, F4-6, F4-11 and F4-14.
4. Disconnect battery ground cable each time the control module (N57) is connected or disconnected (to prevent the storing of erroneous diagnostic trouble codes).
5. Calibrate windows to base position. To do so close the windows with the power window switch (do not use one-touch closing) and hold each button pressed with the window at the stop for 1 - 2 seconds.
6. Electrical wiring diagrams.

Note regarding test connection column:
The letters and numbers in parentheses, for example in -> 2.0 (B.21), mean the following:
B = Connector B
21 = Socket 21 of connector B in wiring diagram.

Equipment:
Multimeter 1) Fluke models 23, 83, 85, 87

1) Available through the MBNA Standard Equipment Program.

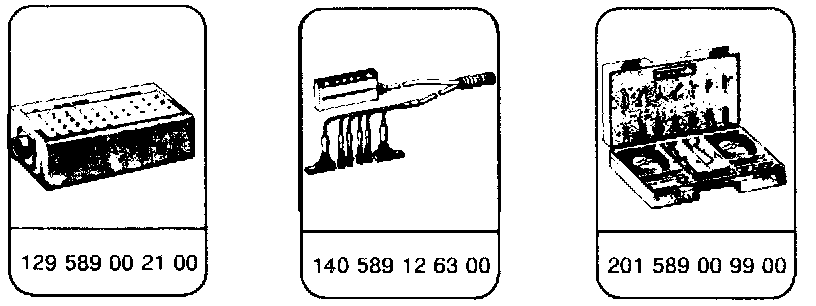

Special Tools

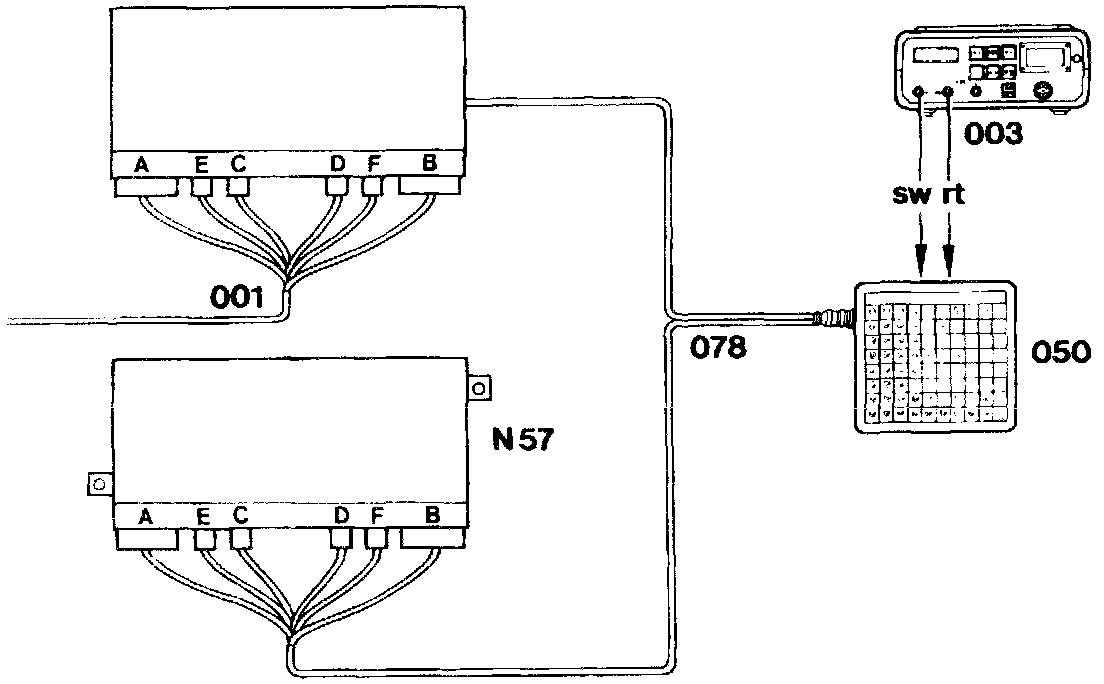

Connection Diagram - Socket Box:
001
003 Multimeter
050 Socket box (126-pole)
078 Test cable (62-pole) 140 589 12 63 00
N57 CF control module
