Component Locations

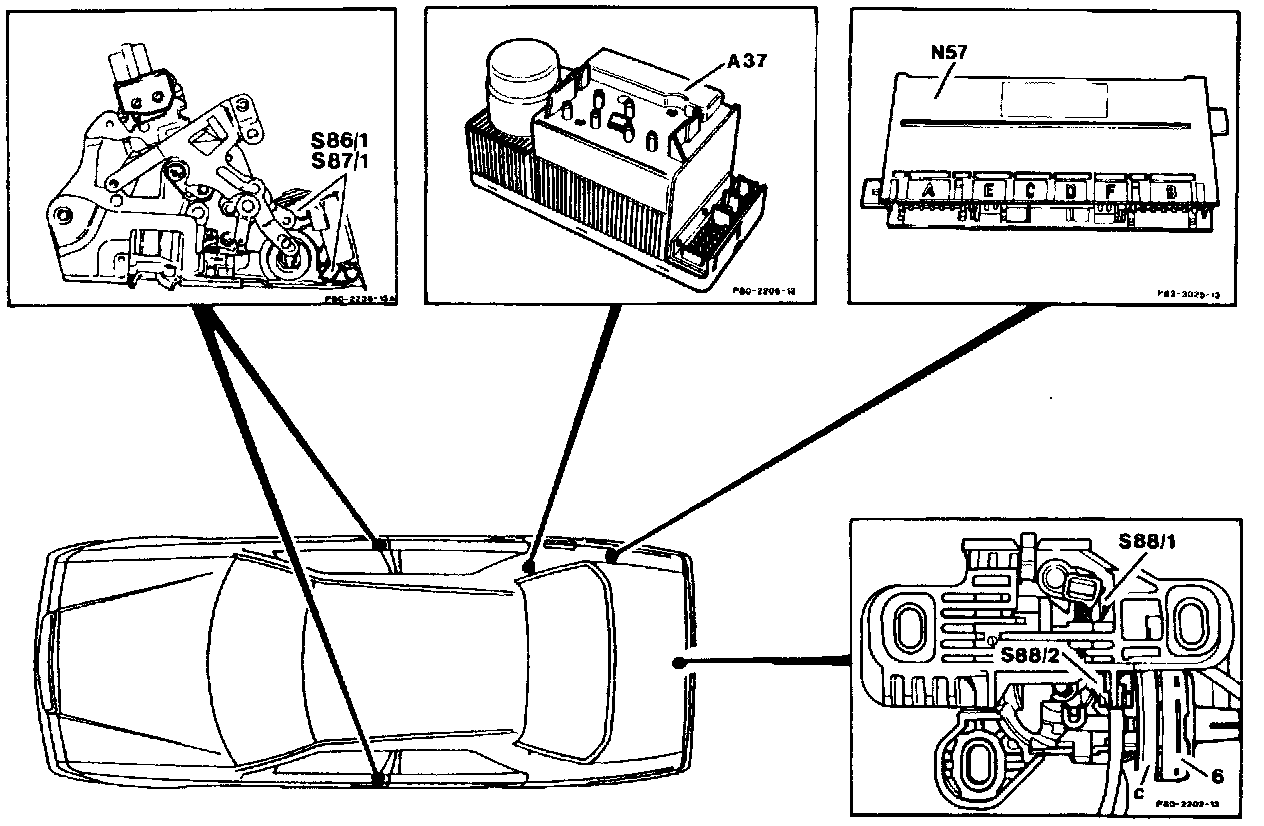

Figure 1:
A37, A37/1 PSE control module
N57 CF control module
586/1 Left front door lock switch
587/1 Right front door lock switch (mirror image of left shown)
588/2 Trunk lid lock switch

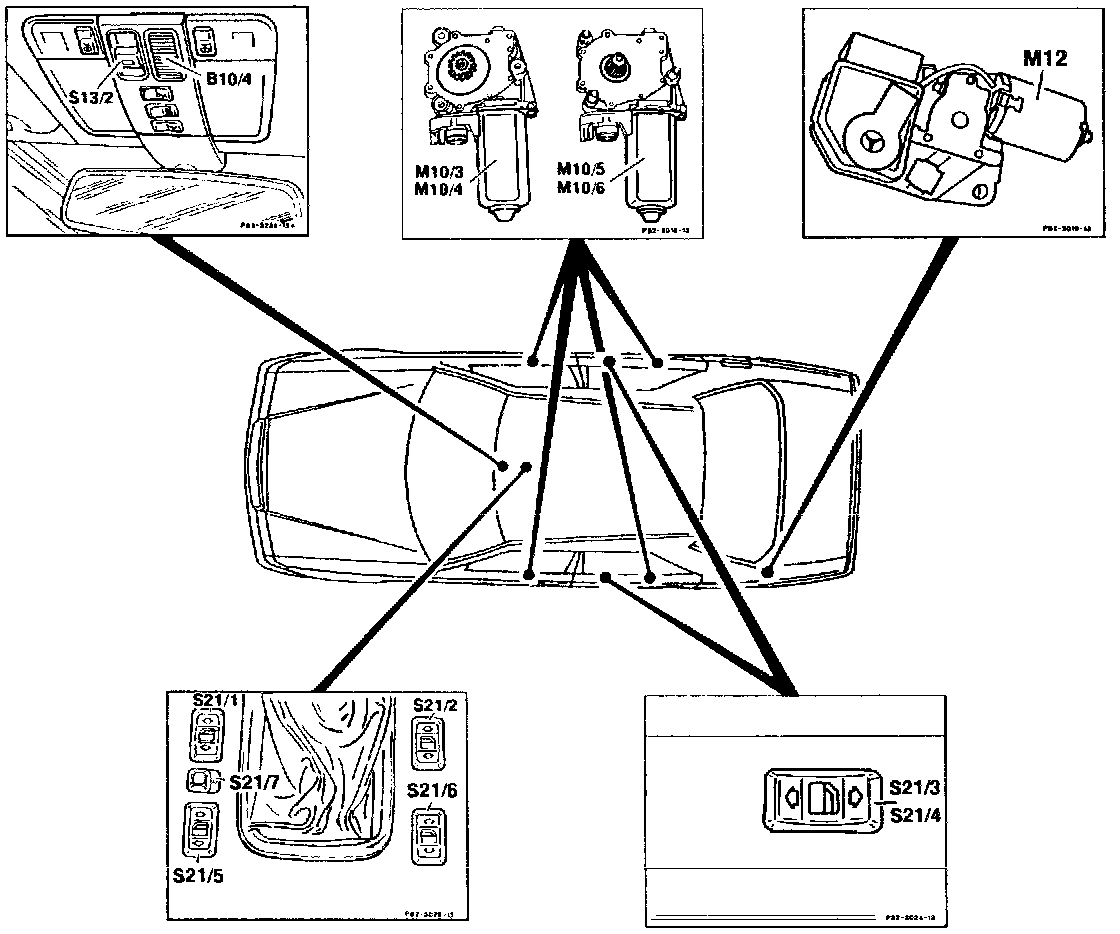

Figure 2:
M10/3 Let front power window motor
M10/4 Right front power window motor
M10/5 Left rear power window motor
M10/6 Right rear power window motor
M12 Sliding/pop-up roof drive assembly
S13/2 Sliding/pop-up roof switch
S21/1 Left front power window switch (center console)
S21/2 Right front power window switch (center console)
S21/3 Left rear power window switch
S21/4 Right rear power window switch
S21/5 Left rear power window switch (center console)
S21/6 Right rear power window switch (center console)
S21/7 Rear power windows safety switch (center console)
