Diagnostic Trouble Code (DTC) Memory (CF) - Section 12

Preparation for Test:
- Check fuse F4-11.
- Check fuse F3-35.
- Connect impulse counter scan tool or Hand-Held Tester (HHT) to 38-pole data link connector (X11/4) according to connection diagram shown in section 0.
- Electrical wiring diagrams

NOTE: Connect yellow wire of impulse counter scan tool to socket 31.

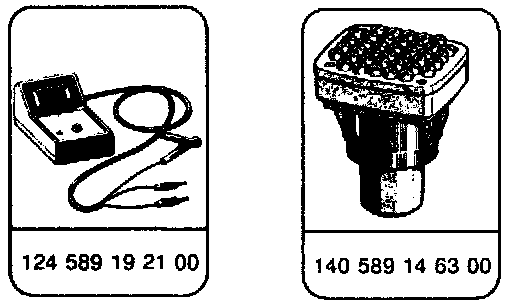

Special Tools

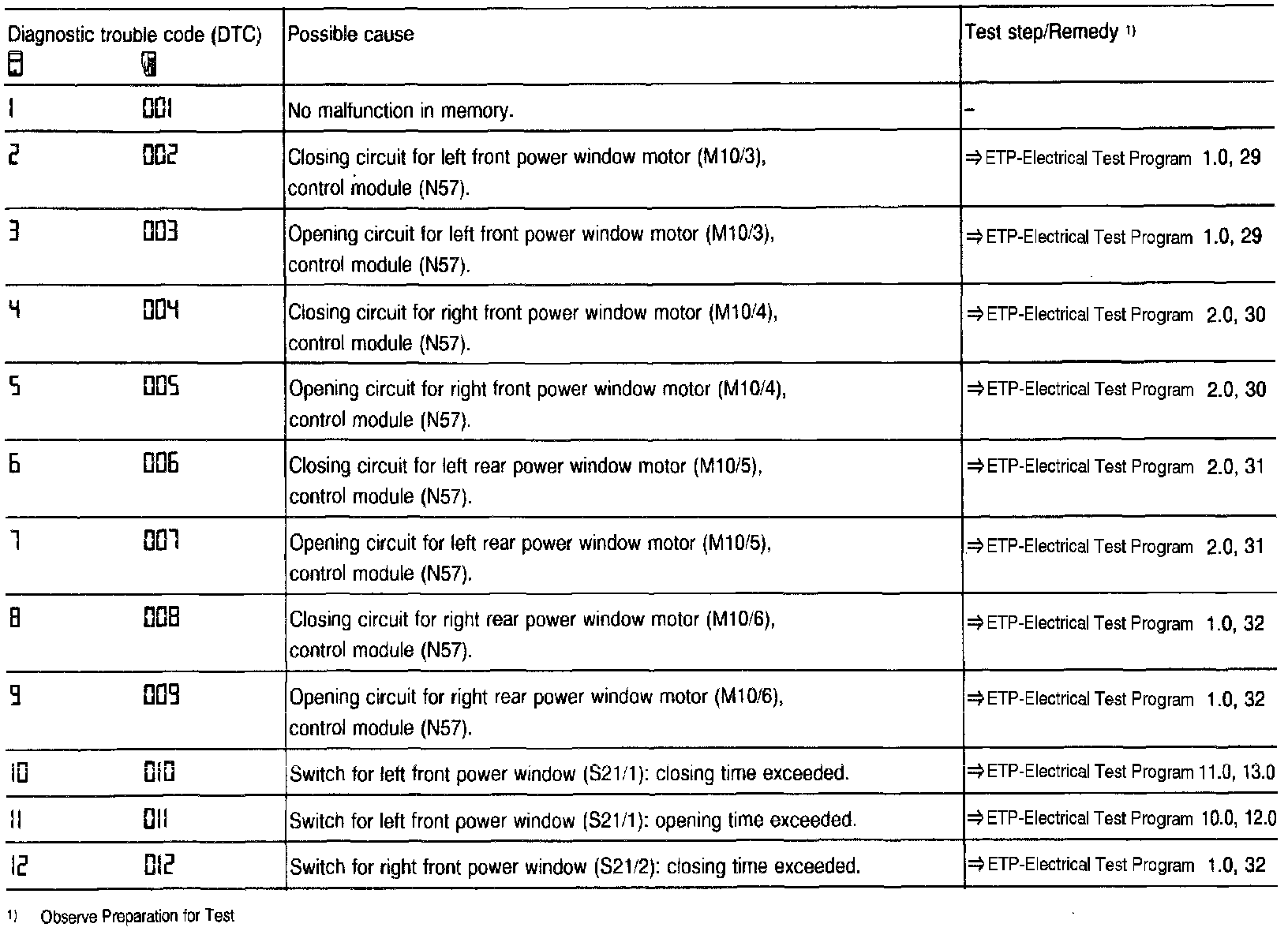

DTC 1 - 12

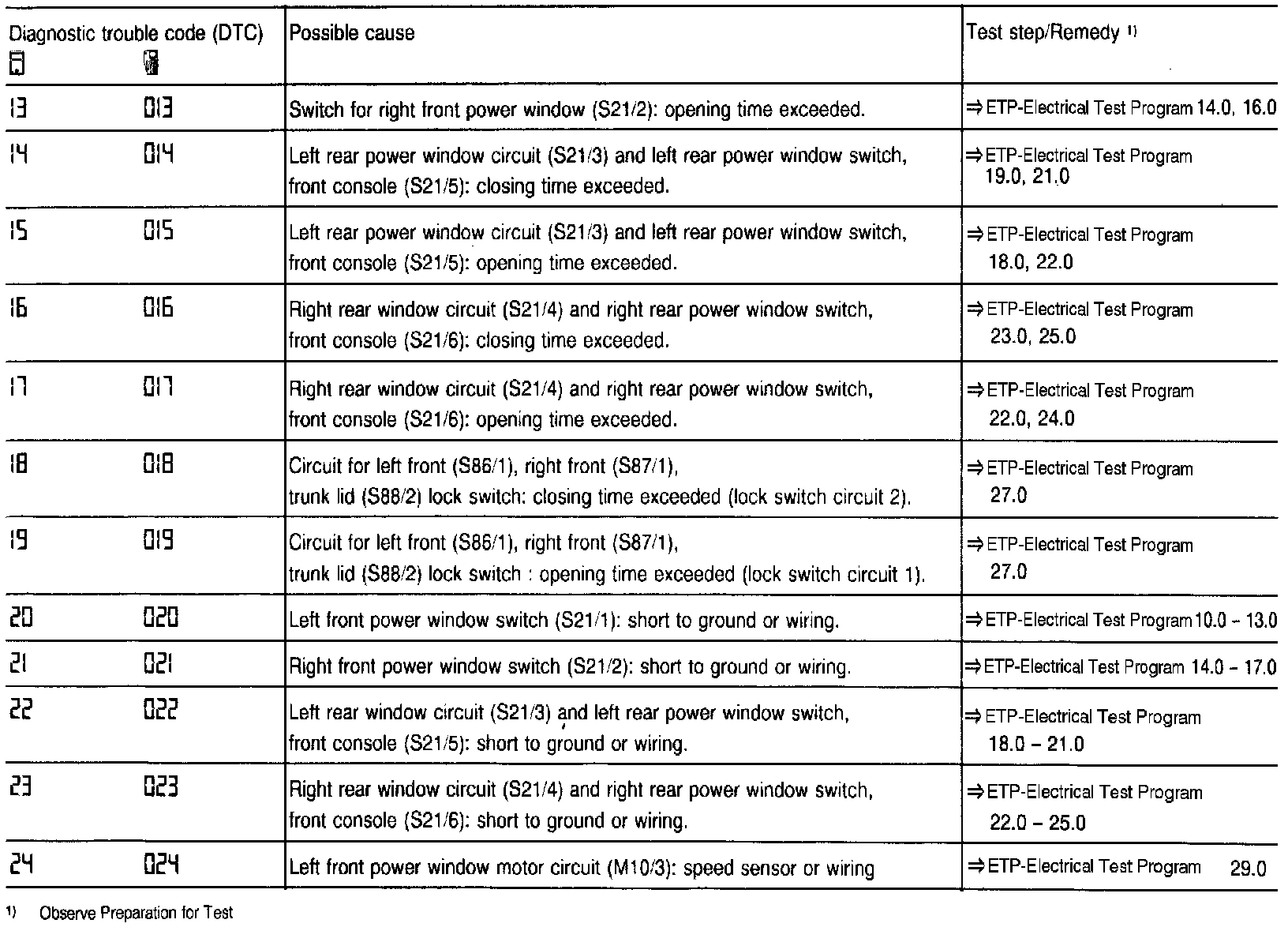

DTC 13- 24

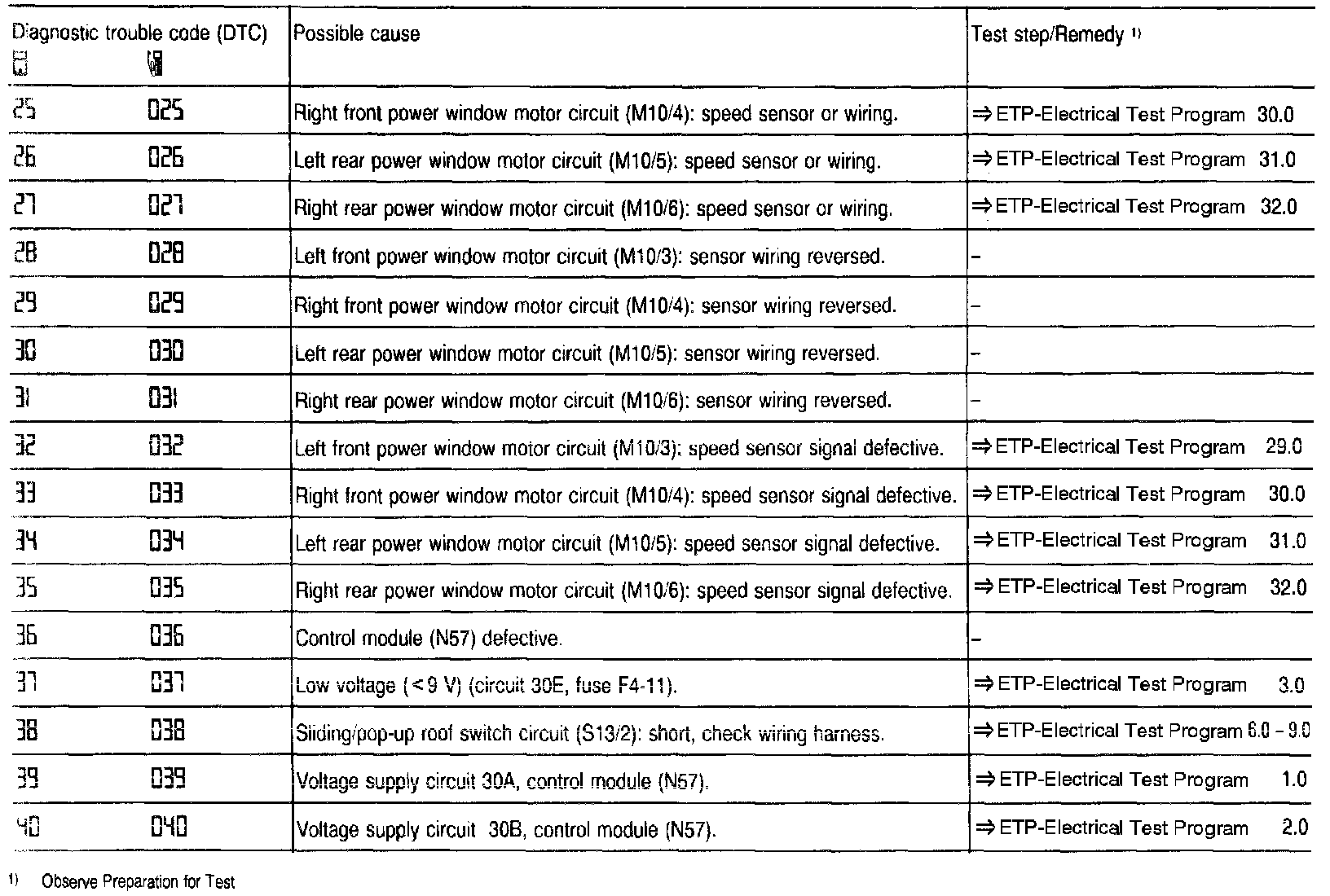

DTC 25 - 40
