Connections

CA Supply Pump Test Connections:
2 End piece cut off from part no. 129 800 09 15
3 End piece cut off from part no. 007 997 61 82
5 Cap, part no. 000 987 11 45
6 Check valve, part no. 126 800 00 78
10 Pressure gauge, part no. 603 589 03 21 00
M14/3 CA supply pump

VL Left front door
VR Right front door
HD Trunk lid
HL Left rear door
HR Right rear door
SK Vacuum vent connection (with screen)

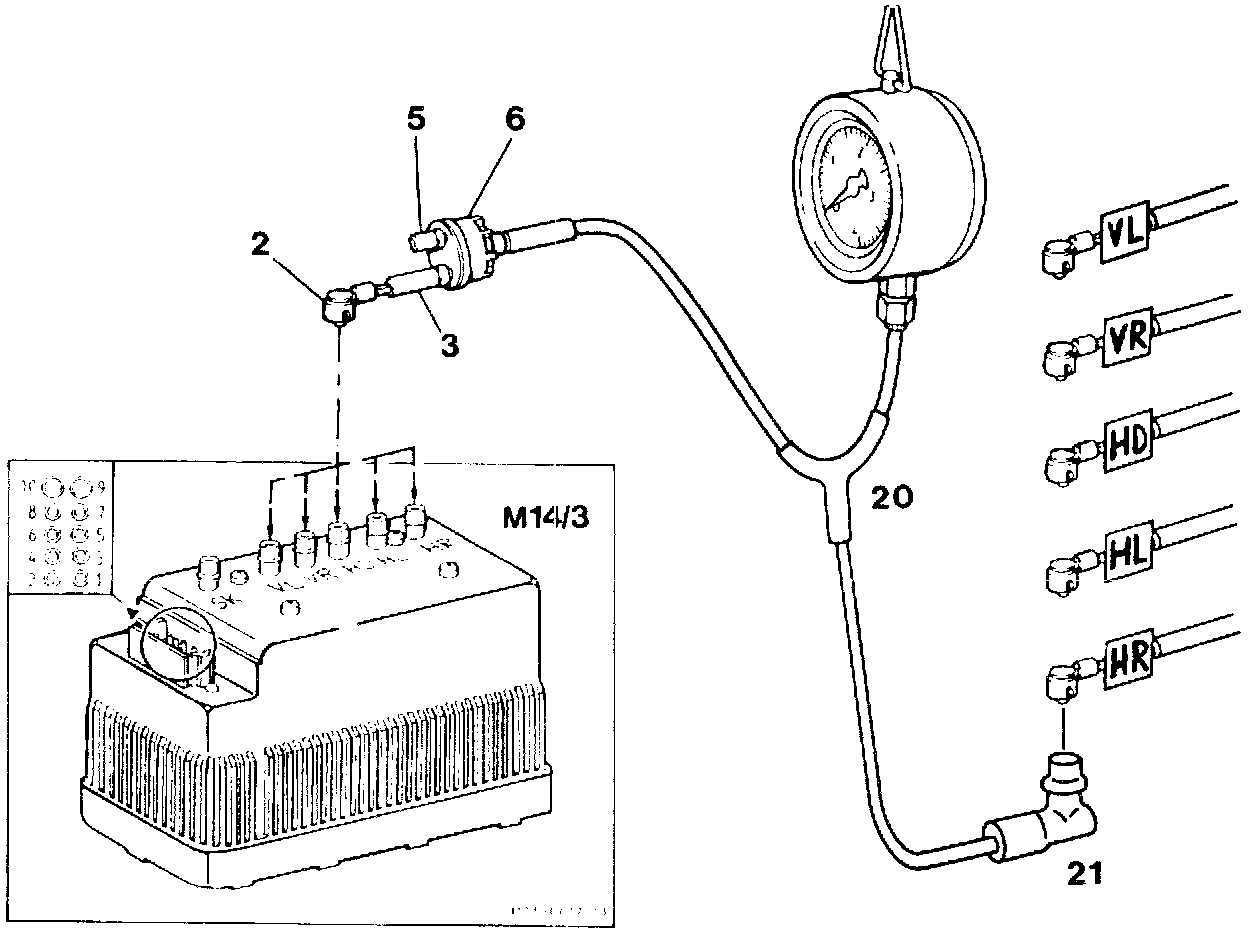

Testing Pneumatic Actuators and Pneumatic Lines/Connectors:
2 End piece cut off from part no. 129 800 09 15
3 End niece cut off from part no. 007 997 61 82
5 Cap, part no. 000 987 11 45
6 Check valve, part no. 126 800 00 78
20 Junction connector, part no. 117 078 01 45
21 Line, part no. 140 800 51 81
M14/3 CA supply pump

VL Left front door
VR Right front door
HD Trunk lid
HL Left rear door
HR Right rear door
SK Vacuum vent connection (with screen)
