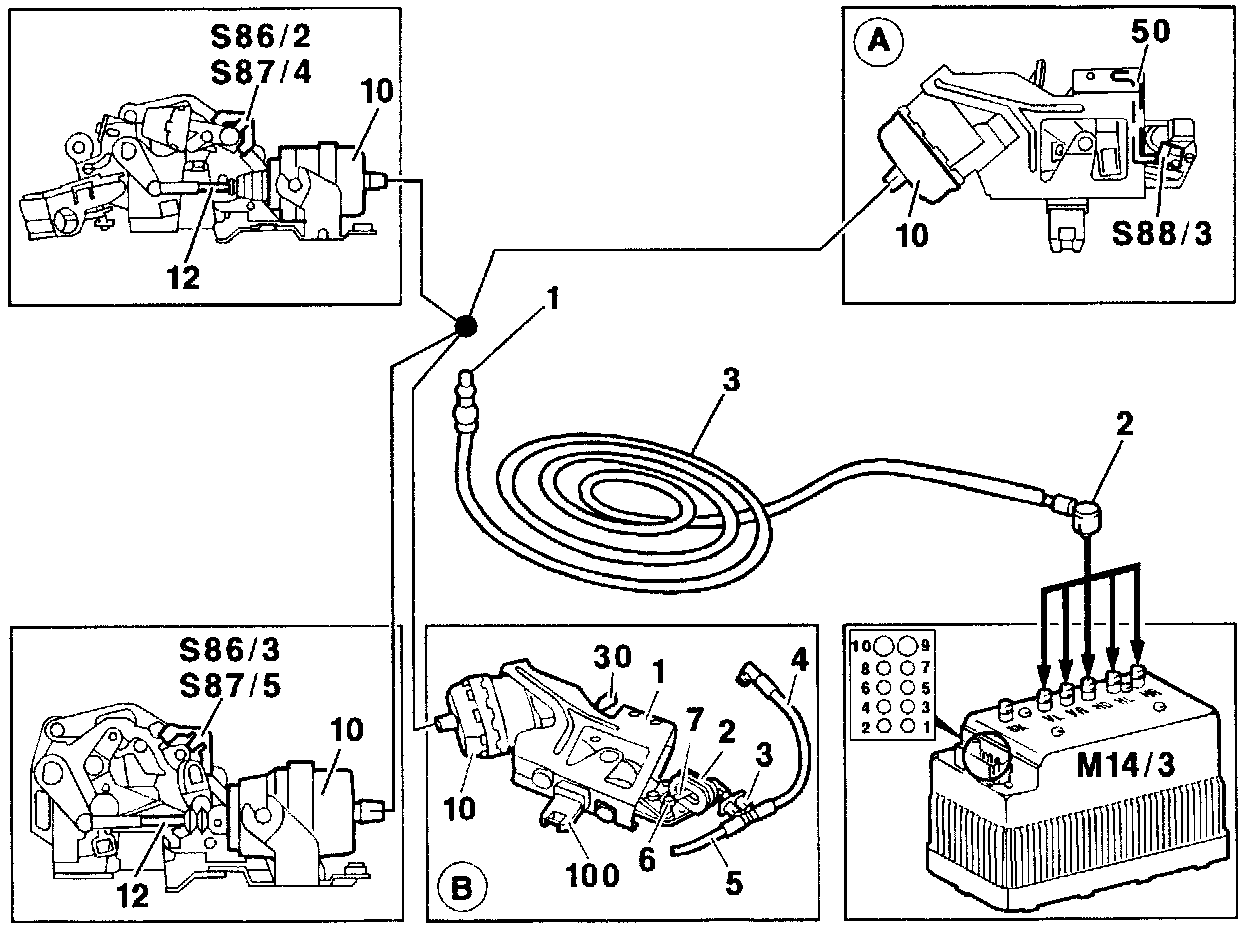

Connector Locations

Testing Pneumatic Actuators:
A Version up to chassis end no. 118120
B Version as of chassis end no. 118121
1 Pneumatic connector, part no. 129 805 04 44
2 End piece cut off from part no. 129 800 09 15
3 End piece cut off from part no. 007 997 61 82
10 Pneumatic actuators
M14/3 CA supply pump

VL Left front door
VR Right front door
HD Trunk lid
HL Left rear door
HR Right rear door
SK Vacuum vent connection (with screen)
