Component Location - Section 21

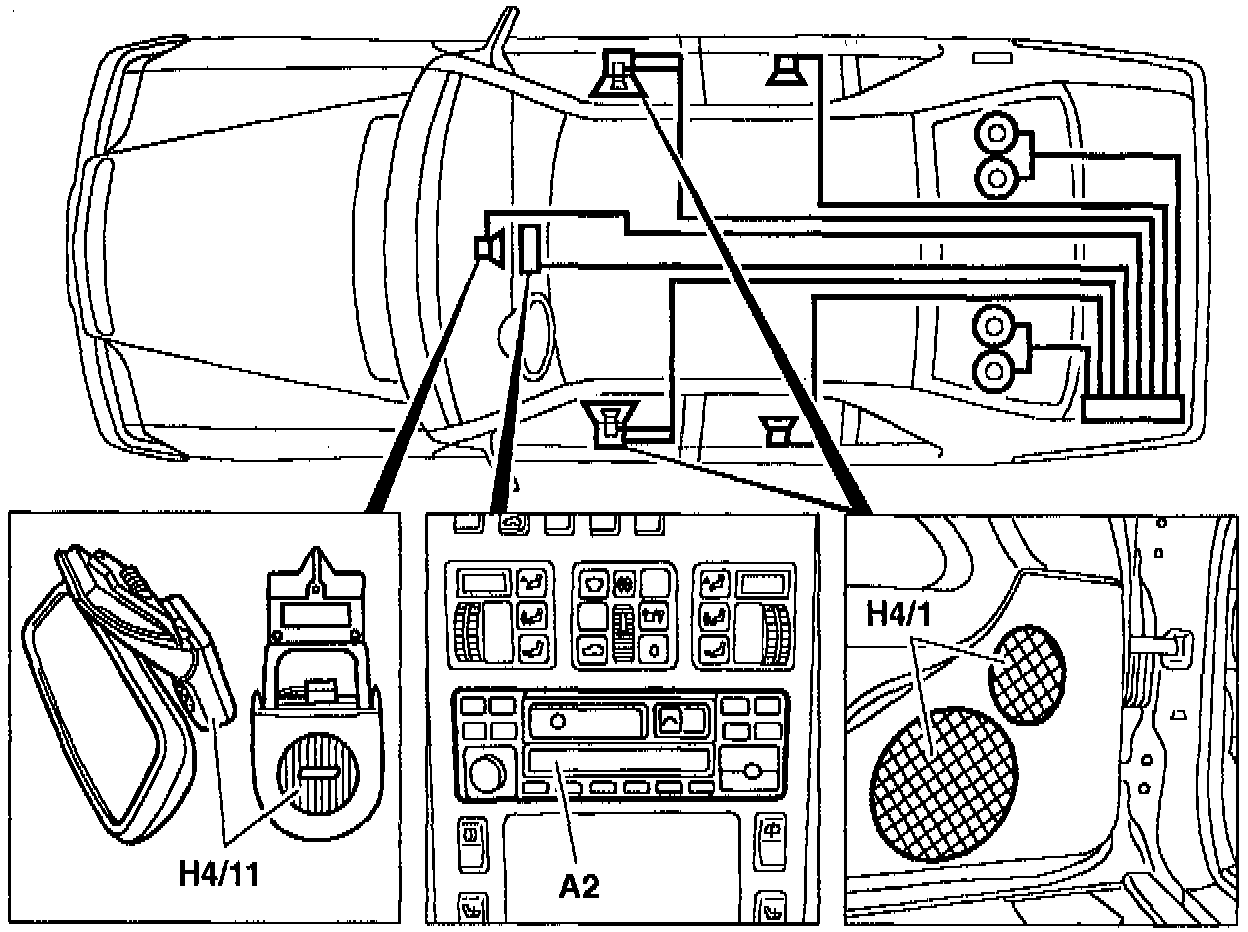

Figure 1 (Front Passenger Compartment):

A2 Radio
H4/1 Left front door speaker group
H4/2 Right front door speaker group (not shown)
H4/11 Center till tweeter speaker

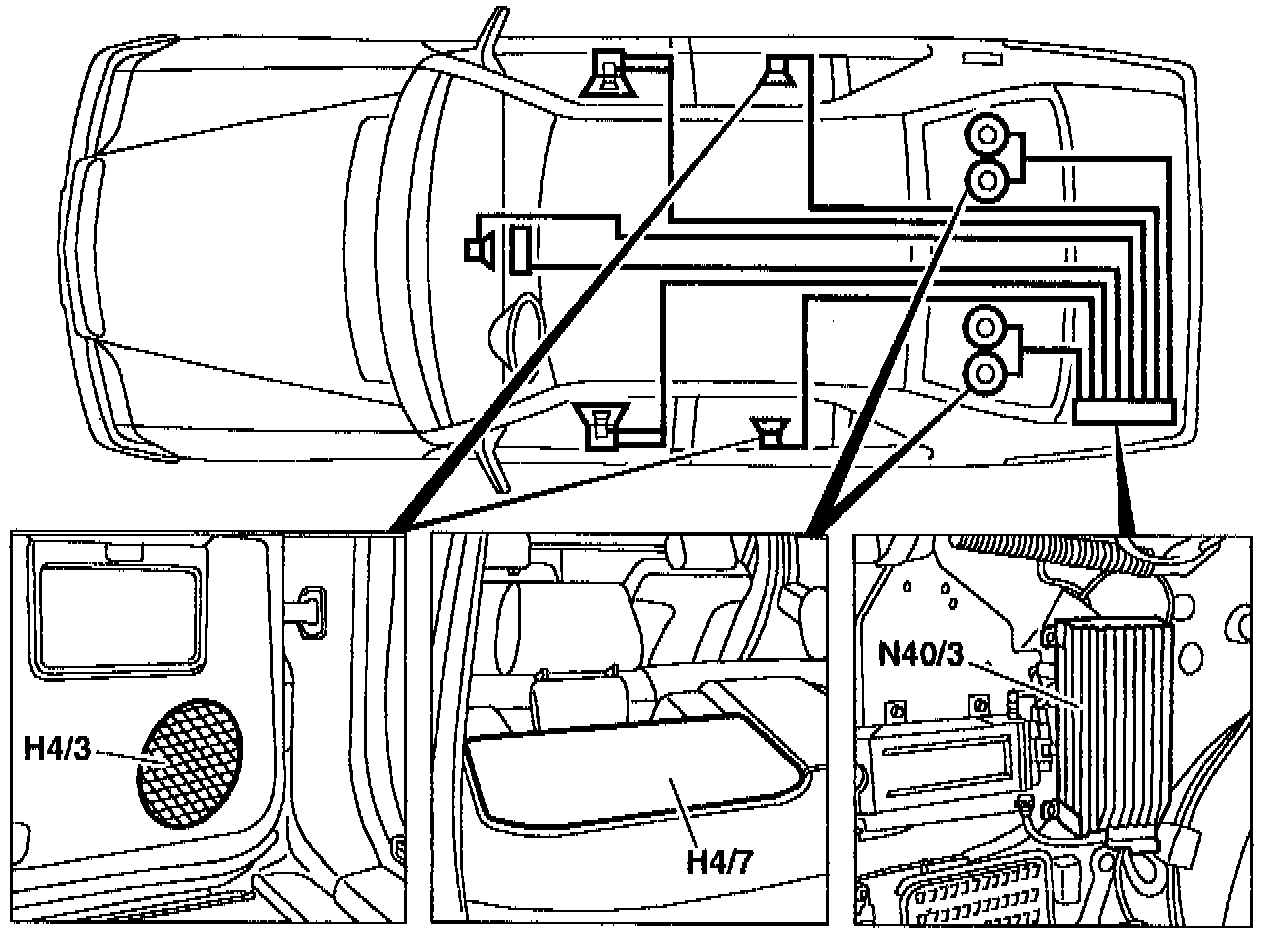

Figure 2 (Rear Passenger Compartment):

H4/3 Left rear door speaker
H4/4 Right rear door speaker (not shown)
H4/7 Left rear speaker group
H4/8 Left rear speaker group (not shown)
N40/3 Left/right audio power amplifier
