Component Location and Identification

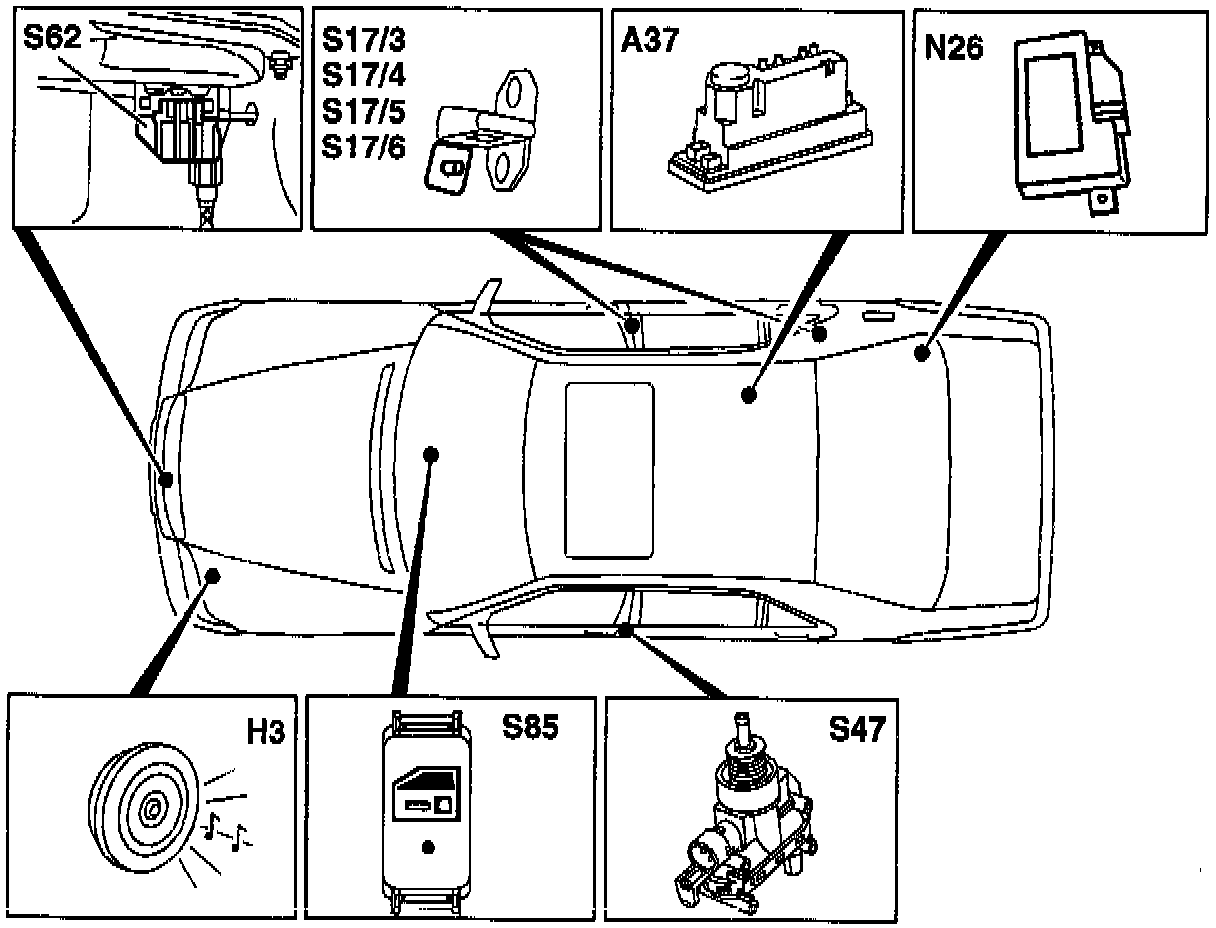

Fig. 2:

A37 PSE control module, combined functions
H3 Alarm horn
N26 ATA control module
S17/3 Left front door switch
S17/4 Right front door switch
S17/5 Left rear door switch
S17/6 Right rear door switch
S47 Left door actuator
S62 Hood switch
S85 Interior CL switch

Fig. 3:

F4 Fuse box in trunk

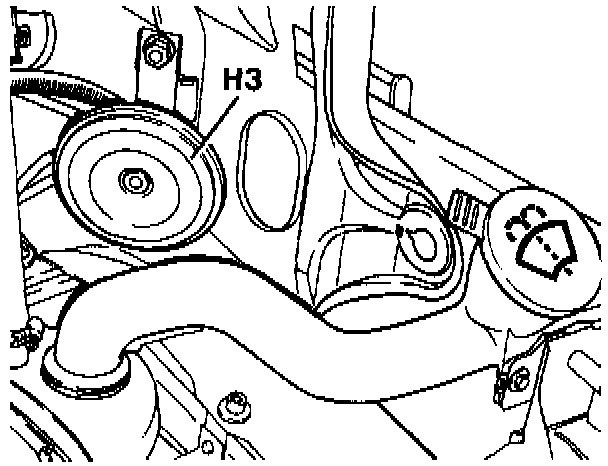

Fig. 4:

H3 Alarm horn

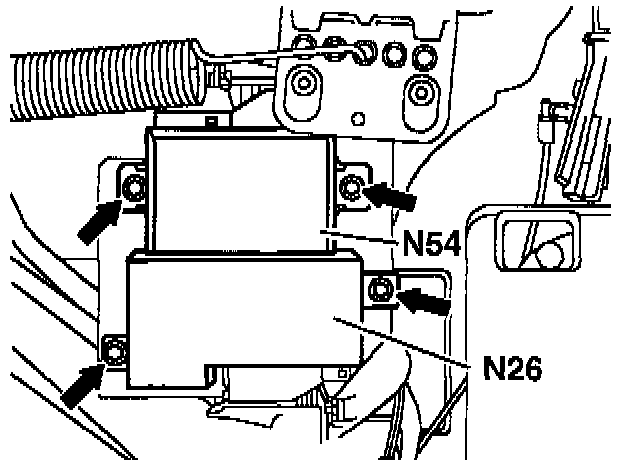

Fig. 5:

N26 ATA control module
N54 RCL control module

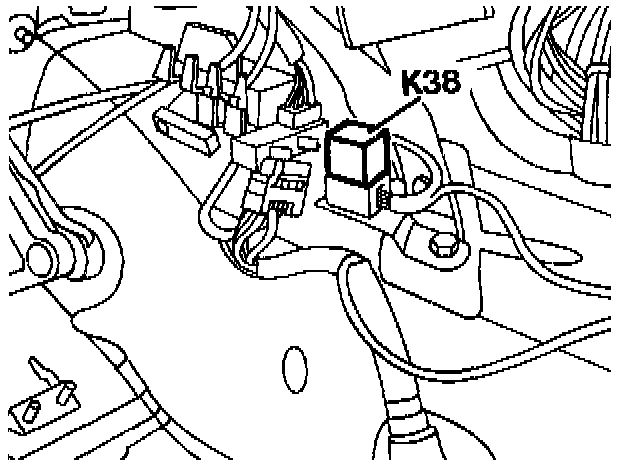

Fig. 6:

K38 Starter lock-out relay module

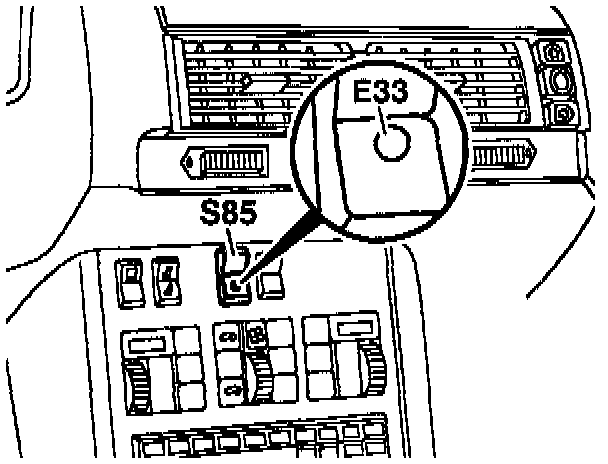

Fig. 7:

E33 ATA Status indicator
S85 Interior CL switch
