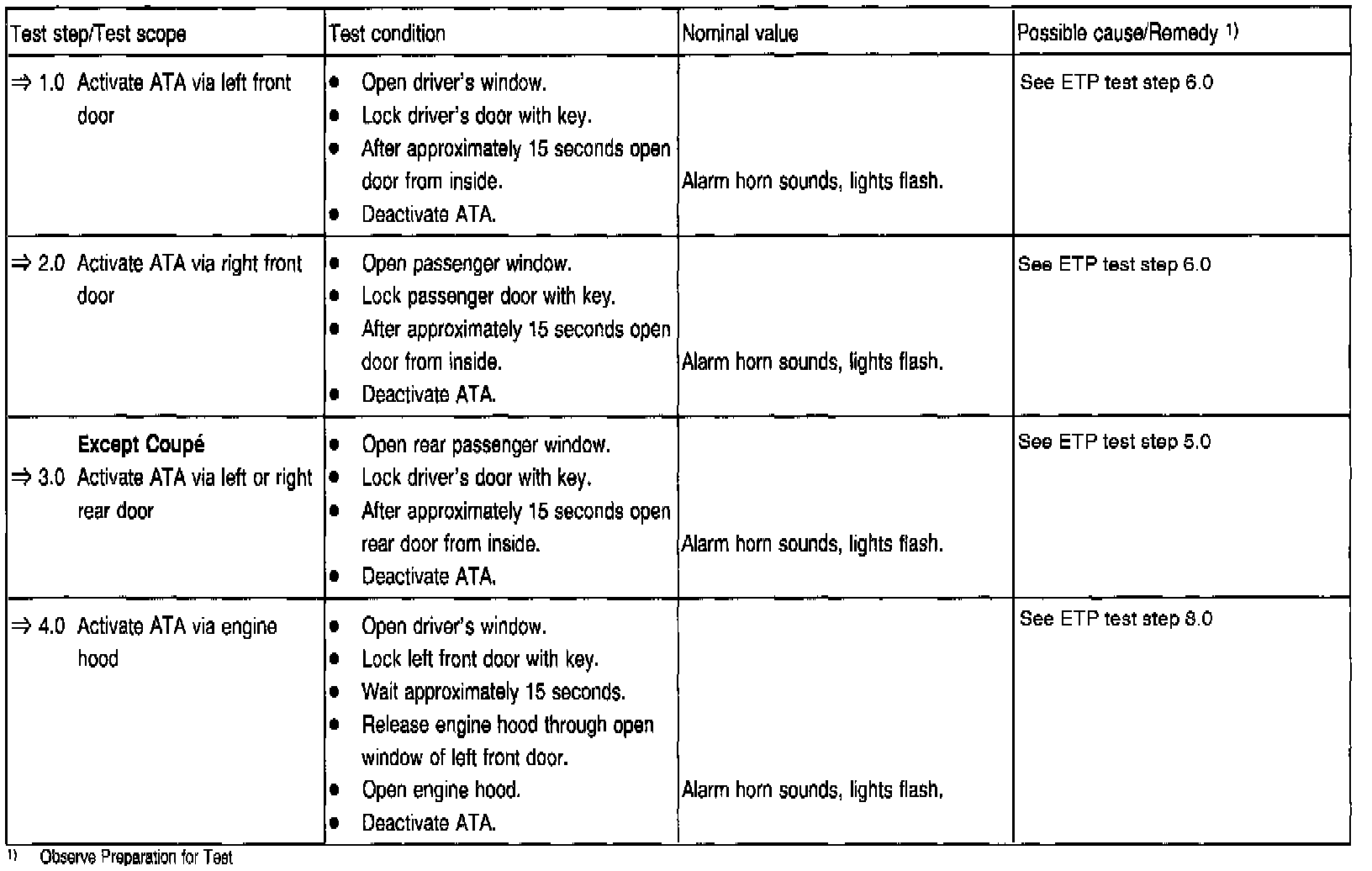

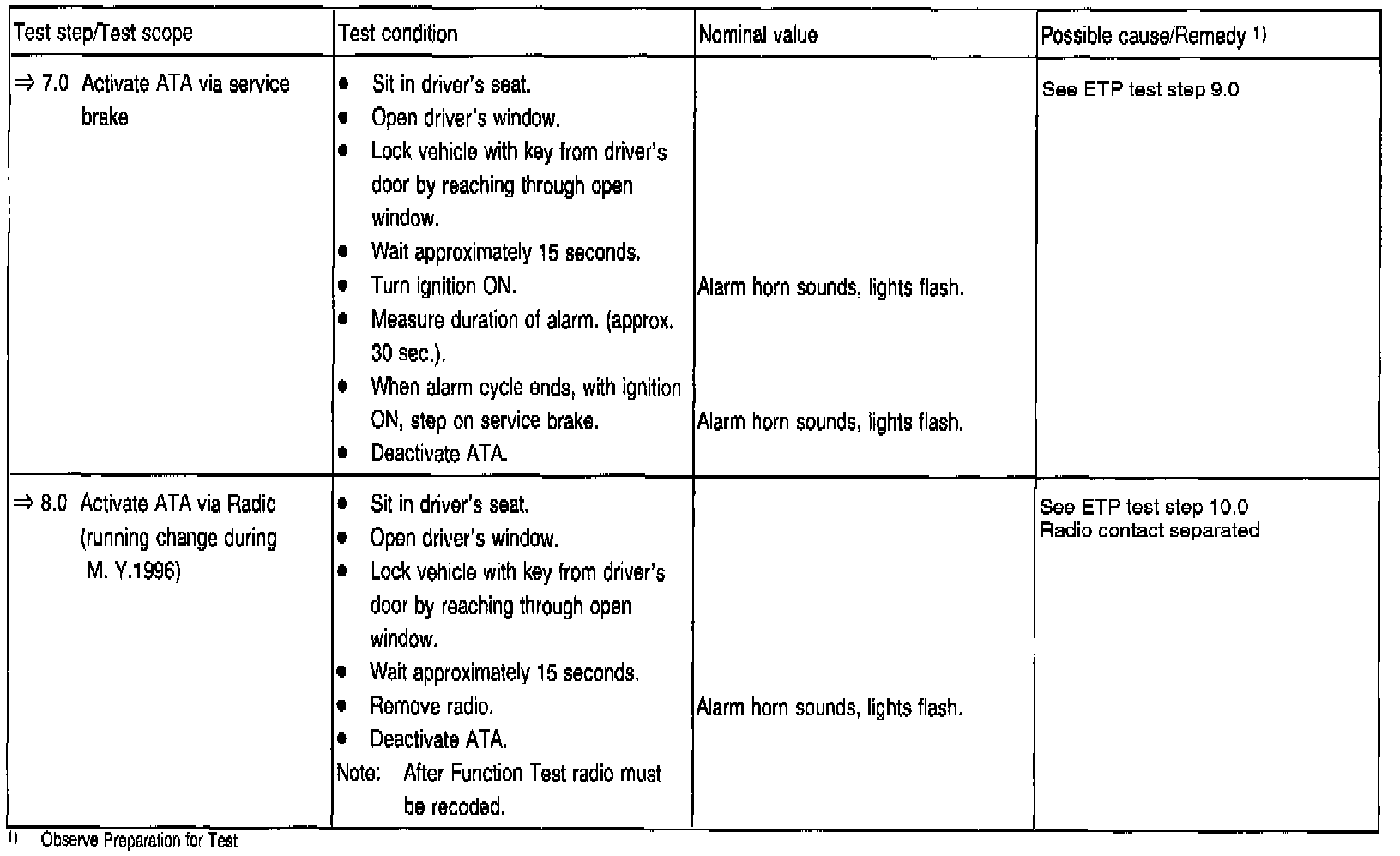

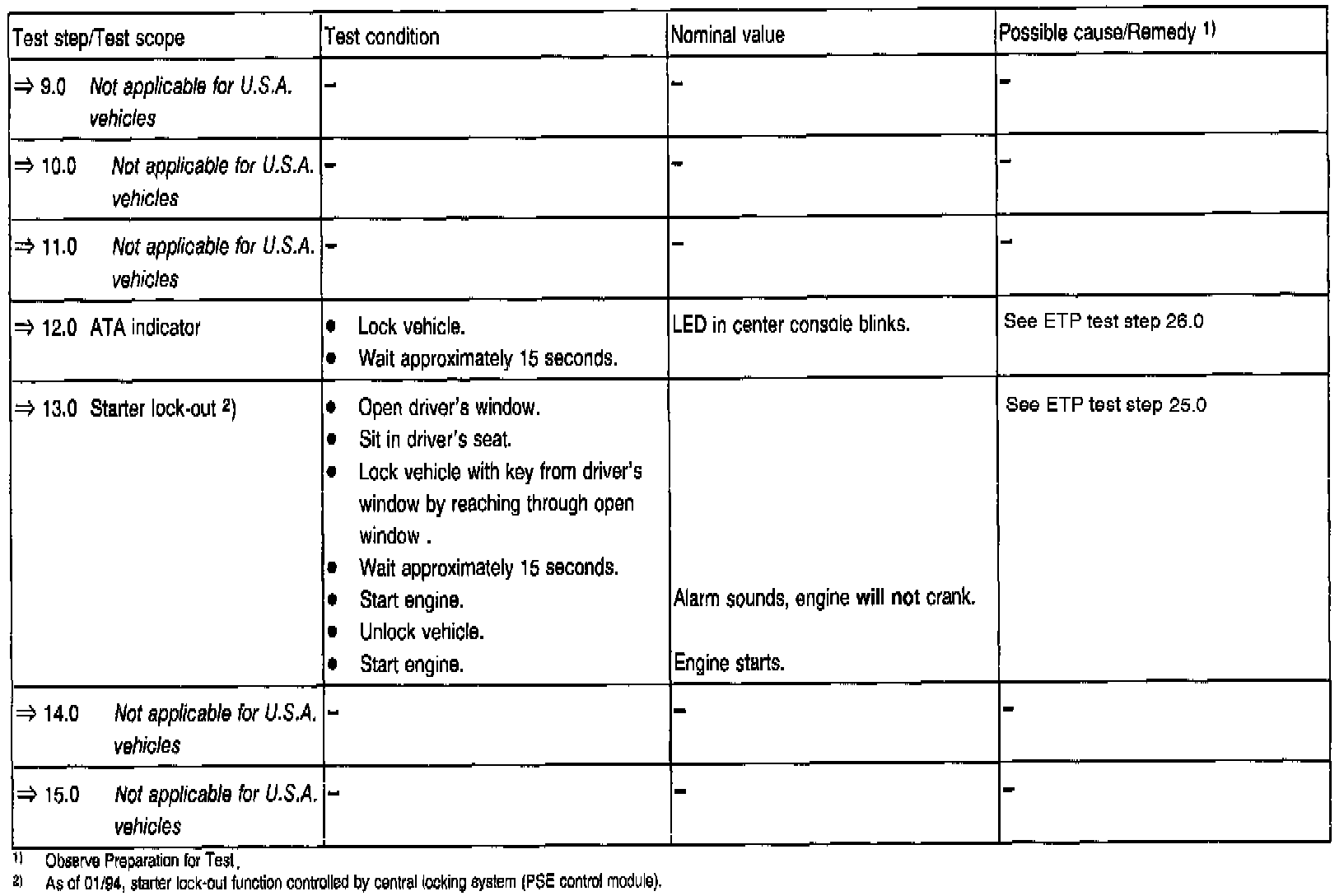

Function Test
Preliminary work:
Check and/or replace batteries for IRCL transmitter and
synchronizing transmitter signal.

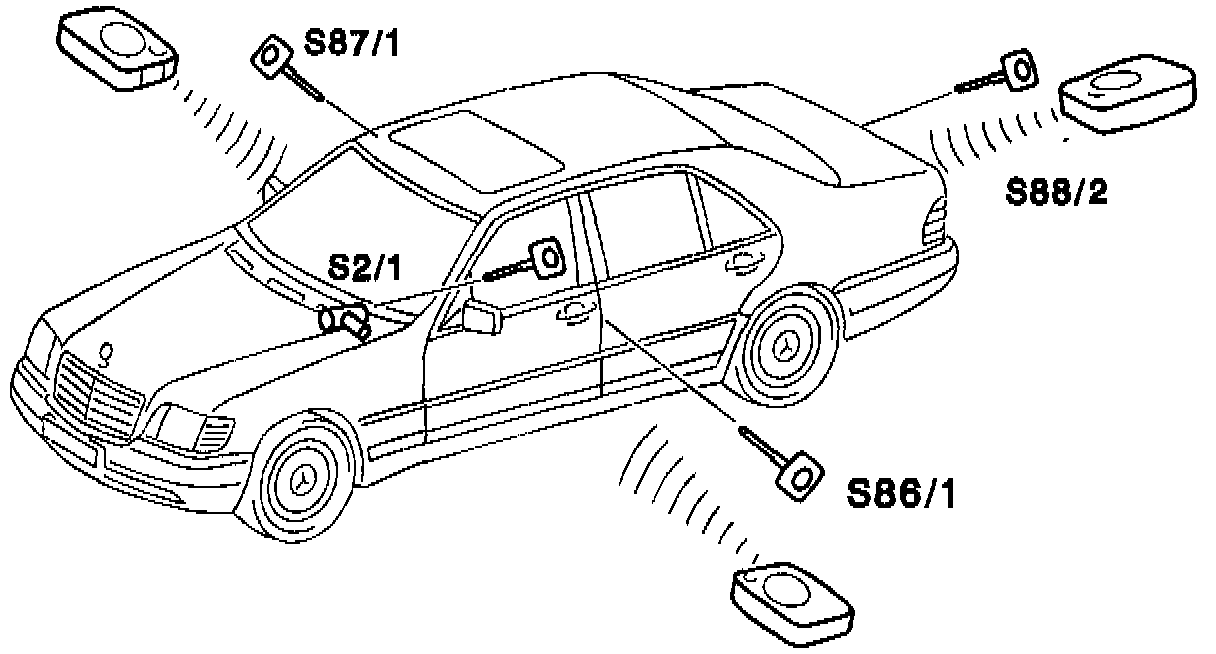

Fig. 1:
Model 140 with RCL
As of M. Y. 1997 3 IR receivers were added in the front doors and trunk lid (as in Figure 1). The mechanical lock cylinders were retained (USA), (J). Note that the IR receiver in rear view mirror that was available on 1996 M.Y. vehicles has been deleted.
Key:
S2/1 Ignition/starter switch
S86/1 Left front door lock switch (CF)
S87/1 Right front door lock switch (CF)
S88/2 Trunk lid lock switch (CF)
NOTE: After performing the Function Test, erase any stored DTC's
