Home >> Mercedes Benz >> 1999 >> S 320 SWB (140.032) L6-3.2L (104.994) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Module >> Service and Repair >> Remove/Install Radio Frequency Das Control Module

Remove/Install Radio Frequency Das Control Module

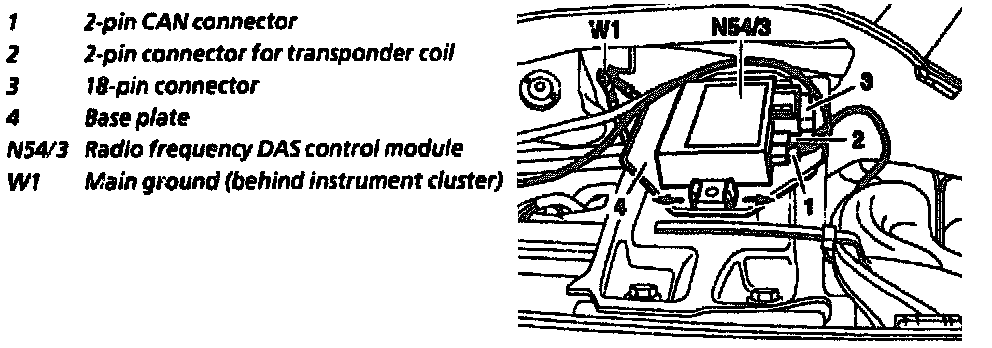

Illustrated on model 210

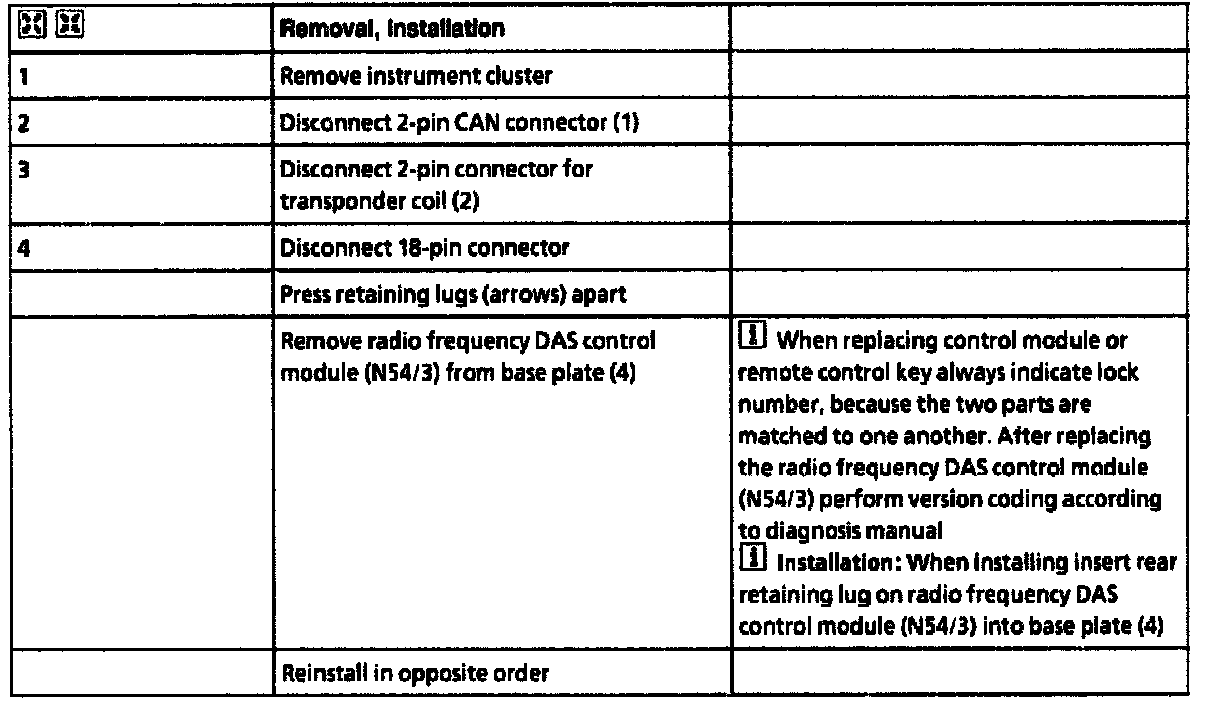

Removal, installation
