Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Service and Repair >> Remove/Install Rear Wiper Motor

Remove/Install Rear Wiper Motor

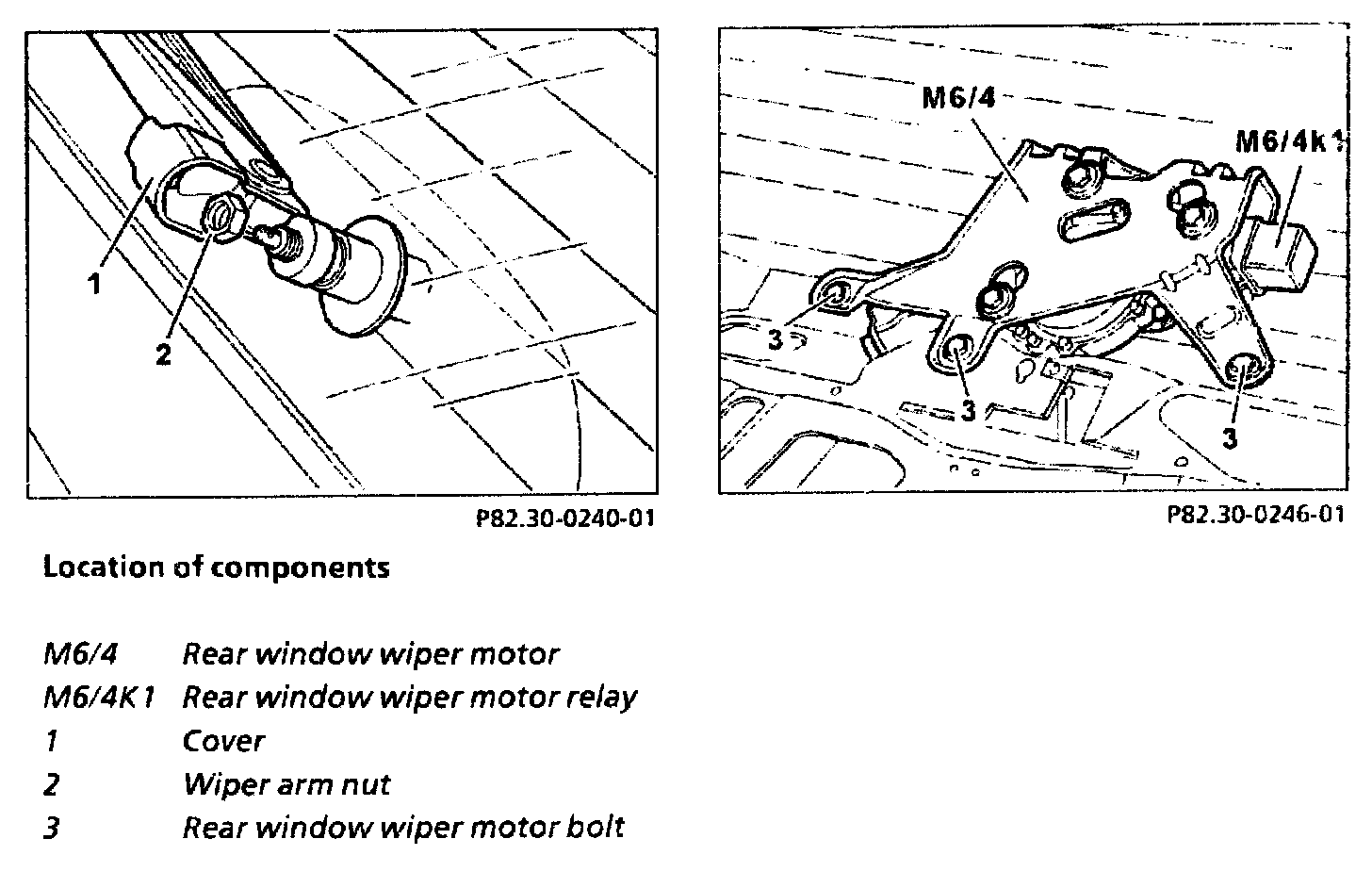

Location Of Components:

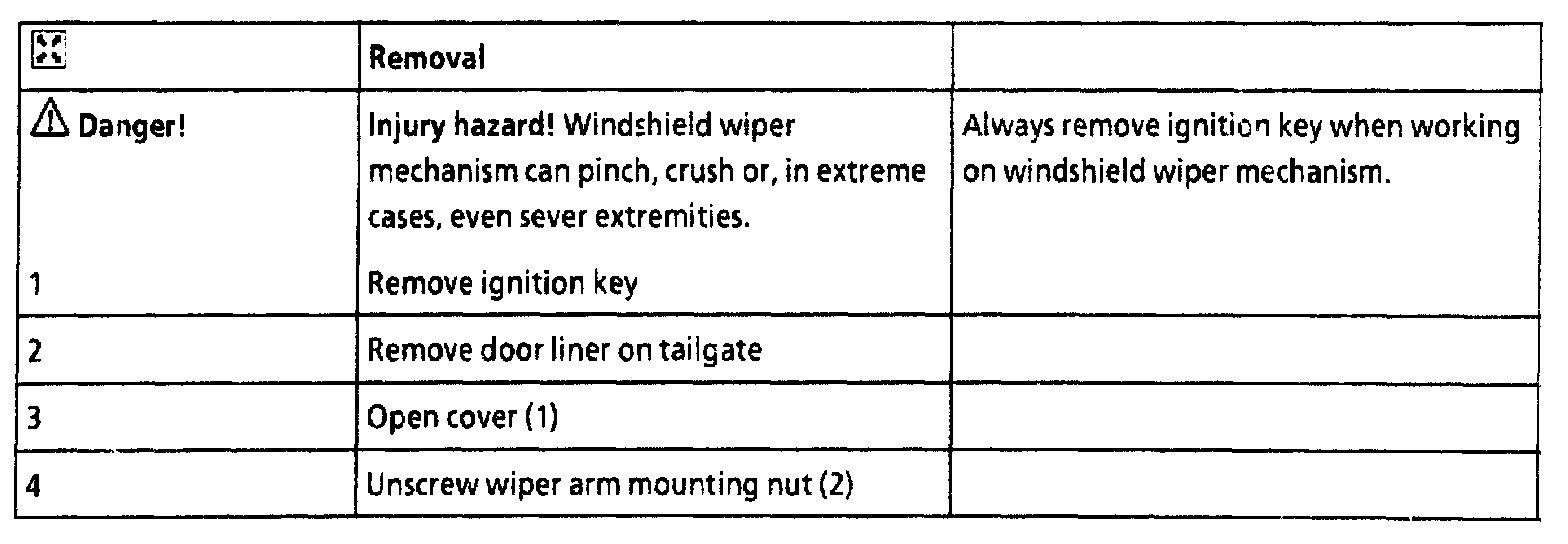

Removal/Installation, Steps 1 - 4:

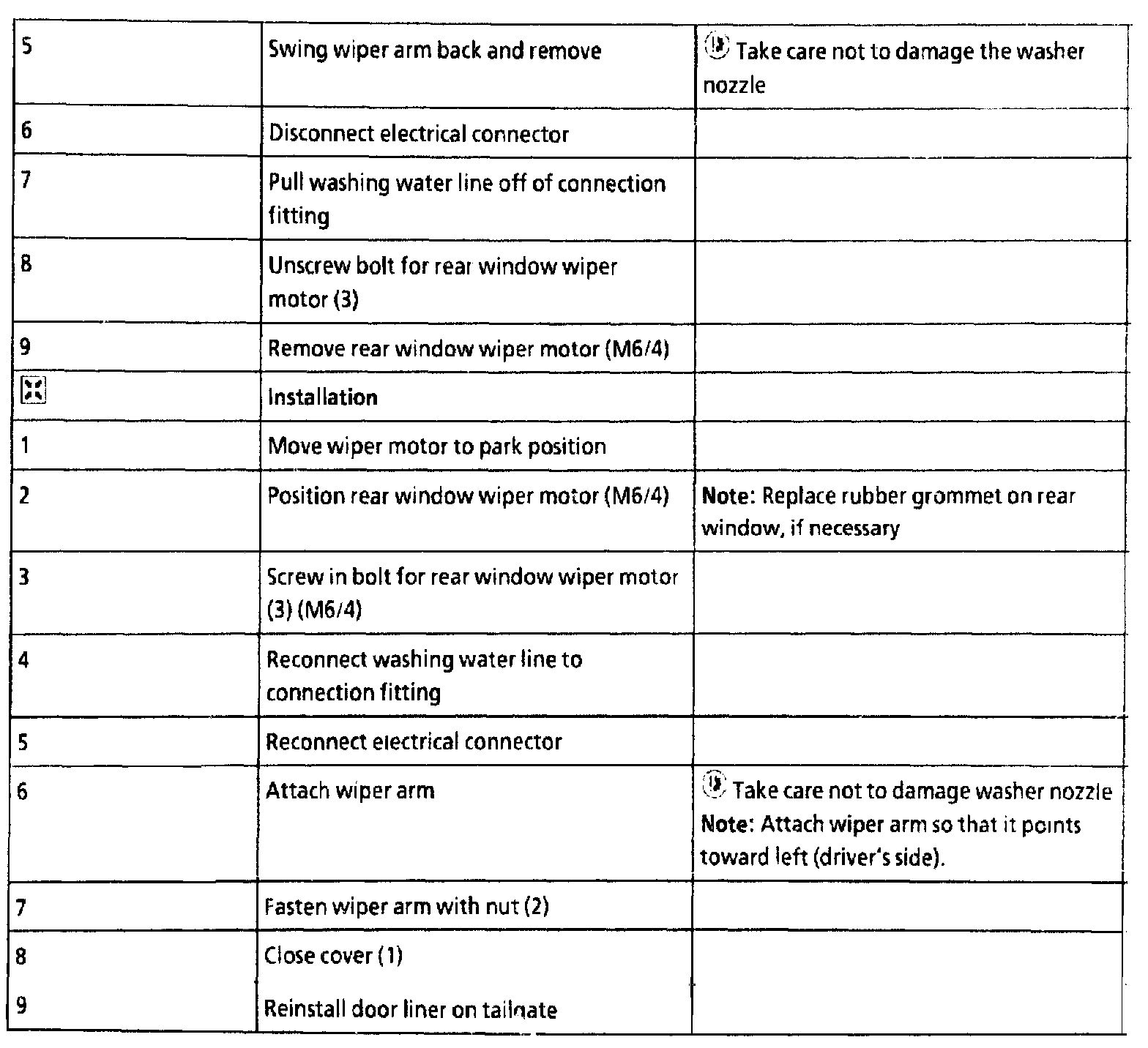

Removal/Installation, Steps 5 - 9:
