Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Arm >> Adjustments >> AR82.30-P-6950T Check and Adjust Rear-End Door Wiper Arm

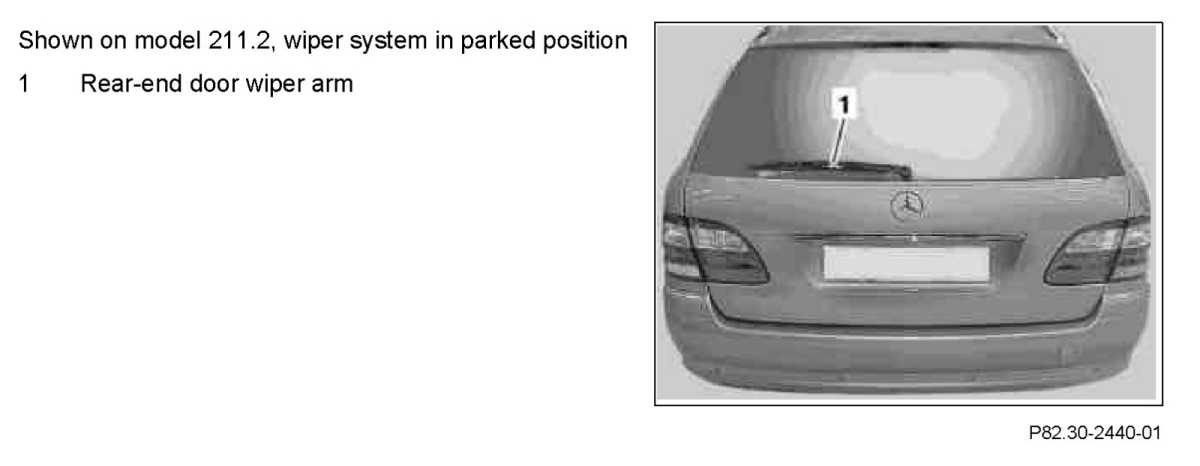

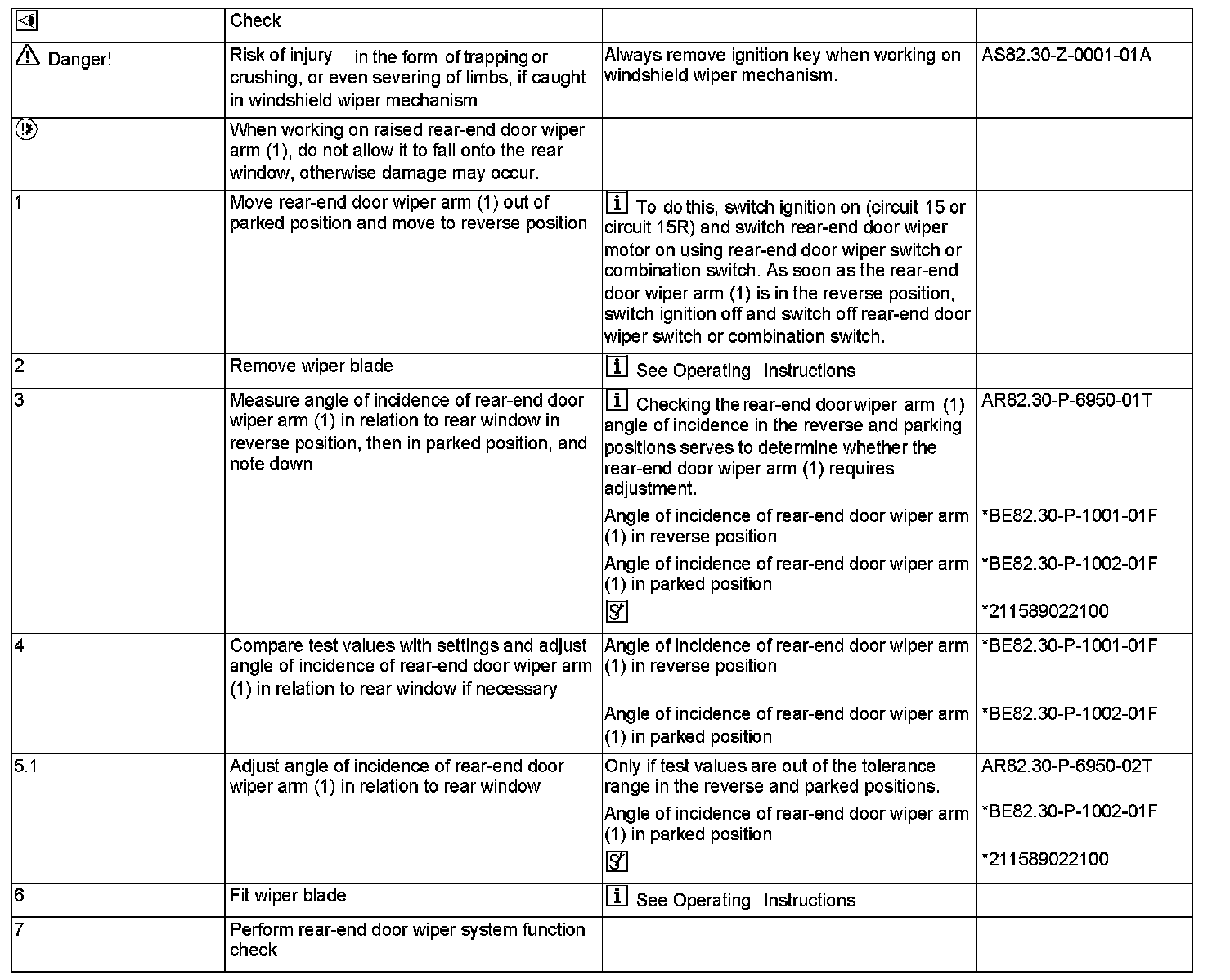

AR82.30-P-6950T Check and Adjust Rear-End Door Wiper Arm



AR82.30-P-6950T Check and Adjust Rear-End Door Wiper Arm

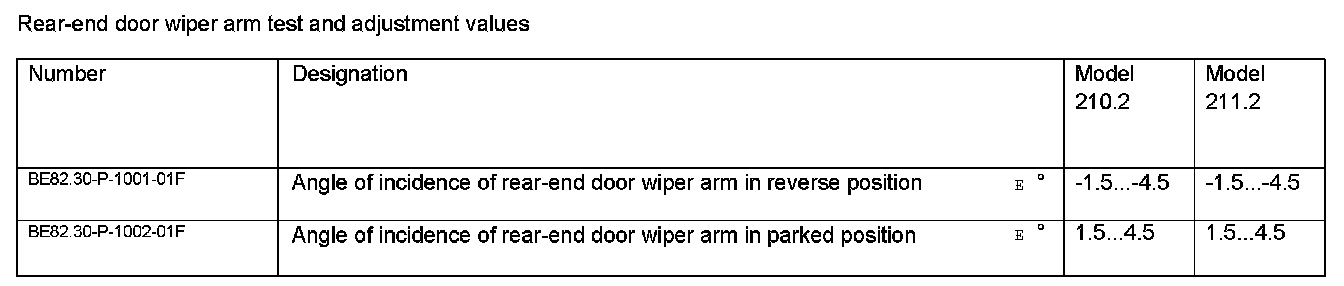

Rear-end Door Wiper Arm Test And Adjustment Values:






Rear-end Door Wiper Arm Test And Adjustment Values:
