AR82.30-P-6950-02T Adjust Rear-End Door Wiper Arm

AR82.30-P-6950-02T Adjust Rear-end Door Wiper Arm

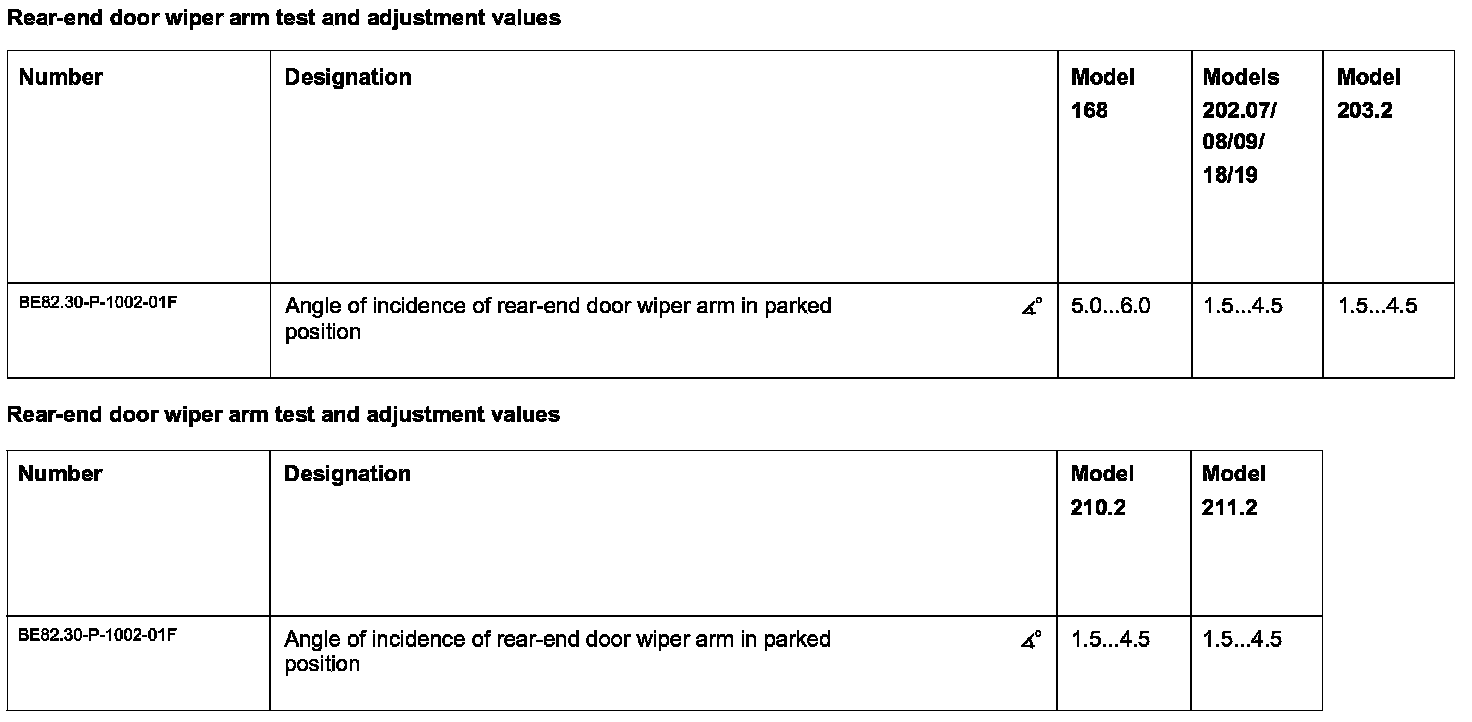

Rear-end Door Wiper Arm Test And Adjustment Values:

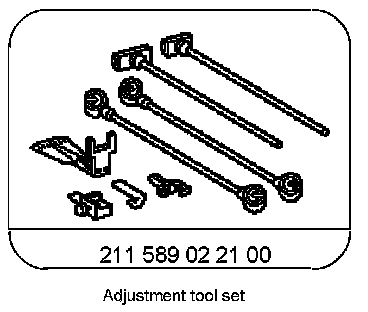

Special Tools:

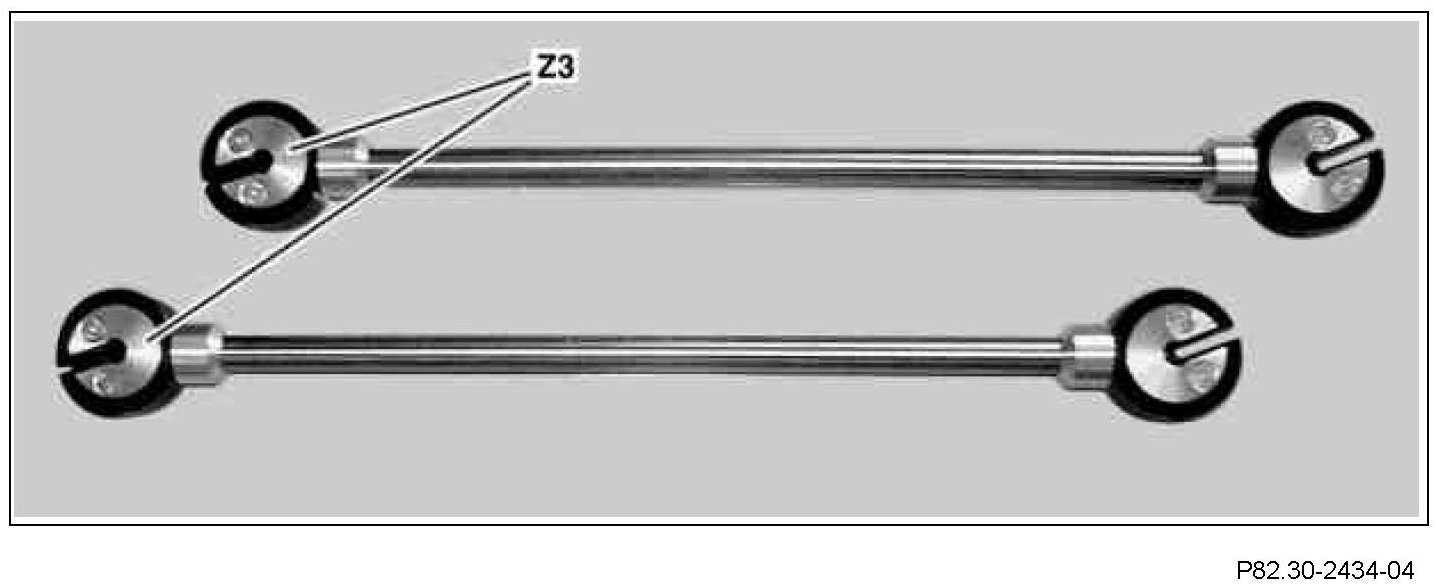

The angle of incidence is changed by "twisting" (distorting) the rear-end door wiper arm with the aid of the adjuster lever (Z3).

The rear-end door wiper arm angle of incidence must always be adjusted in the parked position. In doing so the angle of incidence in parked position and reverse position changes by the same amount.

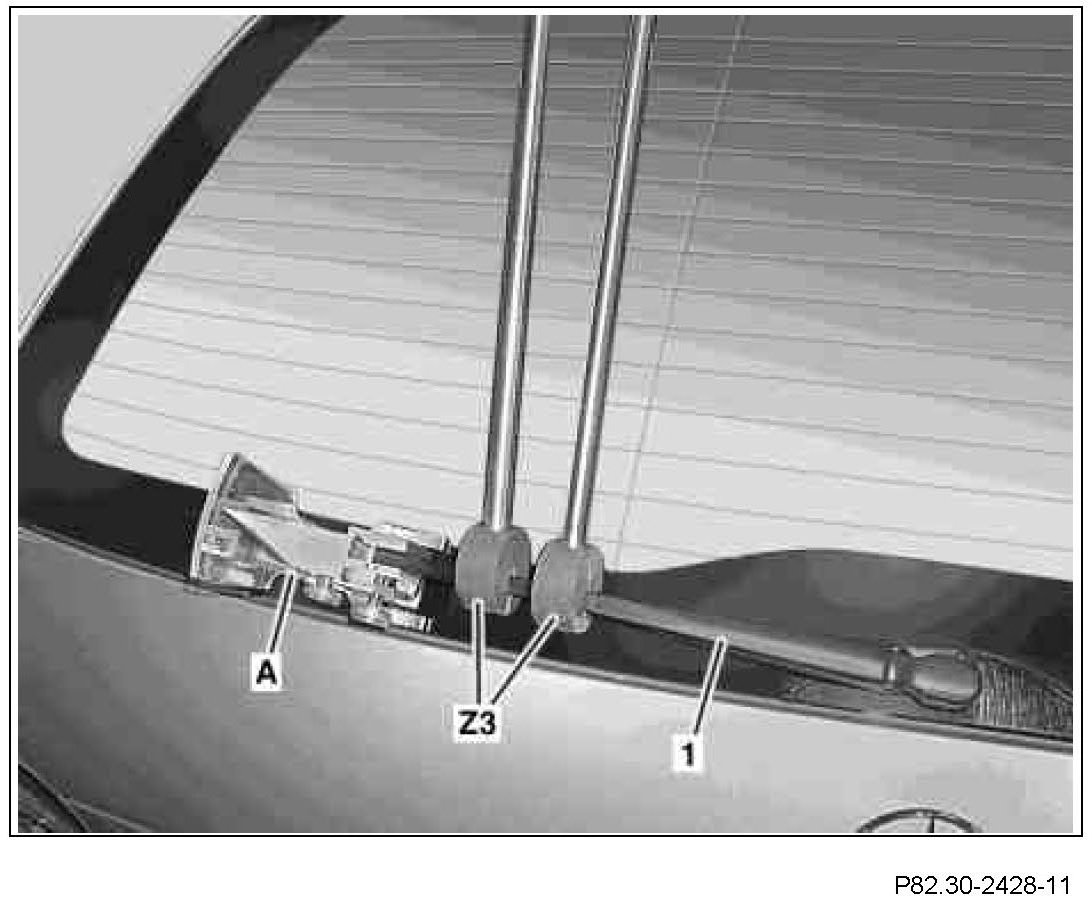

Shown on model 211.2

1 Fit angle measuring device (A) with adapter to rear end door wiper arm (1).
2 Lower rear-end door wiper arm (1) until all three contact points of the angle measuring device (A) foot are lying against the rear window.
3 Put adjuster levers (Z3) onto the rear-end door wiper arm (1) that is being adjusted as far apart as possible.

The rear-end door wiper arm (1) is distorted using the adjuster lever (Z3), which has been positioned close to the wiper arm head.
The second adjuster lever (Z3) is used as a counterholder.







4 Push adjuster lever (Z3) in required direction until correct adjustment value is displayed on the scale of the angle measuring device (A).
5 Remove adjuster lever (Z3) from rear-end door wiper arm (1) and remove angle measuring device (A) with adapter from rear-end door wiper arm (1).
