Function of Rear Window Wiper System

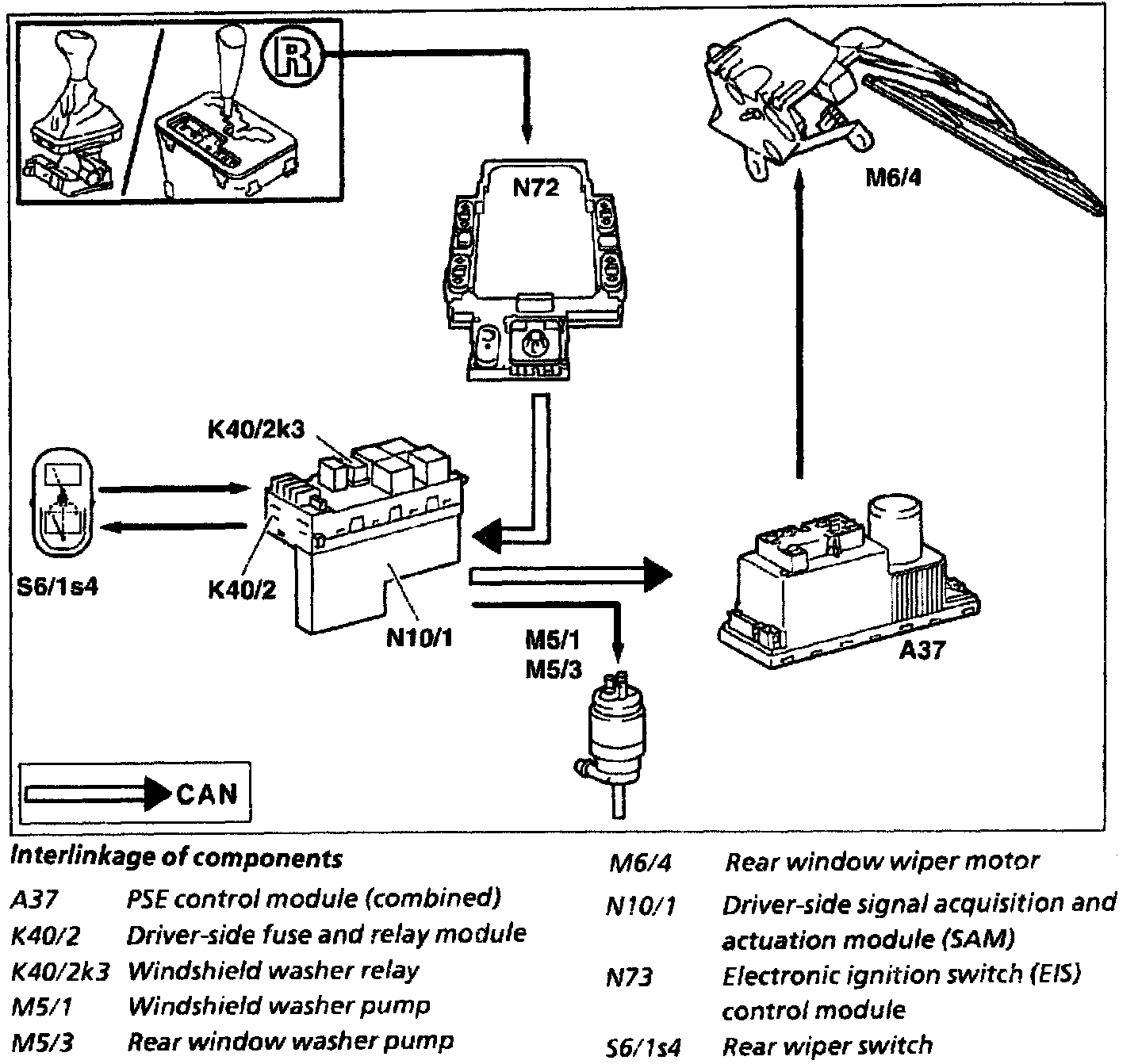

Interlinkage Of Components:

Prerequisite for all rear window wiper system functions:
- Circuit "15R ON".

The rear window wipe/wash functions are actuated with the rear wiper switch (S6/1s4). The rear window wiper is also actuated when the transmission is shifted into reverse and the windshield wipers is switched on.
