Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Rear Door Window Glass >> Service and Repair >> AR72.12-P-1970FB Remove/Install Fixed Window In Rear Door

AR72.12-P-1970FB Remove/Install Fixed Window In Rear Door



AR72.12-P-1970FB Removing And Installing Fixed Window In Rear Door
- with CODE (979) Special protection version
- with CODE (Z04) Light armoring
- with CODE (Z06) B6 armoring

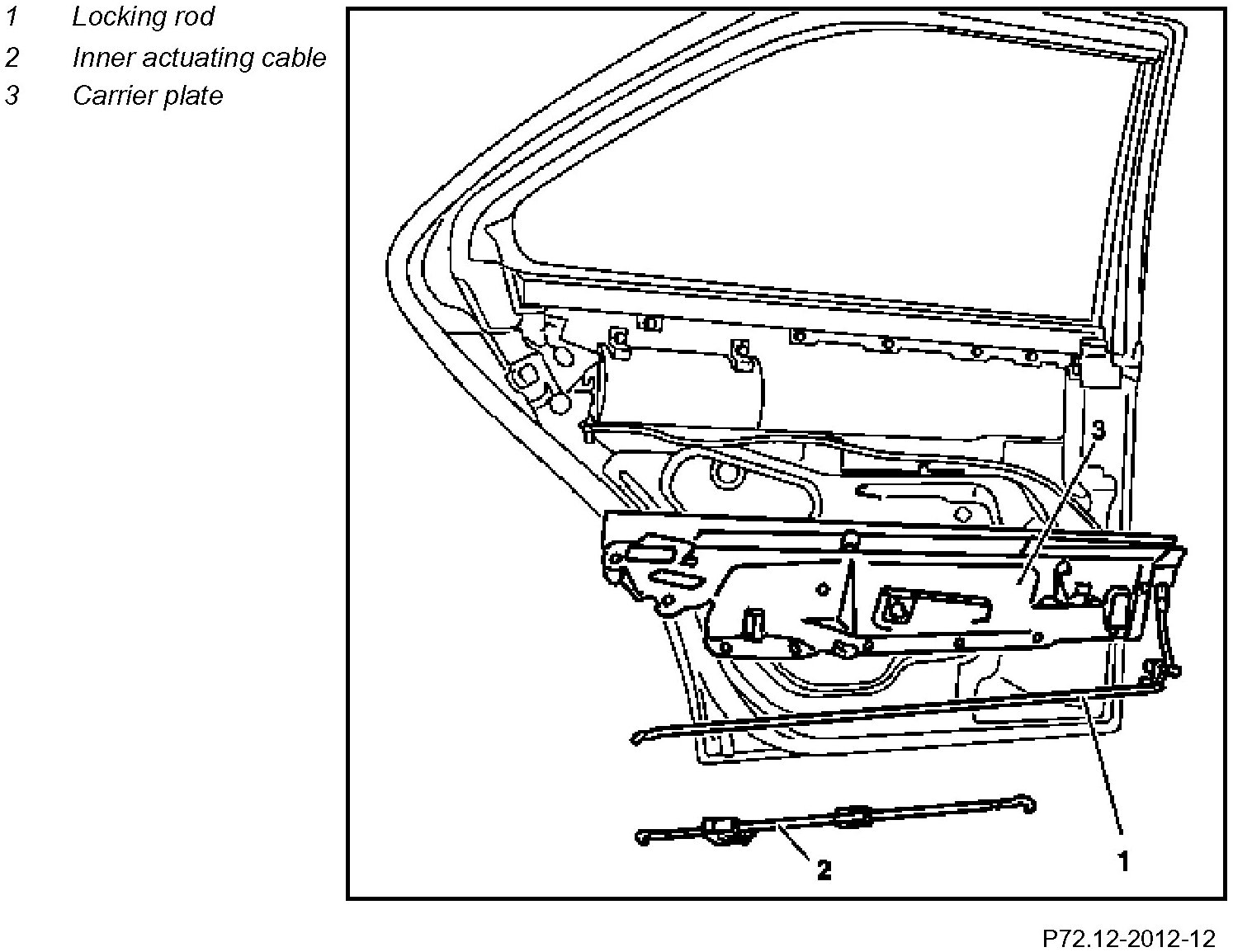

Component Identification:

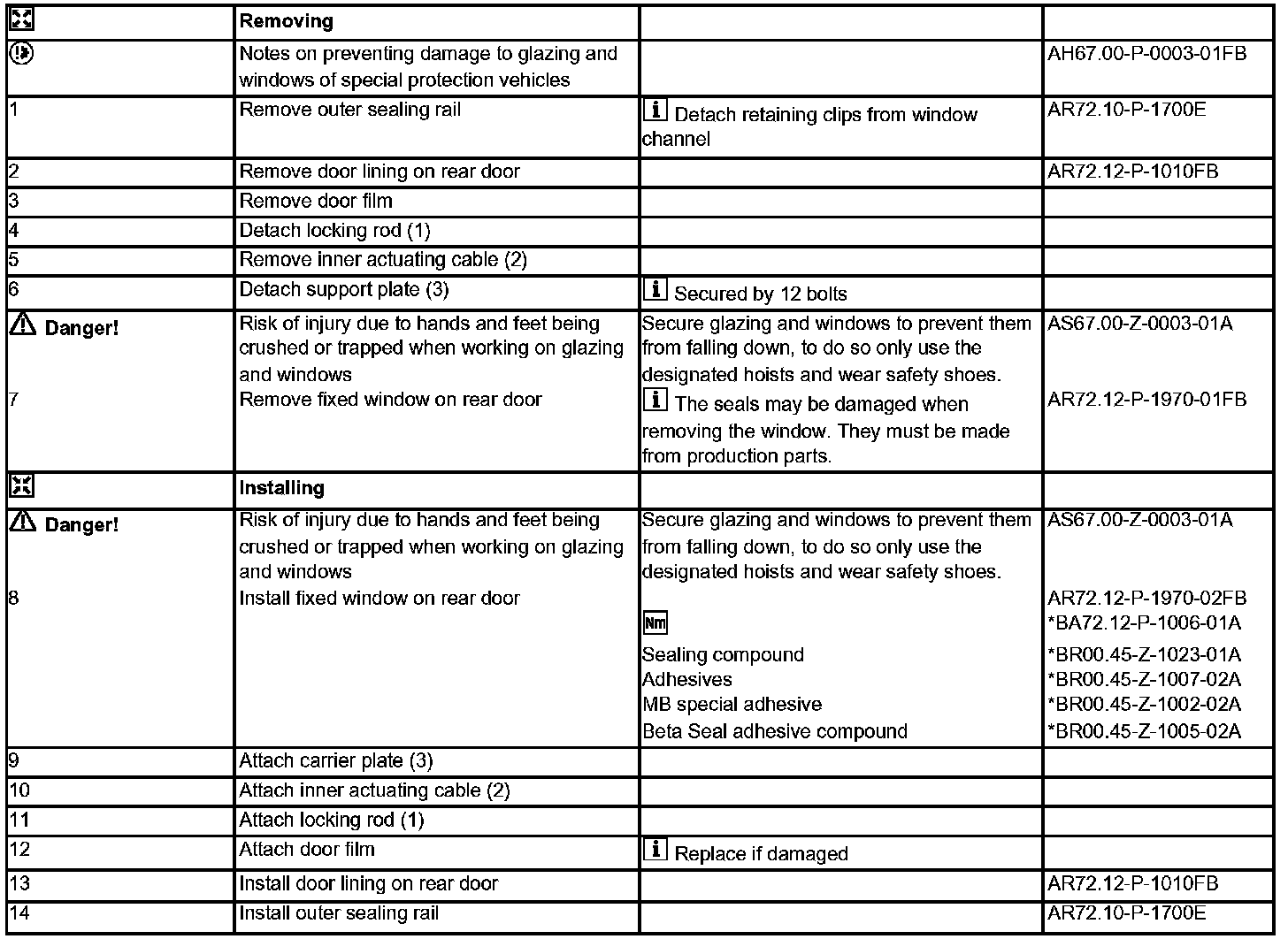

Steps 1 - 14:

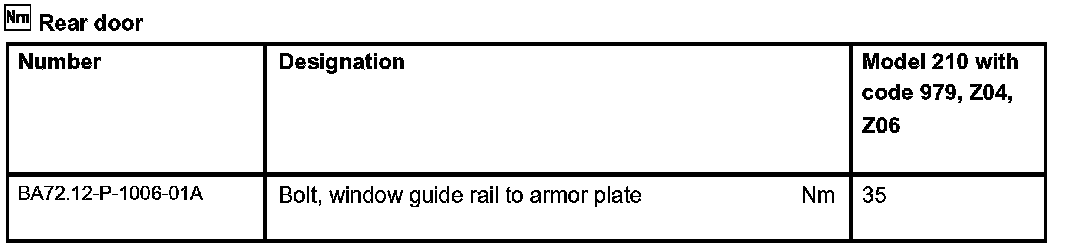

Rear Door:

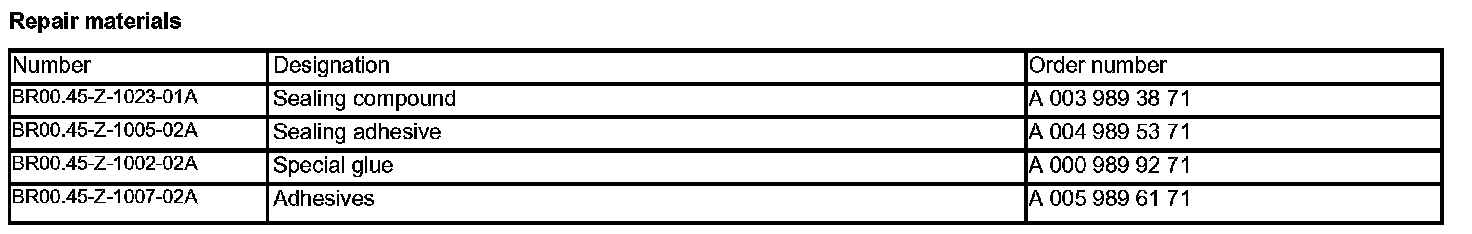

Repair Materials:
