AR67.20-P-3550-03F Removing, Installing, Replacing Molding On Rear Window

AR67.20-P-3550-03F Removing, Installing, Replacing Molding On Rear Window

Special Tools:

Component Identification:

The molding (2) is installed instead of rubber spacers. It limits the installation depth and gap all the way around.

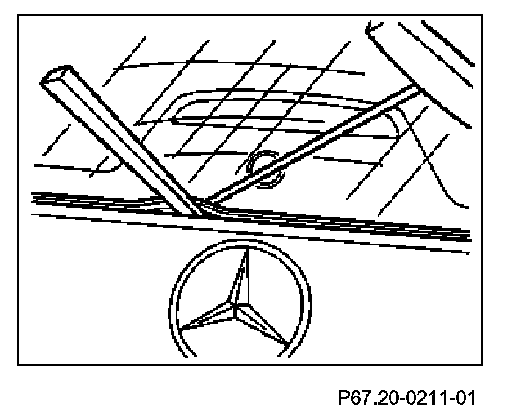

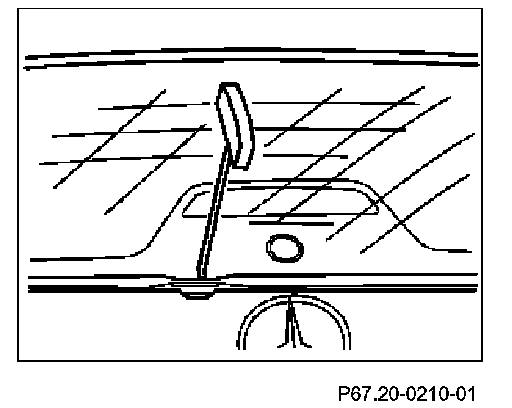

1. Remove cover (2) with removal hooks (140 589 02 33 00) and long wedge (115 589 03 59 00).

Do not damage window (1) with removal hooks.







2. Install molding (2) on window (1). Check for proper seating and intervals.
