AR41.10-P-0070A Removing and Installing Front Axle Gear Propeller Shaft
AR41.10-P-0070A Removing and Installing Front Axle Gear Propeller Shaft
AR41.10-P-0070A Removing and Installing Front Axle Gear Propeller Shaft

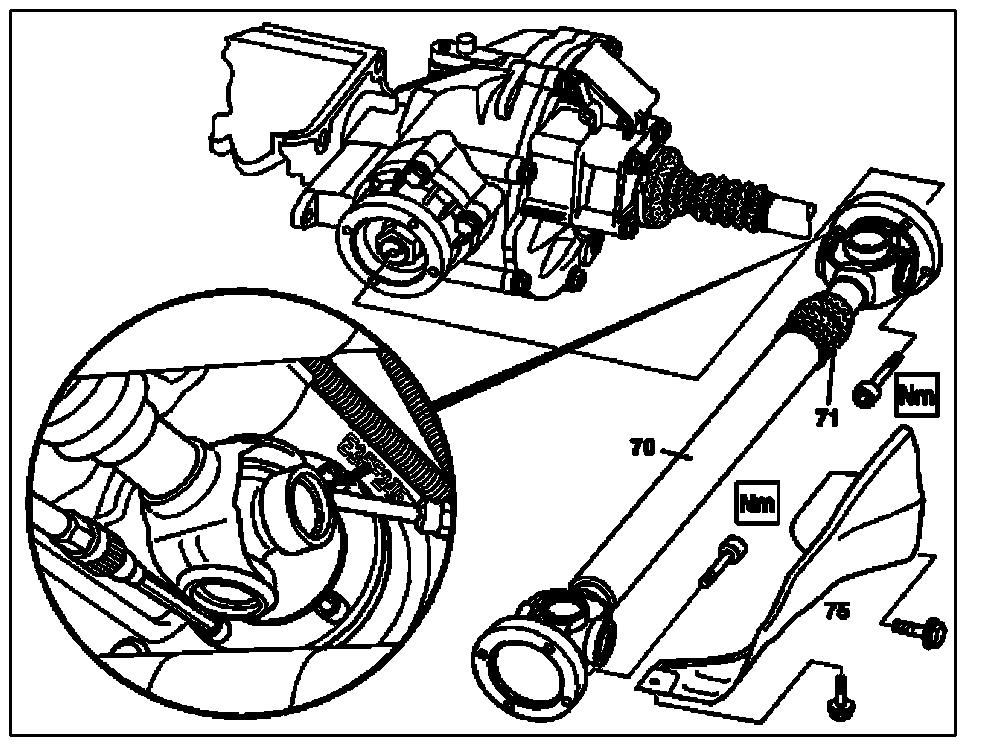

Component Location:
Modification Notes:

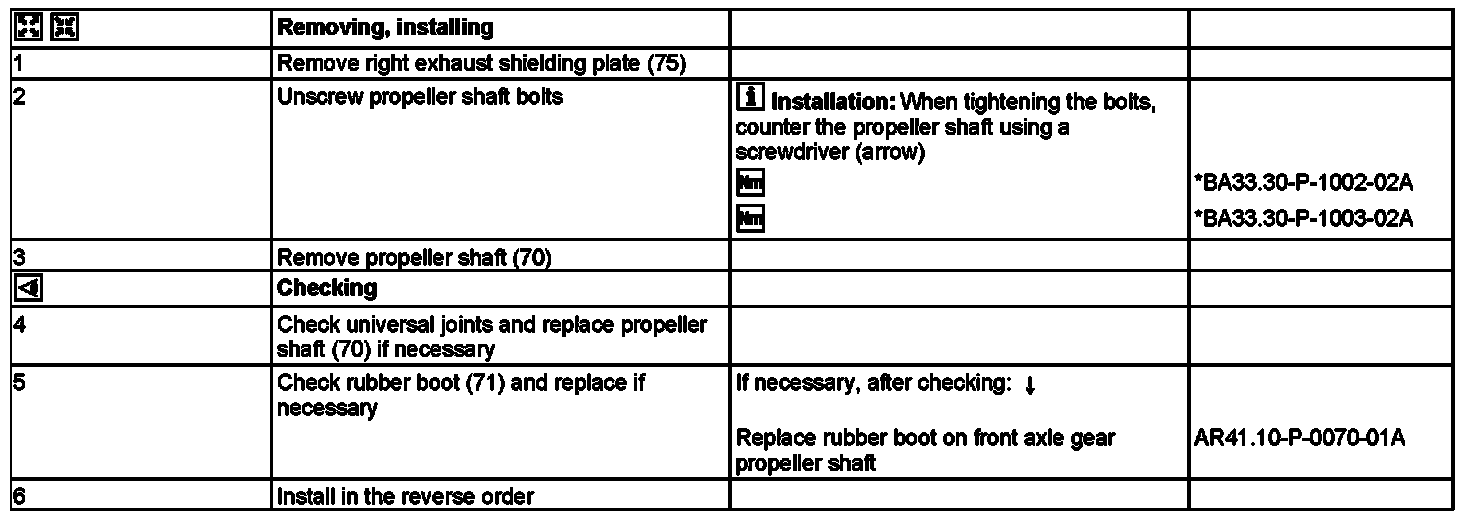

Steps 1 - 6:

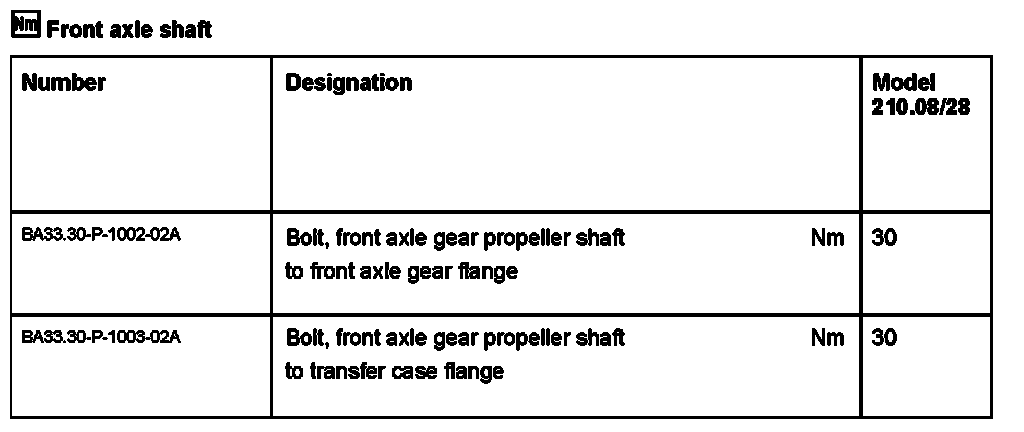

Torque Specifications:
