AR33.20-P-0315D Remove/Install Front Axle Shaft Flange and Angular Ball Bearing

Removal & Installation of Front Axle Flange & Two-Row Angular-Contact Ball Bearing







1. Remove steering knuckle (5). Refer to Steering - Steering Knuckle - Service and Repair - Procedures Service and Repair

2. Press out front axle shaft flange (9)

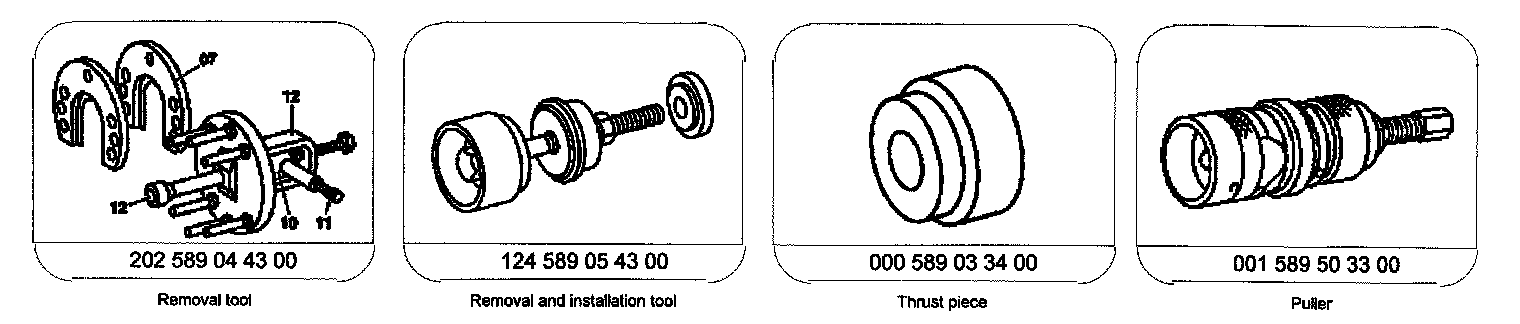

Removal tool 202589044300
Removal and installation tool 124589054300

3. Remove locking ring (9p)

4. Pull out two-row angular-contact ball bearing (9n)

5. If necessary, pull remaining bearing inner race off front axle shaft flange
Thrust piece 000589033400
Puller 001589503300
Clamping pliers 210589003400

6. Install in reverse order

Special Tools








Commercially available tools
Pliers for inner locking ring (85 - 165 mm dia.)
