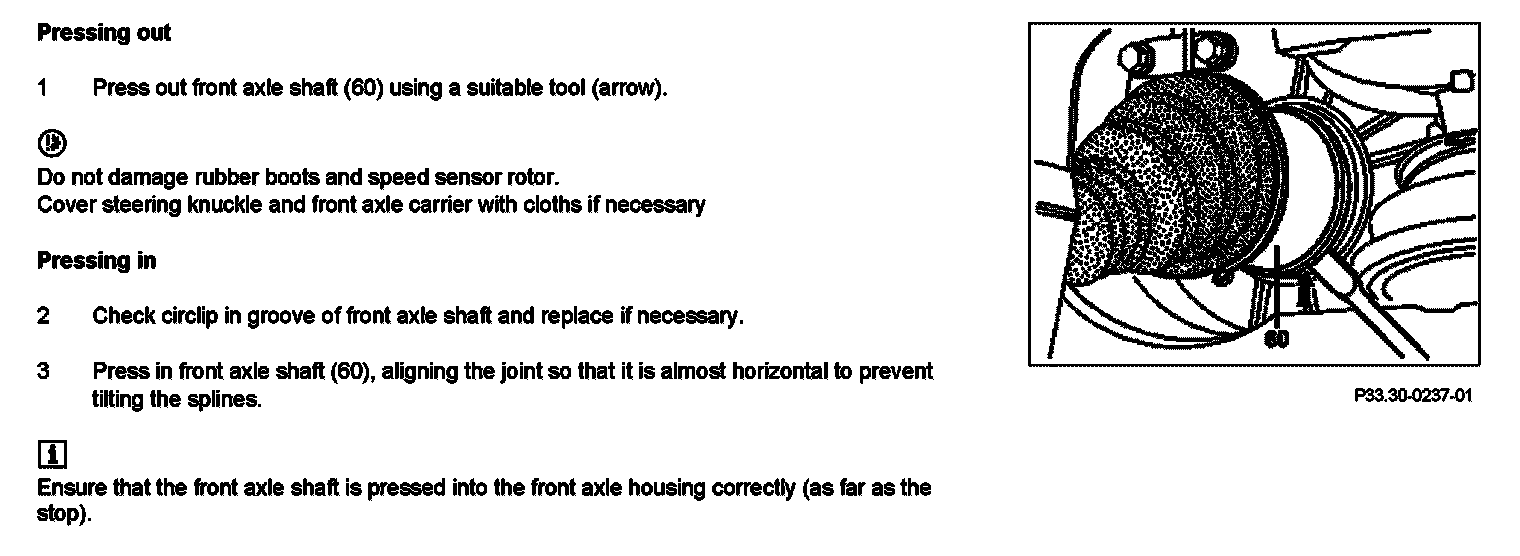

AR33.30-P-0620-02A Driving Out and Pressing In Right Front Axle Shaft
AR33.30-P-0620-02A Driving Out and Pressing In Right Front Axle Shaft
AR33.30-P-0620-02A Driving Out and Pressing In Right Front
Axle Shaft
