AR33.30-P-0440-01D Pressing Out and Installing Supporting Joint at Steering Knuckle

AR33.20-P-0440-01D Pressing out and installing supporting joint at steering knuckle










Pressing out

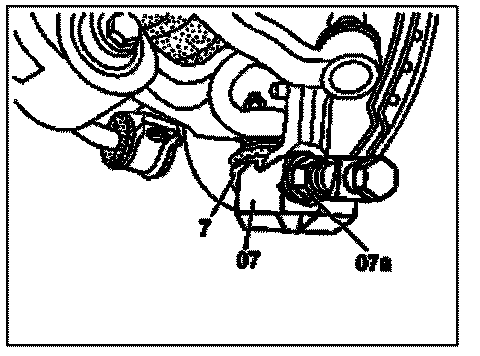

1. Unscrew self-locking nut from supporting joint (7).

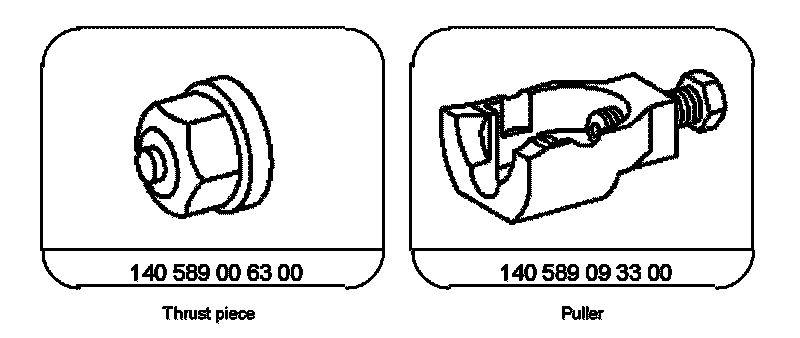

2. Mount thrust piece (07a).
3. Using puller (07), press supporting joint (7) out of steering knuckle.
4. Remove puller.

Installation
5. Clean tapered connection.
6. Replace and tighten self-locking nut.
