Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Control Arm >> Control Arm Bushing >> Service and Repair >> Removal and Replacement >> AR33.20-P-0527D Replace Rear Bearing of Lower Control Arm

AR33.20-P-0527D Replace Rear Bearing of Lower Control Arm



AR33.20-P-0527D Replace rear bearing of lower control arm

Component Identification:




Component Identification:

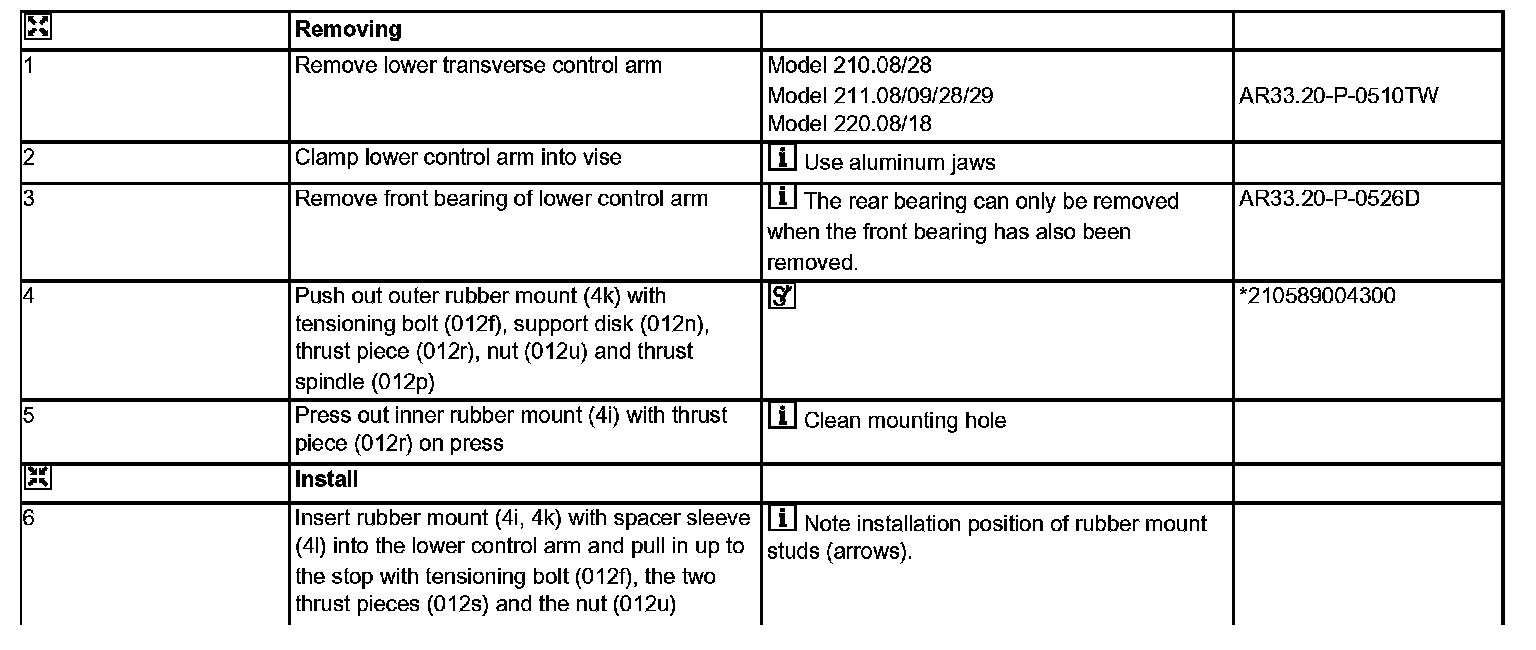

Steps 1-6:

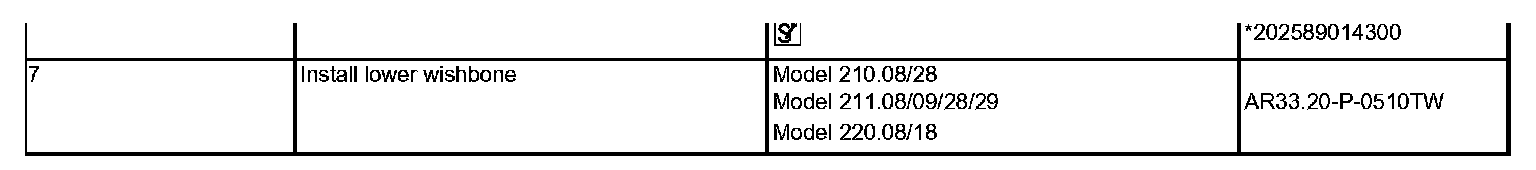

Steps 6 (Continued)-7:




Special Tools:
