Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Control Arm >> Control Arm Bushing >> Service and Repair >> Removal and Replacement >> AR33.20-P-0526D Replace Front Bearing of Lower Control Arm

AR33.20-P-0526D Replace Front Bearing of Lower Control Arm



AR33.20-P-0526D Replace front bearing of lower control arm

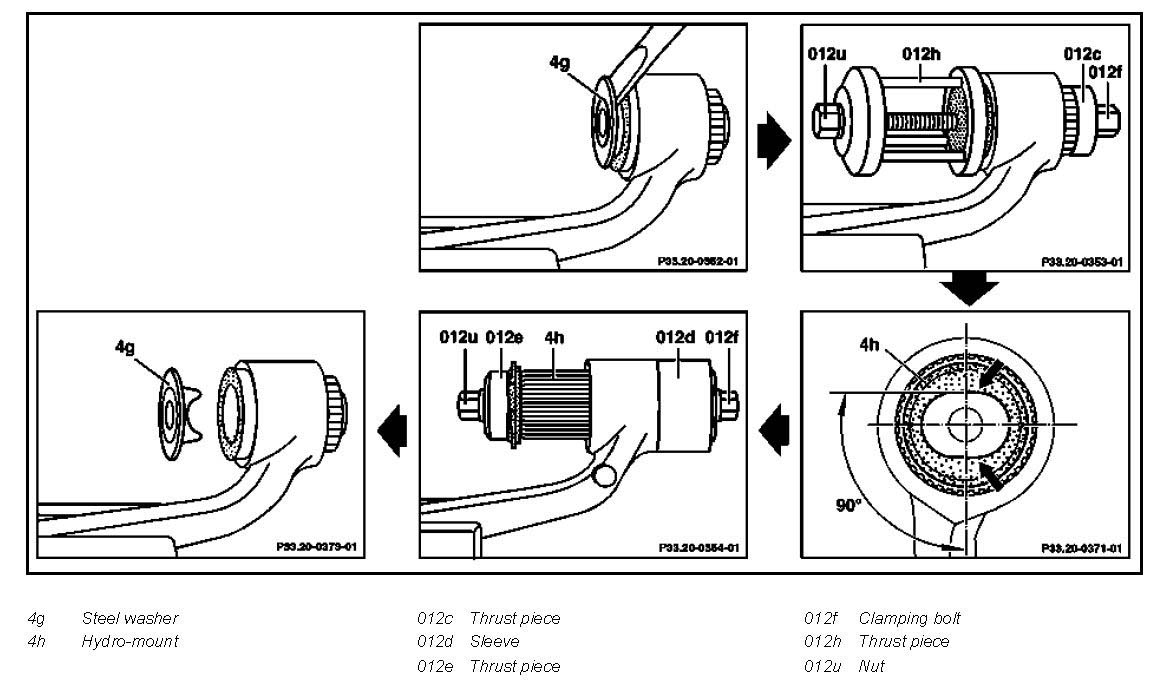

Component Identification:




Steps 1-9:

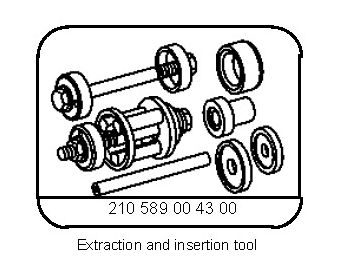

Special Tools:
