With Joint Removed

With Joint Removed






NOTE:
^ With following joint removed
^ Numbers in parentheses ( ) indicate a component or tool in the associated illustration.

Move ball pivot in all directions with a tube approx. 150 mm in length
it should be possible to move the ball pivot without any play and without jamming or creaking noises

If the boot is leaking, replace supporting joint

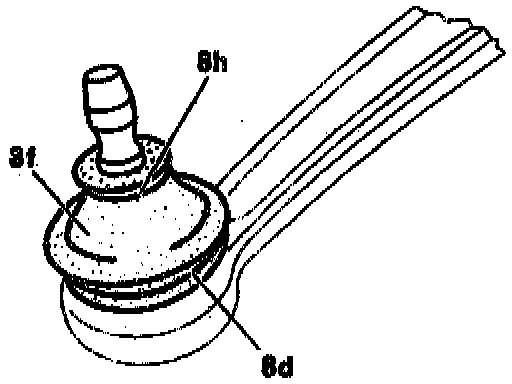

Check boot (7f, 8f) for cracks and damage.
