With Joint Installed






Raise vehicle at the front

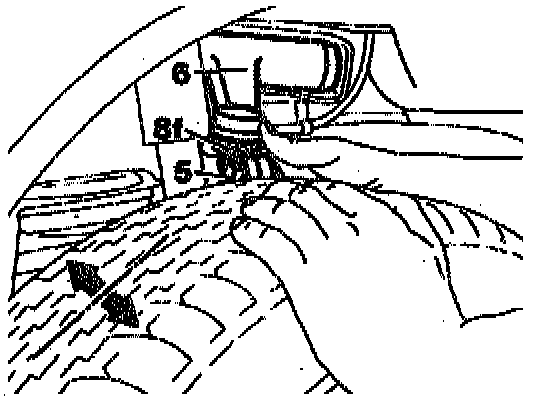

Check boot (8f) for cracks and damage.

Check play in follower joint by pulling and pushing the front wheel firmly while testing the ball joint at the same time

If the findings are negative, replace upper wishbone (6). Service and Repair
