Detaching and Attaching Heat Shield of Steering Coupling

Detaching And Attaching Heat Shield Of Steering Coupling

Steering Shaft:

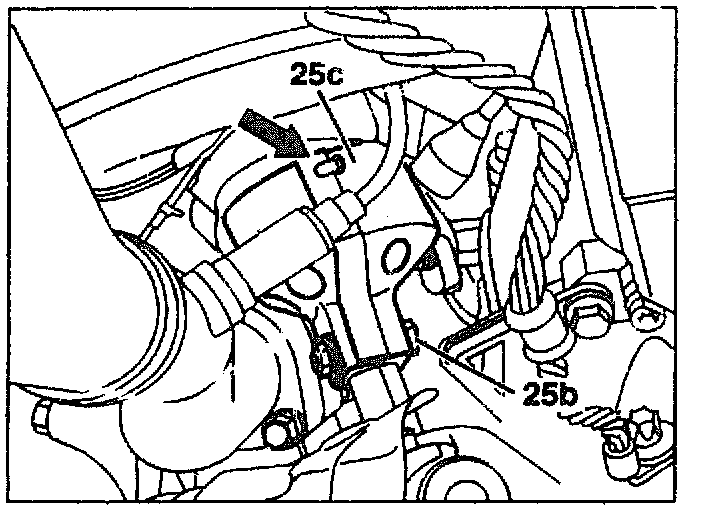

Component Identification, Part 1:

Unscrew bolt (25b) from steering coupling and remove heat shield (25c), opening the upper fastening clips (arrow) on the left and right.


Installation

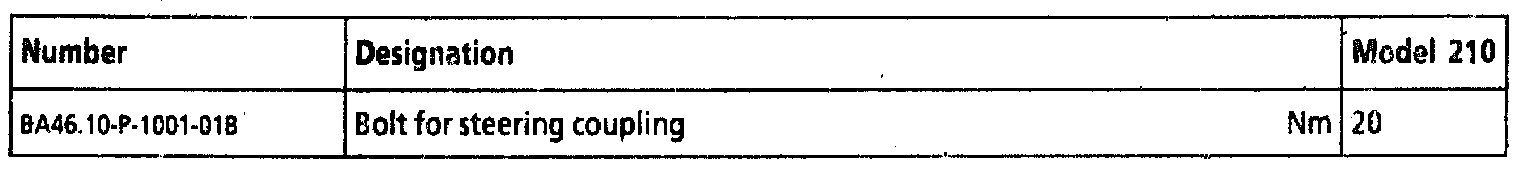

Replace self-locking nut, observe tightening torque.

Component Identification, Part 2:

Models 210.08/28
Detach and attach upper heat shield (arrow) if necessary.
