SPS Function at Speeds Greater Than 62 MPH,

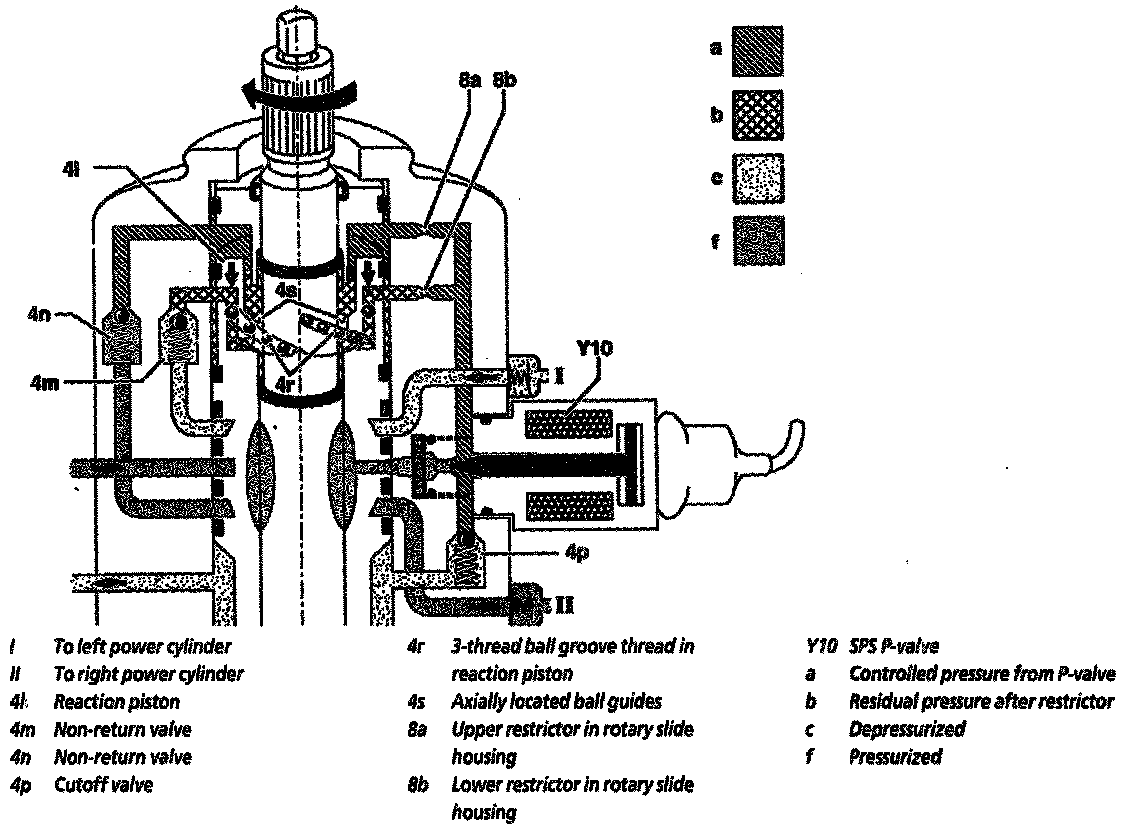

SPS Function at Speeds Greater Than 62 MPH,SPS Operation Speeds Greater Than 62 MPH (Part 1 Of 2):
SPS Operation Speeds Greater Than 62 MPH (Part 2 Of 2):
NOTE:
^ Numbers in parentheses ( ) indicate a component or tool in the associated illustration.
^ To find additional descriptive information available on a steering system, locate the required information on the table above, then click on the selected highlighted box to be taken to the next level of information.
^ Use any highlighted boxes at he next level to find a additional levels of information.
The Speed-sensitive Power Steering (SPS) P-valve (Y 10) is fully open (de-energized). The steering torque at the steering wheel increases corresponding to the load up to a set upper limit which is determined by the cutoff valve (4p).
The steering torque at the steering wheel remains constant after the cutoff valve (4p) has opened.
