SPS Function at 0-62 MPH, Left Turn

SPS Function at 0-62 MPH, Left Turn

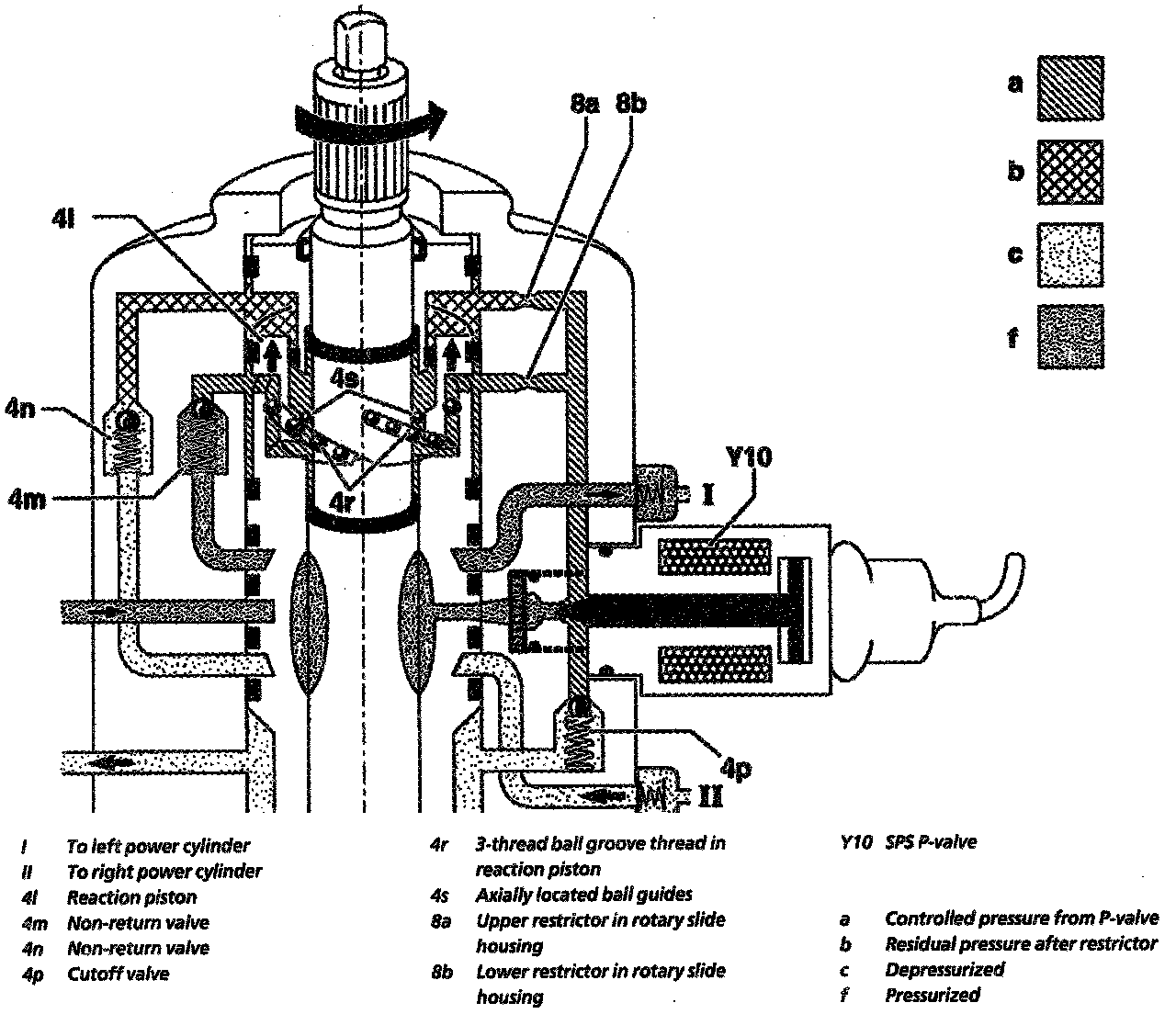

SPS Operation Speeds 0 To 62 MPH Left Turn (Part 1 Of 2):

SPS Operation Speeds 0 To 62 MPH Left Turn (Part 2 Of 2):

NOTE:
^ Numbers in parentheses ( ) indicate a component or tool in the associated illustration.
^ To find additional descriptive information available on a steering system, locate the required information on the table above, then click on the selected highlighted box to be taken to the next level of information.
^ Use any highlighted boxes at he next level to find a additional levels of information.

For left steer angle the non-return valve (4n) is depressurized and the inflowing oil above the reaction piston (4l) can flow back to the reservoir.

The non-return valve (4m) is now pressurized and closed.

As the vehicle speed increases the Speed-sensitive Power Steering (SPS) P-valve (Y10) is increasingly de-energized. As a result more pressure oil is led on both sides of the reaction piston (4l) via the restrictors (8a, 8b), with the one-sided pressurizing on the reaction piston (4l) increasing further. The force on the rotary slide is consequently increased and the driver has to turn the steering wheel with a higher steering torque.
