SPS Electrically Controlled Reaction Functions

SPS Electrically Controlled Reaction Functions

Electrically Controlled Reaction Functions (Part 1 Of 3):

Electrically Controlled Reaction Functions (Part 2 Of 3):

Electrically Controlled Reaction Functions (Part 3 Of 3):

NOTE:
^ Numbers in parentheses ( ) indicate a component or tool in the associated illustration.
^ To find additional descriptive information available on a steering system, locate the required information on the table above, then click on the highlighted box to be taken to the next level of information.
^ Use any highlighted boxes at he next level to find a additional levels of information.

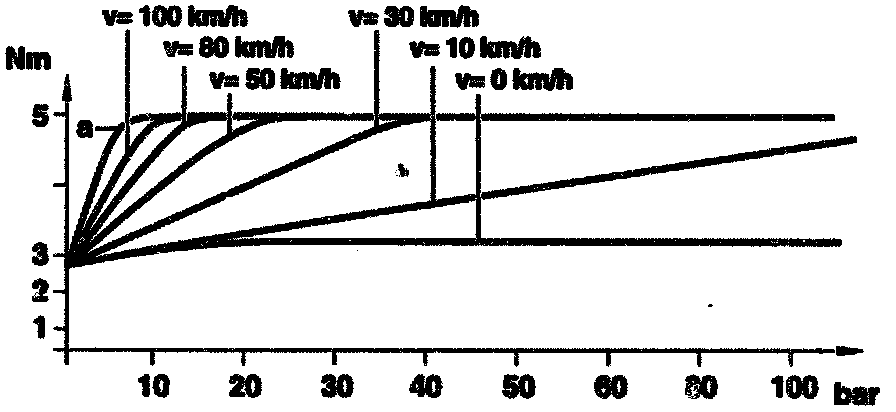

The task of the electronic control of the Speed-sensitive Power Steering (SPS) (integrated in the Electronic Traction System (ETS), Acceleration Slip Regulation (ASR) or Electronic Stability Program (ESP) control module) is to adjust a set hand force (K) at the steering wheel corresponding to the respective vehicle speed.

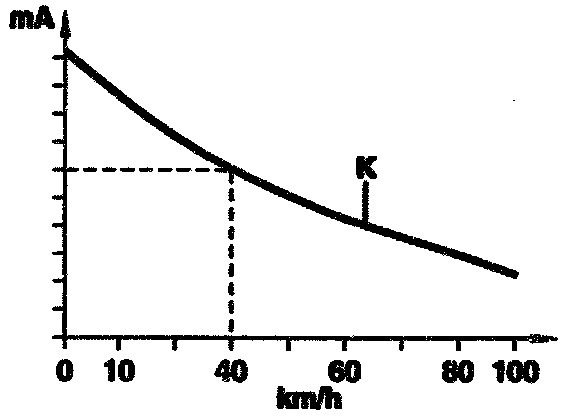

The vehicle speed determined by the ETS, ASR or ESP control module is assigned a specified current in a performance map.

This is then adjusted in the SPS P-valve (proportional solenoid valve) and thus influences the oil flow (hydraulic reaction) within the rack and-pinion steering.

The SPS P-valve is actuated in cycles.

The current control results from the pulse width modulation of this cycling.
