Steering Gear: Application and ID

Identification

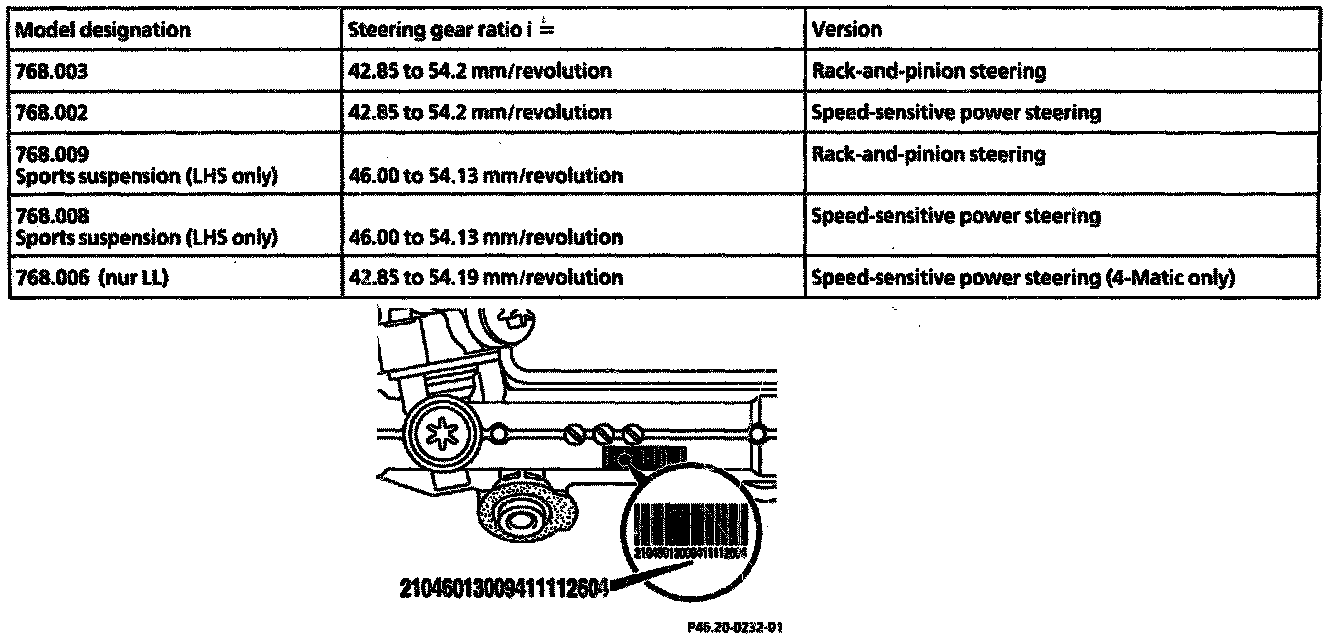

Steering Gear Ratio/Designation (Part 1 Of 2):




Steering Gear Ratio/Designation (Part 1 Of 2):






The rack-and-pinion steering is identified by a plate with bar code (the first 10 digits are the MB part number) attached to the side of the housing.
