With Level Control

IDENTIFICATION
Power Steering Pump

Pressure Supply For Steering And Suspension:

The steering is supplied with pressure via the power steering pump (30). This is driven directly by the engine via a single belt drive.

Manufacturer's identification of power steering pump:
LF 30 = LUK,
FP42 = ZF

Hydraulic Supply Pump

Pressure Supply For Steering And Suspension:

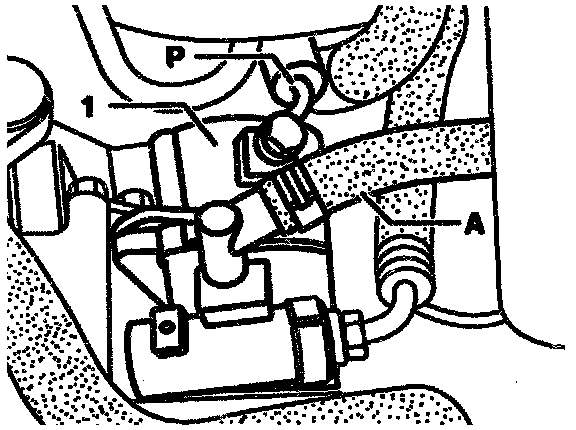

The level control and Adaptive Damping System (ADS) systems are supplied with pressure via the radial-piston pump (1).

This is flange-mounted upstream or downstream of the power steering pump depending on the tandem pump version.

Manufacturer's identification of tandem pump:
LFR30 = LUK
FPR 42 = Zahnradfabrik Friedrichshafen

APPLICATION

Pressure Supply For Steering And Suspension:

NOTE:
^ To find additional descriptive information available on a steering system, locate the required information on the table above, then click on the selected highlighted box to be taken to the next level of information.
^ Use any highlighted boxes at he next level to find a additional levels of information.
