Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Locations >> Component Locations

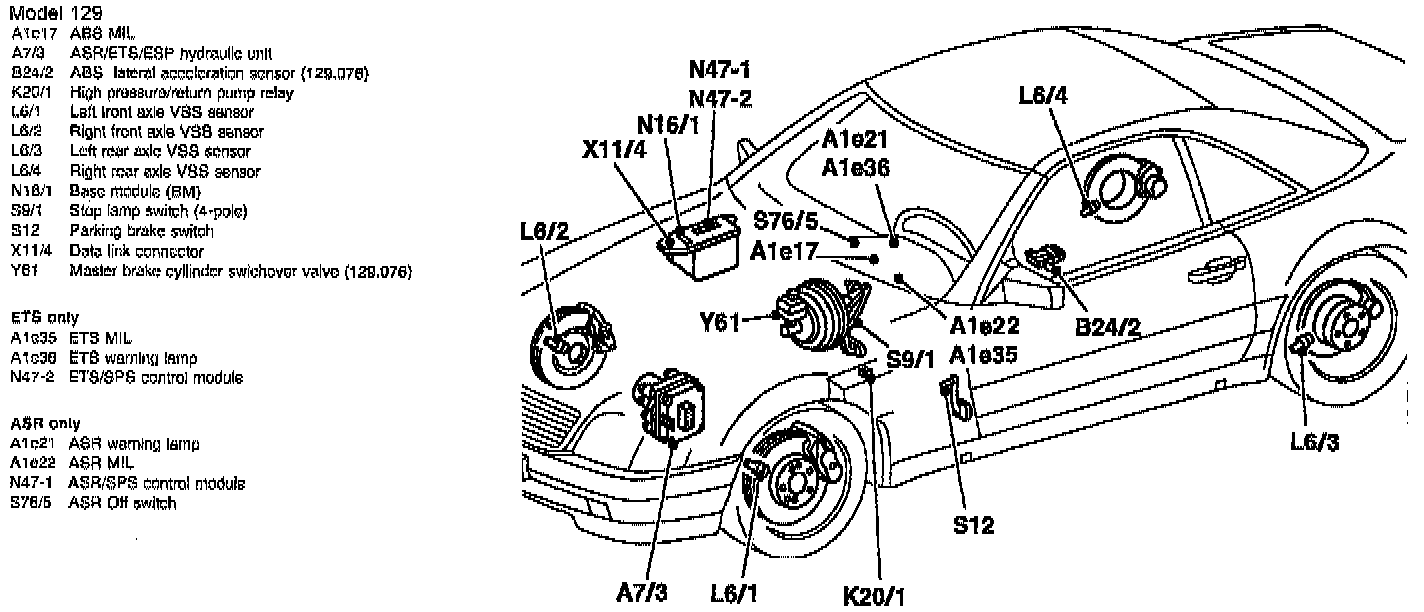

Component Locations





NOTE: 129 model shown for referral purposes only.
