Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Parking Assist Distance Sensor >> Service and Repair >> In Rear Bumper

In Rear Bumper



MODEL 210.0 WITH CODE (220a)

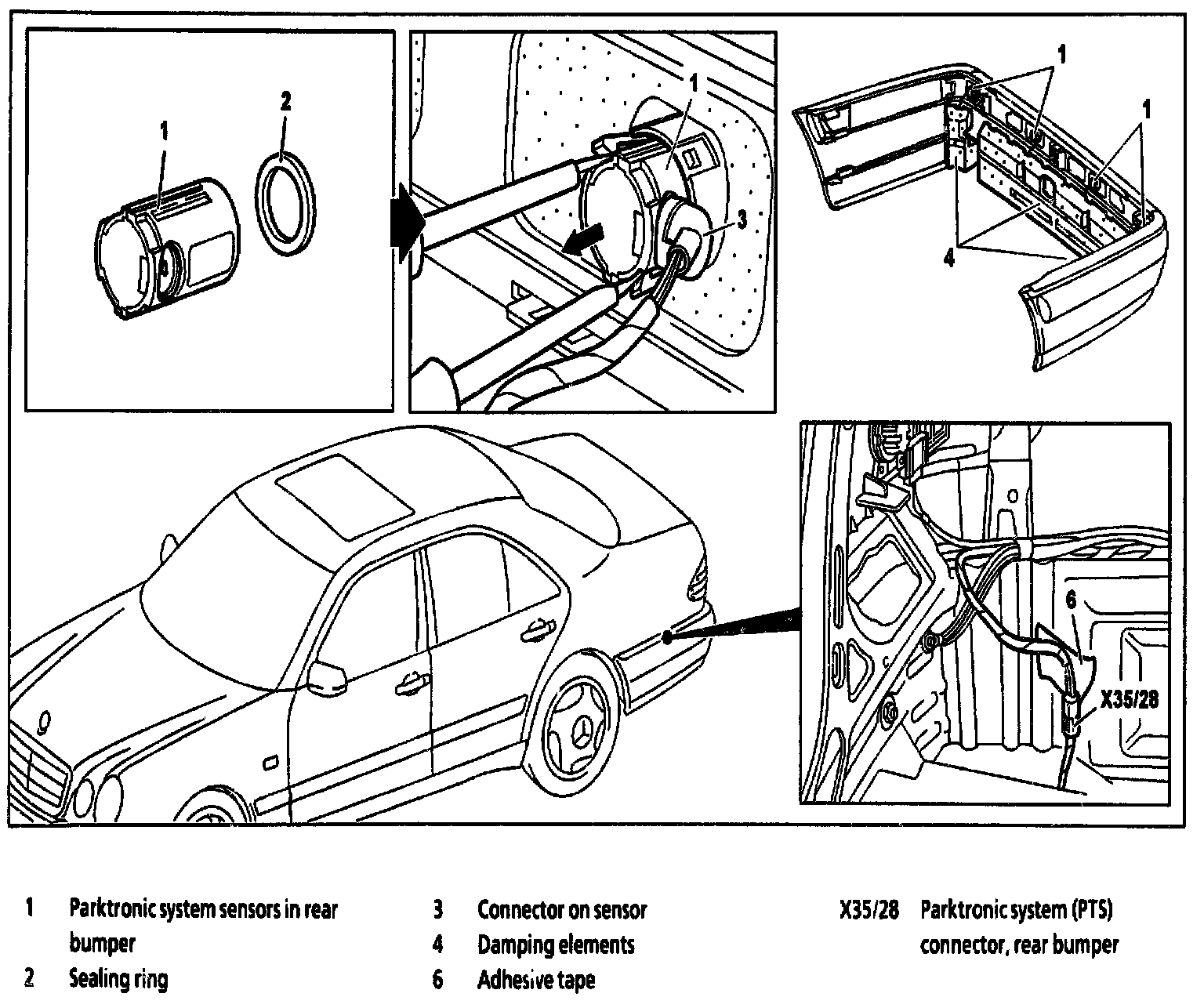

Removing and Installing Parktronic System (PTS) Sensors In Rear Bumper

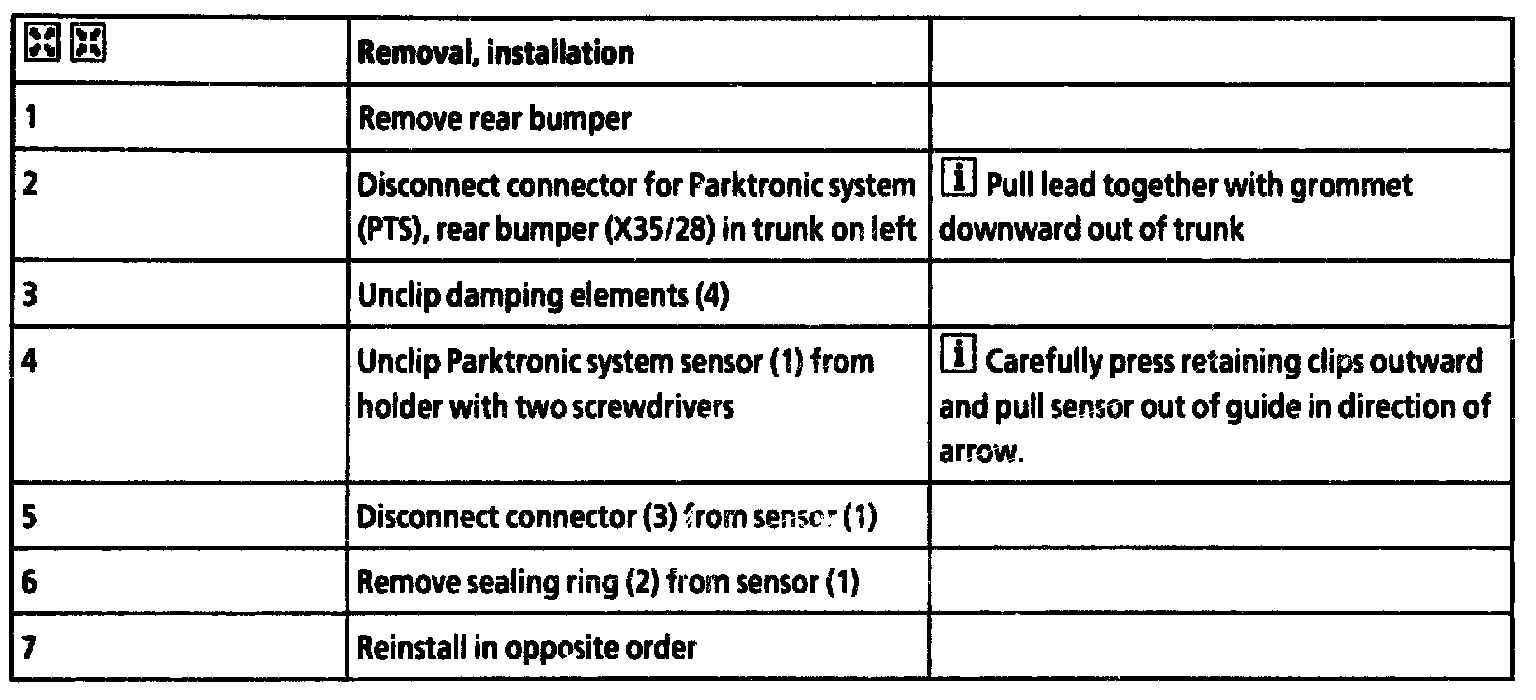

Removal, installation
