SRS Malfunction Indicator Lamp

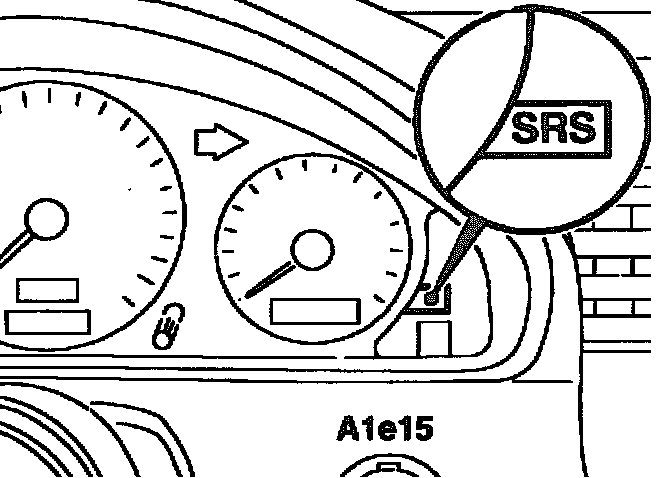

Model 202 Shown:





A1e15 SRS malfunction indicator lamp

The SRS malfunction indicator lamp is located in the instrument cluster (on left or right depending on model).
