AR91.60-P-0693F Remove/Install Window Airbag
AR91.60-P-0693F Remove/Install Window Airbag
AR91.60-P-0693F Removing, Installing Window Airbag
- with CODE (290) Windowbag
Component Identification:

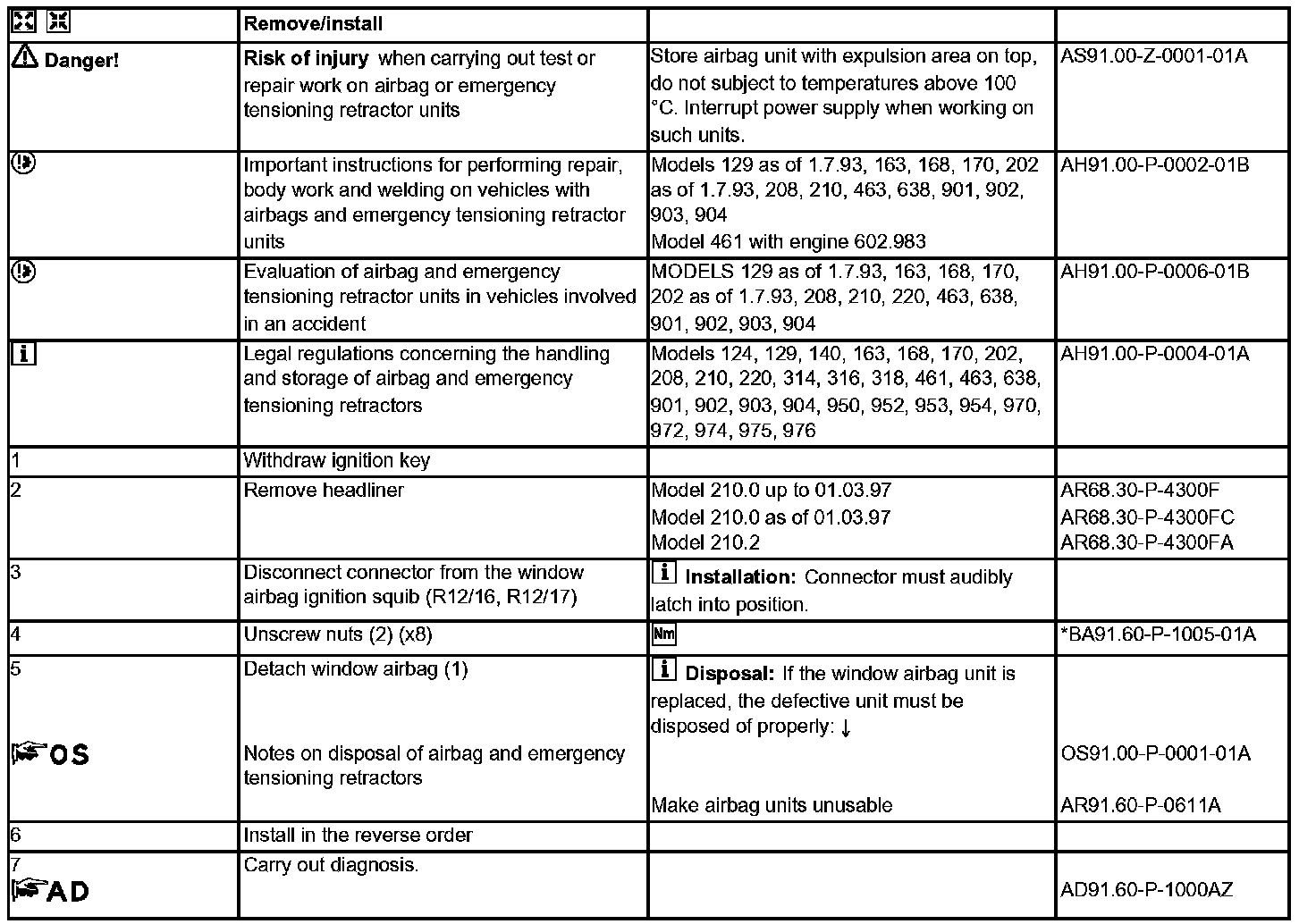

Steps 1 - 7:

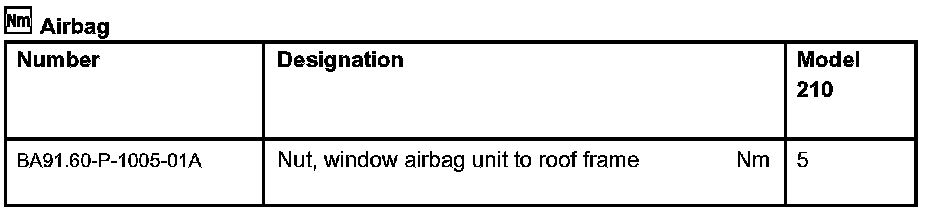

Airbag:
